Diagnosing Cardiovascular Autonomic Neuropathy in Type 2 Diabetic Patients with Subacute ST Elevation Myocardial Infarction

The combination of type 2 diabetes mellitus (DM2) and ST-elevation myocardial infarction (STEMI) on electrocardiogram is a frequent syndrome. 22 to 25% of STEMI patients suffer from DM2 [1, 2]. Diabetic neuropathy including cardiovascular autonomic neuropathy (CAN) is a widespread complication of diabetes mellitus [3]. The incidence rate of CAN in different studies varies from 34 to 90% depending on the applied diagnosis criteria and the category of patients under study [4, 5]. The presence of CAN adversely affects the prognosis for DM2 patients who have suffered myocardial infarction. Their mortality rate is significantly higher [6].

Cardiovascular reflex tests devised by Ewing in 1975 and approved at the conference on diabetic neuropathy held in San-Antonio (1988) are traditionally used to diagnose CAN [7–9]. However, these tests are performed under the condition that patients have no myocardial infarction [10, 11]. In recent years heart rate variability (HRV) has been analyzed to diagnose CAN in diabetic patients. This method offers the possibility to reveal CAN at the pre-clinical stage. The signs of CAN presence are considered to be the following: decline in the spectrum power in all frequency ranges, the absence of low-frequency spectrum component increment when standing up, abnormal decrease in total spectrum power, reduction of length and area of the scatterogram “cloud” [12]. However, such changes in the described tests are also characteristic of patients with myocardial infarction [13–15]. A similar CAN diagnosis problem has also existed in patients with a combination of DM and chronic cardiac failure. Earlier the authors have suggested a criterion for diagnosing CAN in such patients using time-domain HRV analysis and assessment of standard deviation of NN intervals (SDNN). The value of SDNN<33 ms was offered as a criterion of CAN presence [16]. However, patients withmyocardial infarction were not included in the study, therefore the criterion of SDNN<33 ms could not be used for completing our task, namely, diagnosing CAN in DM2 patients with myocardial infarction.

The aim of the investigation was to develop criteria for diagnosing cardiovascular neuropathy in patients with type 2 diabetes mellitus in the subacute stage of ST-elevation myocardial infarction.

Materials and Methods. The study involved 77 individuals including 54 patients with STEMI without previous coronary history. Among them 27 patients suffered from DM2 (group 1), 27 individuals had no carbohydrate metabolism disorders (group 2), while group 3 comprised 23 DM2 patients without cardiovascular pathology. All STEMI patients underwent reperfusion therapy (primary percutaneous coronary intervention, thrombolytic therapy followed by coronary intervention or isolated thrombolytic therapy).

The study was performed on day 10–14 after theonset of STEMI symptoms. The study complies with the Declaration of Helsinki (adopted in June 1964 (Helsinki, Finland) and revised in October 2000 (Edinburgh, Scotland)) and was performed following approval by the Ethics Committee of Nizhny Novgorod State Medical Academy. Written informed consent was obtained from every patient.

The patients in the groups did not differ in age and sex. Groups 1 and 2 had no significant differences in the localization of myocardial infarction, reperfusion therapy methods, the maximum recorded troponin level, cardiac failure severity, values of left ventricular ejection fraction. All patients of groups 1 and 2 received standard therapy for myocardial infarction: reperfusion therapy, antithrombotic drugs, statins, angiotensin-converting enzyme inhibitors, beta-blockers (Table 1).

---

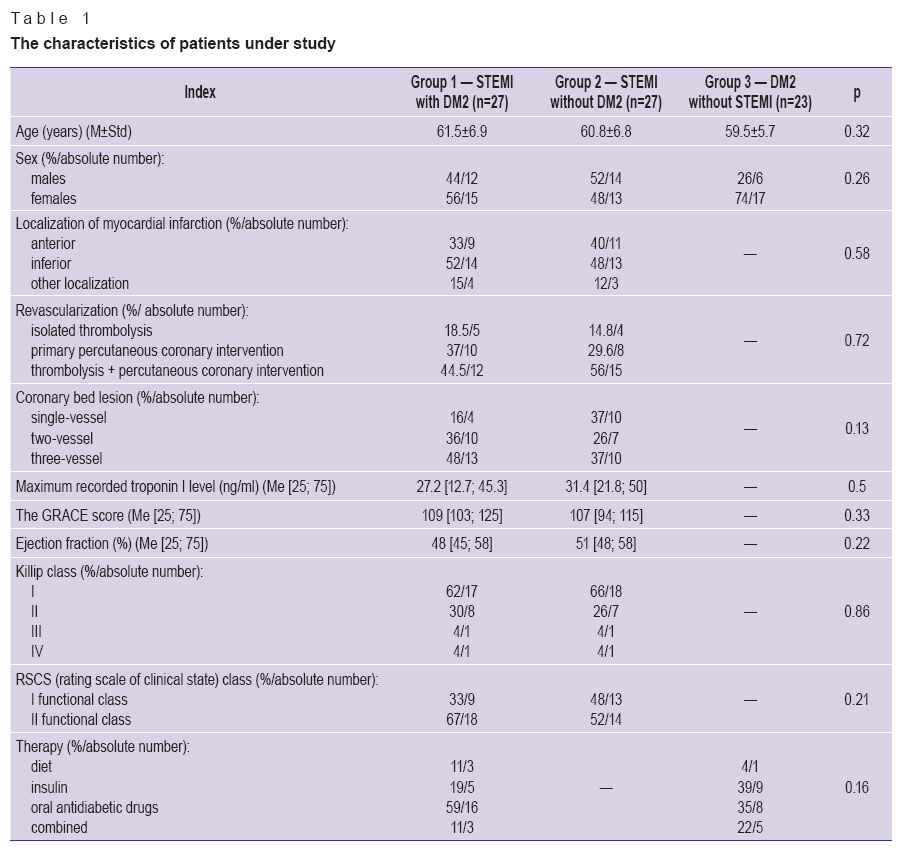

Table 1. The characteristics of patients under study

---

The study included no patients with recurrent myocardial infarction, non-ST-elevation myocardial infarction on electrocardiogram, those who did not undergo reperfusion treatment (systemic thrombolysis, percutaneous coronary intervention), patients with atrial fibrillation and persons above 75 years of age.Past medical history of all patients was taken, and physical examination carried out.

Myocardial infarction characteristics were analyzed using several parameters. The extent of cardiac injury was assessed by the value of maximum recorded troponin level, prognostic infarction characteristics were estimated by GRACE score, Killip classification was used to identify cardiac failure severity. On day 10–14 after STEMI development all patients underwent five Ewing’s cardiovascular reflex tests (heart rate changes with deep slow breathing, Valsava test, Schellong postural test, 30:15 test, isometric exercise test). When assessing the results, the criteria suggested by Ewing [5] in Vinik’s modification [17] were used. Each test was assessed as 0 scores, if indexes were normal, 1 score was given for borderline indexes, 2 scores for pathological indexes.

HRV was studied using Polyspectrum-Rhythm device (Neurosoft, Russia). The following indexes were calculated: SDNN — standard deviation of NN intervals, total spectrum power and scatterogram values: the length of the “cloud”, its width and area.

The data were statistically processed using Statistica 8.0 software package (StatSoft Inc., USA).

Results and Discussion. When analyzing cardiovascular reflex tests and time-domain HRV analysis the signs of damage to autonomic nervous system were revealed in the groups of patients with subacute myocardial infarction irrespective of diabetes mellitus presence, there was no statistically significant difference between the groups. At the same time HRV assessment by correlational rhythmography method (Poincaré plot) showed significantly lower indexes in patients with a combination of diabetes mellitus and subacute myocardial infarction (Table 2). This fact can be interpreted by CAN present in a number of patients from this group.

---

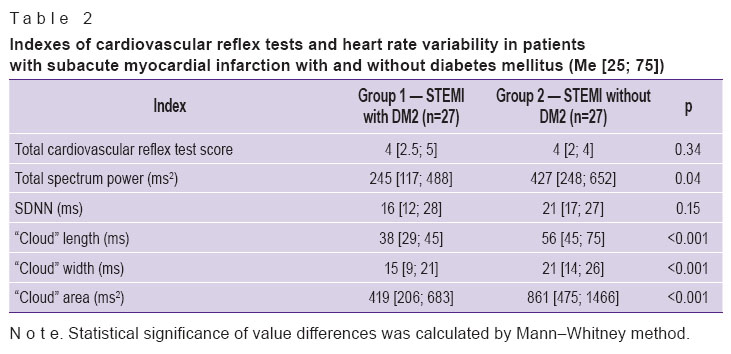

Table 2. Indexes of cardiovascular reflex tests and heart rate variability in patients with subacute myocardial infarction with and without diabetes mellitus (Ме [25; 75])

---

Among HRV parameters the scatterogram “cloud” area index demonstrated the greatest relative difference in the groups, therefore it was decided to use this parameter while developing CAN diagnosis criteria. For this purpose further investigation was carried out only in group 1 (STEMI with DM2).

Cluster analysis was performed according to the results of the parameter characterizing the extent of myocardial injury (the maximum recorded troponin level) and HRV index (the scatterogram “cloud” area). This group appeared to be heterogeneous: there were identified two clusters with no significant differences in myocardial injury index, yet HRV parameters were significantly different. Thus, in cluster 1 (18 patients), the “cloud” area median amounted to 358 ms² (interquartile range was 185–419, the minimum — 53, the maximum — 460), in cluster 2 (9 individuals), the median was 746 ms² (interquartile range 680–812; the minimum — 574, the maximum — 1,500); p<0.001. Significance of differences was calculated using Mann–Whitney method (Figure 1).

---

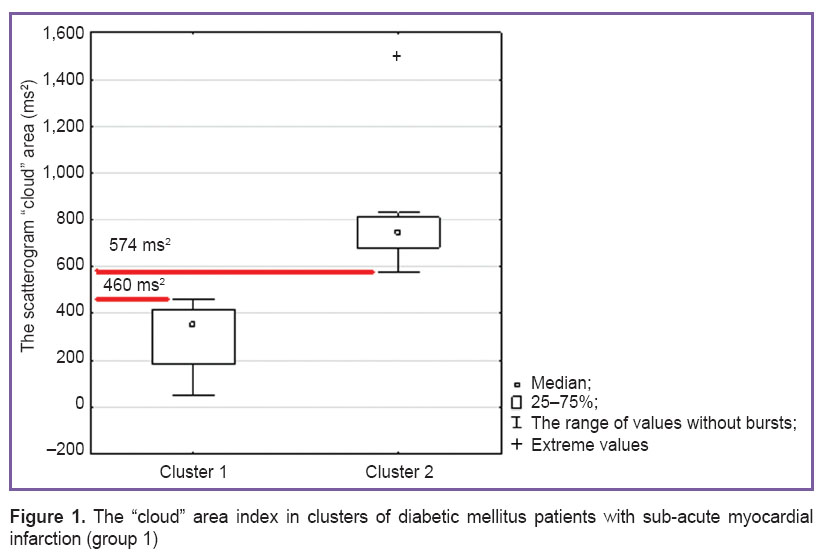

Figure 1. The “cloud” area index in clusters of diabetic mellitus patients with sub-acute myocardial infarction (group 1)

---

Heterogeneity revealed in the group of patients with STEMI and DM2 cannot be caused by STEMI severity as there were no significant differences in STEMI characteristics between the clusters (Table 3).

---

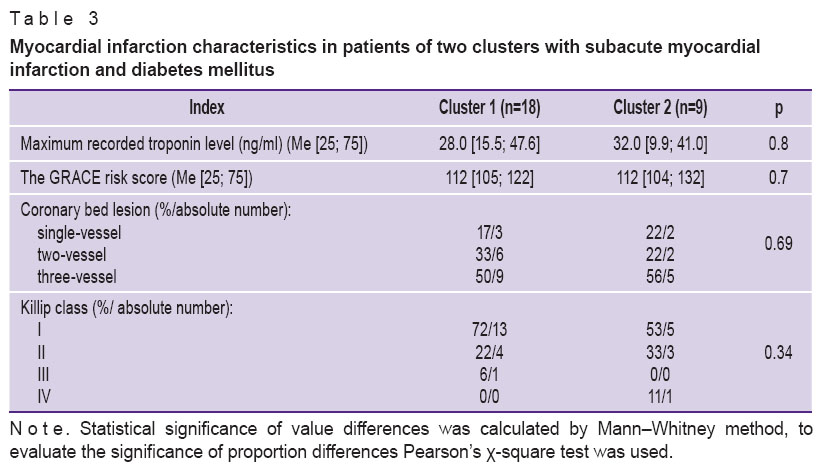

Table 3. Myocardial infarction characteristics in patients of two clusters with subacute myocardial infarction and diabetes mellitus

---

It can be suggested that the difference in HRV indexes between the clusters is caused by the effect of CAN presence in patients of cluster 1. In this case the reference value of the “cloud” area for diagnosing CAN in patients with sub-acute MI ranges from 460 to 574 ms² (the maximal level in patients of cluster 1 and the minimal one in those from cluster 2).

To choose the accurate criterion for CAN diagnosis (by correlation rhythmography parameters) we used ROC-curve analysis — true-positive (sensitivity) and false-positive level (1 – specificity) diagram. ROC-curve analysis allows us to differentiate disease from the norm [18].

For this purpose in patients of group 3 (those without limitations to undergo cardiovascular reflex tests) CAN diagnosis was first made according to cardiovascular test results (the gold standard) using Ewing and Vinik’s criteria [15]. Then the results were compared to the studied test (determining the scatterogram “cloud” area).

As a result of ROC curve analysis there was obtained a criterion having the optimal ratio of sensitivity and specificity as compared to the gold standard of CAN diagnosis: the “cloud” area, S≤571 ms² (Figure 2).

---

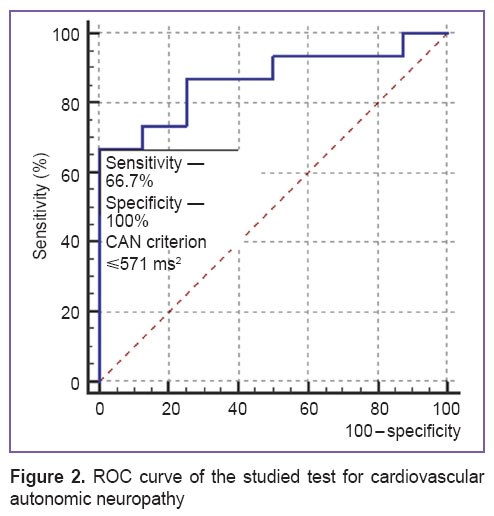

Figure 2. ROC curve of the studied test for cardiovascular autonomic neuropathy

---

To obtain the numeric value of clinical significance of the test the area under the ROC curve was calculated which amounted to 0.867 [0.661–0.971], p<0.001. According to the expert value scale, this value corresponded to a very good quality of the suggested criterion.

The index value of S≤571 ms² obtained in the cohort of diabetic patients without cardiovascular pathology and verified by cardiovascular tests pertains to the range of reference values for diagnosing CAN (460–574 ms²) identified by cluster analysis in group 1 (See Figure 1). Thus, the value of S≤571 ms² can be considered a criterion for diagnosing cardiovascular autonomic neuropathy in DM2 patients with sub-acute myocardial infarction.

Conclusion. To diagnose cardiovascular neuropathy in patients with type 2 diabetes mellitus and the subacute phase of ST-elevation myocardial infarction on electrocardiogram it is preferable to study heart rate variability byvariation scatterogram method. A criterion for diabetic cardiovascular neuropathy presence is the scattergram “cloud” area value S≤571 ms². This criterion can be used to diagnose the disease in the population of type 2 diabetic patients with subacute myocardial infarction.

Study Funding and Conflicts of Interest. This study was not supported by any financial sources, and there is no conflicts of interest associated with this study.
