Contrast Enhancement of Cross-Polarization OCT Images of Breast Cancer by Optical Coefficient Calculation

Introduction

Breast cancer (BC) is one of the most common carcinomas (over a million of new cases are recorded every year) and the third leading cause of death among women (over 500 thousand deaths are registered every year) worldwide [1, 2]. In Russia, BC ranks first in morbidity rate (21.1%) and mortality rate (16.4%) among malignancies in women [3]. BC is a genetically heterogeneous disease with various biomolecular and morphological characteristics [4], which enable to distinguish a number of disease subtypes; their early detection is essential when choosing the management and therapy for BC patients. Infiltrating ductal carcinoma (IDC) is the most common BC subtype (up to 75% of all cases) [5].

Morphological/molecular BC subtype is established in histological/immunohistological and genetic study of biopsy and operative specimens and has no alternative intra-operative assessment method. The development and application of in vivo high-resolution imaging techniques compatible with a morphological investigation can improve the quality of early and intra-operative BC diagnostics.

Rapidly developing diagnostic techniques and advances in BC therapy promote that sparing operations are increasingly frequently given preference in surgery. Therefore, there is a growing clinical demand for intra-operative reveal of “clean” surgical margin in lumpectomy (local tumor incision with a small healthy surrounding tissue area). The remains of the tumor sites increase the probability of local recurrence development that will require reoperation or radiotherapy [6, 7].

Current BC imaging techniques such as ultrasound, mammography, positron emission tomography, and magnetic resonance tomography can detect a tumor node size, and provide general morphological information [8–10]. However, the low spatial resolution fails to detect lesion less than 1 mm in size and record in vivo negative surgical margin. In addition, some morphological BC subtypes (such as carcinoma in situ and tumors with fibrous stroma) are difficult to image [11]. Currently, there are several available methods used to assess a surgical margin, however, all of them have some limitations. For example, widely used conventional microscopic methods such as express biopsy and cytologic screening of imprint smears have their errors and difficulties due to insufficient sampling, technical problems occurring when working with adipose tissue and additional time needed for investigation [12].

Optical coherence tomography (OCT) is a three-dimensional promising technique of optical imaging, its resolution being up to micrometer units, to differentiate healthy tissue, benign and malignant tumor tissue including BC [13, 14], as well as to determine a precise intra-operative “clean” surgical margin in real-time mode [15–17]. For automated differentiation of healthy breast tissue from tumor tissue using conventional (non-polarization-sensitive) OCT we used and calculated optical refraction, dispersion, and attenuation coefficients [17, 18]. Heterogeneous distribution of high and low values of backscattering coefficient was found to be the characteristic for adipose tissue, which consists of “empty” lipid-filled cells and nuclei on the periphery. Mean values of a scattering coefficient and low values of an attenuation coefficient are typical for connective tissue. A high scattering coefficient with a high attenuation is characteristic for tumor tissue, since tumor cells are densely spaced making tissue be poorly permeable to light [17, 19]. Nevertheless, less dense invasive tumors can be difficult to distinguish from healthy connective tissue due to similar optical refraction and scattering intensity indices [20, 21].

To enhance contrast imaging that can promote differential diagnostics of healthy and tumor breast tissue, to be used in clinical settings, we used OCT systems, which enable to obtain polarization-dependent [22, 23] and elastographic [24–26] information estimating, correspondingly, optical double refraction and elasticity of biological tissues. Using the systems, normal breast stroma was found to have significantly higher double refraction index compared to tumor stroma due to characteristic structure of the last one (the presence of degenerative changes of collagen fibers, their changed spatial orientation) [22]. Optical coherence elastography was demonstrated to have high application potential to detect the contrast between malignant and healthy breast tissues based on tissue compression deformability analysis [25, 26].

Collagen fibers comprise the base of healthy breast tissue stroma. Fiber condition (physical parameters) changes in BC. Different BC subtypes being characterized by specific structure of connective tissue and its certain ratio with tumor cells. Currently, all clinically used in vivo imaging techniques cannot give high-resolution evidence of breast connective tissue. The common structural OCT images of infiltrating BC subtypes of a solid structure are difficult to differentiate from infiltrating masses with fibrous or hyalinized stroma due to a similar high backscattering coefficient. Detection of cross-polarization properties of collagen fibers using real-time cross-polarization OCT (CP OCT) in solid and sclerosing BC subtypes will enable both to detect tumors and determine its subtype. Moreover, the criteria for quantitative OCT signal assessment to both differentiate BC subtypes and to real-time intra-operatively determine “clean” surgical margin have not been established yet.

The aim of the present study was to develop the techniques to enhance the contrast of CP OCT image of BC by calculating optical attenuation coefficients of the signal to differentiate cancer subtypes and analyze tumor stroma polarization properties.

Materials and Methods

Ex vivo breast tissue samples (n=75) obtained in radical mastectomy in 52 patients aged 38–77 years were investigated by CP OCT. The study was approved by the Ethics Committee of Privolzhsky Research Medical University. The samples were delivered in phosphate buffer-wet gauze, at 7°C, and were studied within 1–2 h after sampling.

Cross-polarization OCT system. A high-speed spectral 3D OCT system (Federal Research Center Institute of Applied Physics, Russian Academy of Sciences, Nizhny Novgorod) was applied in the study.

The OCT setup characterised by central wavelength 1310 nm and spectral width of 100 nm. Radiation power is 2 mW, resulting in axial resolution of 15 µm, lateral resolution is 20 μm, scanning depth in the air is 1.7 mm. Scanning speed is 20 kHz/s, 3D-image 2.4×2.4×1.25 mm in size was recorded within 26 s. CP OCT setup was equipped with an end optical fiber probe, its outer objective diameter being 10 mm, which was led to the studied tissue.

The OCT records simultaneously two conjugated images: in co- and cross-polarization channels [27]. The cross-polarization channel provides evident advantages for connective tissue study (in particular, collagen fibers, since some studies [28, 29] show that they have polarization properties).

The present study demonstrates CP OCT images as en face 2D images in co- and cross-polarization channels.

Morphological analysis. All tissue samples were histologically studied after CP OCT-scanning. Serial histological sections were made in the same orientation with CP OCT images. Serial sections both hematoxylin and eosin (H&E) and Van-Gieson’s were stained to determine breast cancer subtype and collagen fibers content, respectively.

All tissue samples were divided by a pathologist into 3 groups according to the morphological diagnosis and tumor structure characteristics [30]: non-tumor breast tissue (n=14); infiltrative nonspecific (ductal) carcinoma: solid (n=17) and sclerosing structures (n=44). Totally, there were obtained and studied 150 pairs of CP OCT and histological images.

Quantitative analysis of en face CP OCT images. Quantitative analysis of scattering and polarization properties of tissue samples was performed by 3D OCT data. Each 3D OCT image contains 256×256 А-scans and presents OCT signal depth attenuation profile in each polarization. Attenuation coefficient of light was calculated by А-scans in co- and cross-channels.

For quantitative analysis of scattering tissue properties, an attenuation coefficient (coefficient 1) was used. It indicates photon attenuation rate in a co-channel, which can be caused by various reasons, such as absorption, side scattering or cross-polarization scattering. The method of the coefficient calculation reported in the paper [31].

To describe polarization properties a difference attenuation coefficient (coefficient 2) was used. It demonstrates the difference in photon scattering and absorption in tissues in co- and cross-polarization channels.

The consideration of the above-mentioned processes, the change of scanning beam intensity with depth z can be presented as follows

where I_co, I_cross — a signal in co- and cross-channels, respectively; u, u–u_D are the attenuation coefficients in corresponding channels.

Figures 1 (e), 2 (e), 3(e) show the examples of random А-scans from 3D data set in co- (blue color) and cross-channels (orange color) and demonstrate significant difference in OCT signal attenuation rate. A black dotted rectangle on А-scans indicates depth range (80–720 µm), where optical coefficients were calculated.

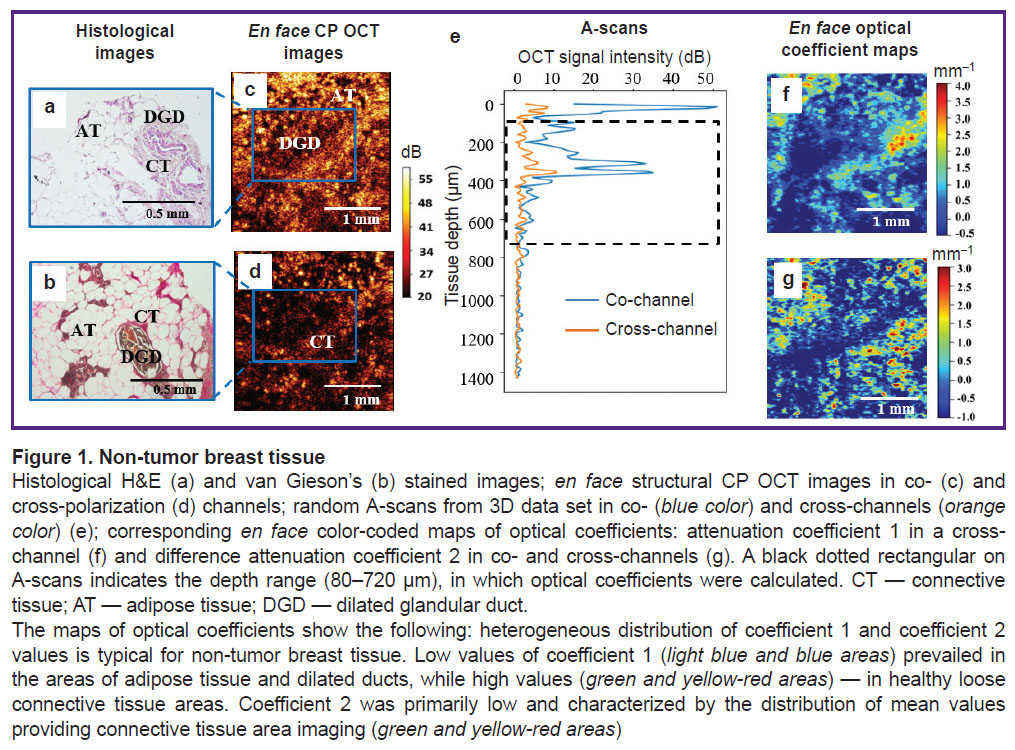

Figure 1. Non-tumor breast tissue Histological H&E (а) and van Gieson’s (b) stained images; еn face structural CP OCT images in co- (c) and cross-polarization (d) channels; random А-scans from 3D data set in co- (blue color) and cross-channels (orange color) (e); corresponding en face color-coded maps of optical coefficients: attenuation coefficient 1 in a cross-channel (f) and difference attenuation coefficient 2 in co- and cross-channels (g). A black dotted rectangular on А-scans indicates the depth range (80–720 µm), in which optical coefficients were calculated. CT — connective tissue; AT — adipose tissue; DGD — dilated glandular duct. The maps of optical coefficients show the following: heterogeneous distribution of coefficient 1 and coefficient 2 values is typical for non-tumor breast tissue. Low values of coefficient 1 (light blue and blue areas) prevailed in the areas of adipose tissue and dilated ducts, while high values (green and yellow-red areas) — in healthy loose connective tissue areas. Coefficient 2 was primarily low and characterized by the distribution of mean values providing connective tissue area imaging (green and yellow-red areas)

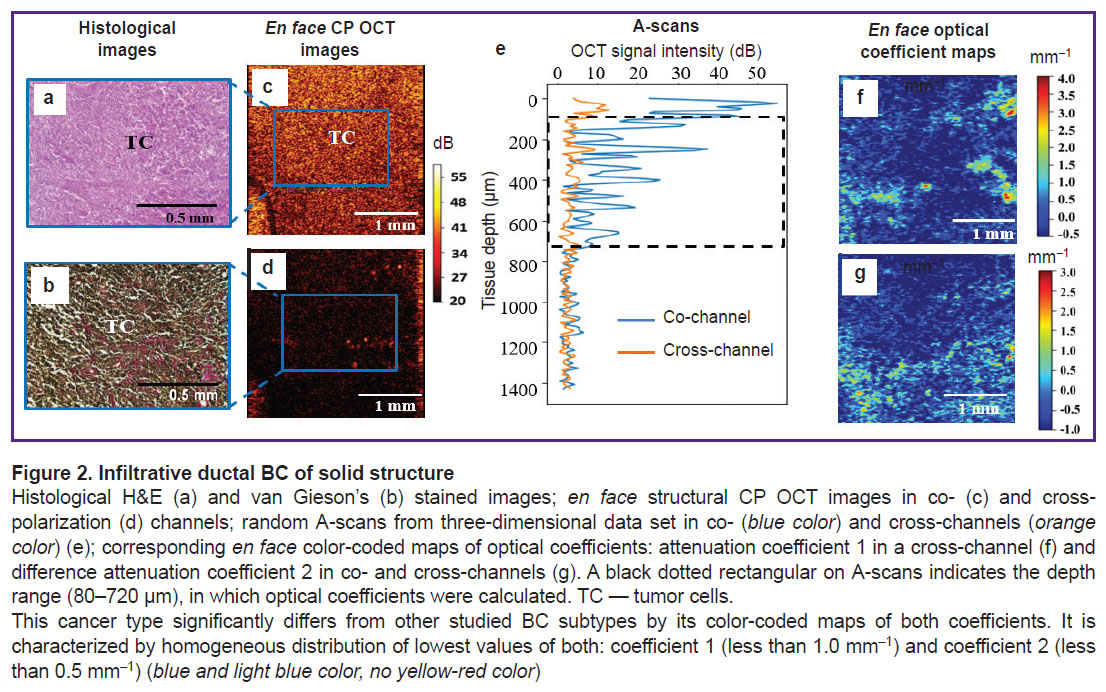

Figure 2. Infiltrative ductal BC of solid structure Histological H&E (а) and van Gieson’s (b) stained images; еn face structural CP OCT images in co- (c) and cross-polarization (d) channels; random А-scans from three-dimensional data set in co- (blue color) and cross-channels (orange color) (e); corresponding en face color-coded maps of optical coefficients: attenuation coefficient 1 in a cross-channel (f) and difference attenuation coefficient 2 in co- and cross-channels (g). A black dotted rectangular on А-scans indicates the depth range (80–720 µm), in which optical coefficients were calculated. TC — tumor cells. This cancer type significantly differs from other studied BC subtypes by its color-coded maps of both coefficients. It is characterized by homogeneous distribution of lowest values of both: coefficient 1 (less than 1.0 mm–1) and coefficient 2 (less than 0.5 mm–1) (blue and light blue color, no yellow-red color)

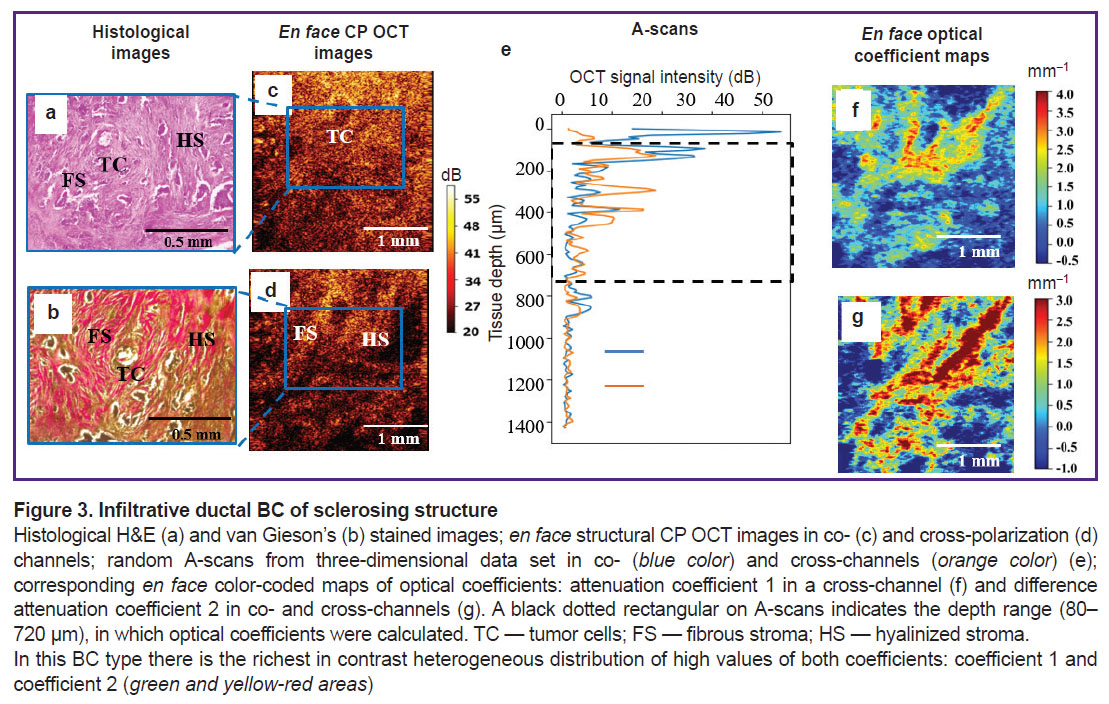

Figure 3. Infiltrative ductal BC of sclerosing structure Histological H&E (а) and van Gieson’s (b) stained images; еn face structural CP OCT images in co- (c) and cross-polarization (d) channels; random А-scans from three-dimensional data set in co- (blue color) and cross-channels (orange color) (e); corresponding en face color-coded maps of optical coefficients: attenuation coefficient 1 in a cross-channel (f) and difference attenuation coefficient 2 in co- and cross-channels (g). A black dotted rectangular on А-scans indicates the depth range (80–720 µm), in which optical coefficients were calculated. TC — tumor cells; FS — fibrous stroma; HS — hyalinized stroma. In this BC type there is the richest in contrast heterogeneous distribution of high values of both coefficients: coefficient 1 and coefficient 2 (green and yellow-red areas)

2D (en face) color-coded maps were made based on obtained two optical coefficients (Figure 1–3 (f) and (g)). The range of values was adjusted so that colors most accurately indicate different tissue types (tumor and non-tumor, fat and collagen).

To inter compare the maps in the study groups, it was suggested conventionally mark the areas with high values of coefficient 1 — over 1.5 mm^–1, and coefficient 2 — over 0.5 mm^–1 (green and yellow-red colors) and the areas with their low values: less than 1.5 mm^–1 and less than 0.5 mm^–1, respectively (light blue and blue colors). Constructed this way color-coded maps perfectly contrast cellular (by low values of the coefficients) and stromal (by high values of the coefficients) breast tissue components including those in different infiltrative BC subtypes.

Optical coefficients were calculated for 150 CP OCT images (two areas of interest of each sample), which included non-tumor breast tissue (n=28), infiltrative ductal BC of solid (n=34), and sclerosing (n=88) structure.

Results and Discussion

Visual analysis of scattering and polarization properties of breast tissue and morphological BC subtypes by en face CP OCT images

Non-tumor breast tissue. In norm, the mammary gland is formed of a terminal duct lobular unit, adipose and connective tissue (Figure 1 (а), (b)) that makes it heterogeneous exhibiting different scattering and polarization properties. It explains heterogeneous OCT signal distribution on structural en face CP OCT images of non-tumor breast tissue in co- and cross-polarization channels (Figure 1 (c), (d)). Breast adipose tissue is visualized as the accumulation of roundish structures with a low signal from cytoplasm, and a high signal — from cell membrane. Connective tissue gives a high signal both in co- and cross-polarization channels due to arranged, parallel collagen fibers; however, a signal quickly attenuates in depth. A terminal duct lobular unit or a single dilated glandular duct is visualized as the low-signal area in co- and cross-polarization channels.

Infiltrative ductal BC of solid structure. CP OCT technique enables to differentiate the subtypes of high grade infiltrative ductal BC characterized by a poor prognosis. It is possible to distinguish carcinoma type: solid or sclerosing due to the tissue components, which differently scatter light — connective tissue stroma and agglomerates of tumor cells.

Infiltrative ductal BC of solid structure (with tumor parenchyma dominating over stroma) is characterized by a low heterogeneous OCT signal in co- and cross-polarization channels of CP OCT images (Figure 2 (c), (d)), which is due to densely packed tumor cells in agglomerates that makes tumor tissue poorly light-permeable. However, there are no anisotropic (fibrous) structures in this cancer subtype (Figure 2 (а), (b)). Such OCT signal distribution enables to easily differentiate visually infiltrative ductal BC of solid structure from non-tumor breast tissue.

Infiltrative ductal BC of sclerosing structure. This cancer subtype is characterized by tumor stroma dominating over parenchyma (Figure 3 (а), (b)), OCT signal being distributed heterogeneously (Figure 3 (c), (d)) that makes difficulties for visual differential diagnostics of this cancer subtype with non-tumor breast tissue (though small structures had better contrast in healthy breast images). In corresponding histological specimens, tumor cell clusters are surrounded by tumor stroma fibrous structures with degenerative changes (fibrosis or hyalinosis) resulting in the increase or decrease in OCT signal in a cross-polarization channel. Stroma condition assessment is known to be very important, since tumor collagen matrix plays a key role in BC invasion and metastasis [32].

Quantitative analysis of scattering and polarization properties of breast tissue and different BC subtypes when making color-coded maps of optical attenuation coefficients in co- and cross-channels

The approach enabled to sharply enhance of CP OCT image contrast.

Non-tumor breast tissue. Non-tumor breast tissue is characterized by heterogeneous distribution values of coefficient 1 (see Figure 1 (f), (g)). Low values of coefficient 1 (light blue and blue areas) prevailed in the areas of adipose tissue and dilated glandular ducts (less than 0.5 mm^–1), while high values (over 1.0 mm^–1) (green and yellow-red areas) prevailed in healthy loose connective tissue areas. It is significant that the images with distribution of coefficient 1 are more contrast than standard CP OCT images, and visualize transparent ducts with a rim created by the duct wall that complied with histological data. Coefficient 2 in this tissue type is, primarily, not high (less than 1.5 mm^–1) and characterized by mean values providing the imaging of healthy connective tissue areas (green and yellow-red areas).

Infiltrative ductal BC of solid structure. This cancer subtype differs significantly from other studied BC subtypes by its color-coded maps of both coefficients. It is characterized by homogeneous distribution of lowest values of both: coefficient 1 (less than 1.0 mm^–1) and coefficient 2 (less than 0.5 mm^–1) (blue and light blue color, no yellow-red color) (see Figure 2 (f), (g)).

Infiltrative ductal BC of sclerosing structure. There is the most contrast heterogeneous distribution of high values of both: coefficient 1 and coefficient 2 (in the range 1.0–3.0 mm^–1) (see Figure 3 (f), (g)).

However, coefficient 1 and coefficient 2 values in cancer of sclerosing structure depend on tumorous stroma collagen fibers (Figure 4). It is important that fibrous connective tissue in marked hyalinosis becomes dense, and coefficient 1 increases (over 2.5 mm^–1) (areas of yellow-red color) compared to fibrosis condition, when coefficient 1 is lower (less than 2.0 mm^–1) (green-blue areas). Coefficient 2, which clearly demonstrates tumor stroma connective tissue state, is as follows: in fibrous changes its high values (in the range 1.0–3.0 mm^–1) have heterogeneous distribution (yellow-red areas); in hyalinosis of tumor stroma its values, in contrast, decrease (less than 0.5 mm^–1) (blue, light blue, and green areas). It is related to collagen destruction, the formation of homogeneous semi-opaque dense masses (similar to hyaline) and, therefore, low ability to cross-scattering.

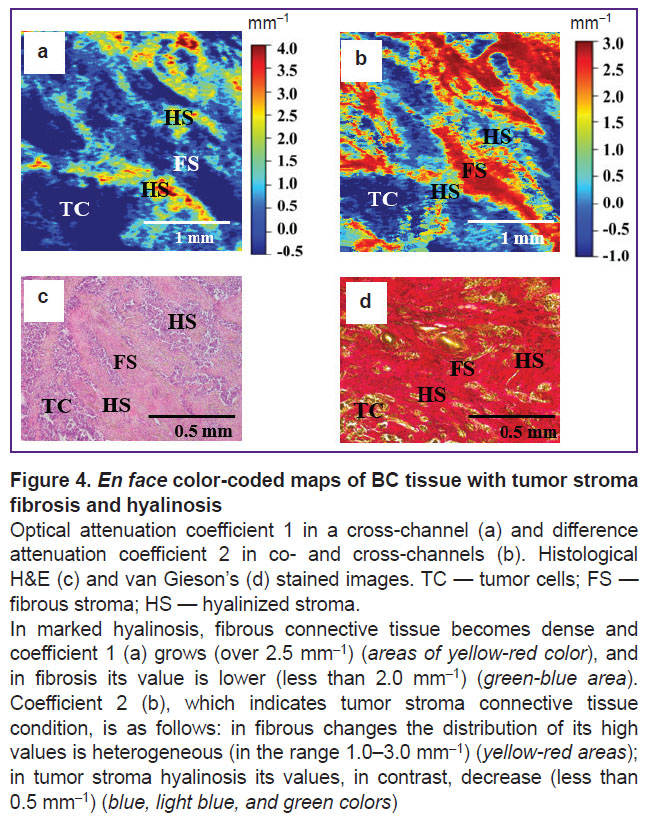

Figure 4. En face color-coded maps of BC tissue with tumor stroma fibrosis and hyalinosis Optical attenuation coefficient 1 in a cross-channel (а) and difference attenuation coefficient 2 in co- and cross-channels (b). Histological H&E (c) and van Gieson’s (d) stained images. TC — tumor cells; FS — fibrous stroma; HS — hyalinized stroma. In marked hyalinosis, fibrous connective tissue becomes dense and coefficient 1 (а) grows (over 2.5 mm–1) (areas of yellow-red color), and in fibrosis its value is lower (less than 2.0 mm–1) (green-blue area). Coefficient 2 (b), which indicates tumor stroma connective tissue condition, is as follows: in fibrous changes the distribution of its high values is heterogeneous (in the range 1.0–3.0 mm–1) (yellow-red areas); in tumor stroma hyalinosis its values, in contrast, decrease (less than 0.5 mm–1) (blue, light blue, and green colors)

Thus, color-coded maps of BC tissue images based on coefficient 1, compared to structural CP OCT images provide high contrast of healthy and tumor breast tissue (primarily, of solid structure). Coefficient 2 distribution enables to indicate specific features of the stroma state of the sclerosing structure tumors by a high value in the fibrous stroma area. A low value of coefficient 2 indicates to the area of hyalinosis.

Figure 5 shows the resulting distribution histograms of two optical coefficients for study groups. Since non-tumor breast adipose, glandular and connective tissues have different scattering ability, there is heterogeneous distribution of both high and low values of optical coefficients (Figure 5, blue curves). Infiltrative solid BC, which predominantly consists of tumor cells, is characterized by dominating low values of optical coefficients, and therefore, low scattering and polarization properties (Figure 5, orange curves). Heterogeneous distribution of primarily high values of optical coefficients was found in infiltrative ductal BC of sclerosing structure that leads to higher backward scattering, as well as more expressed polarization effects (Figure 5, green curves).

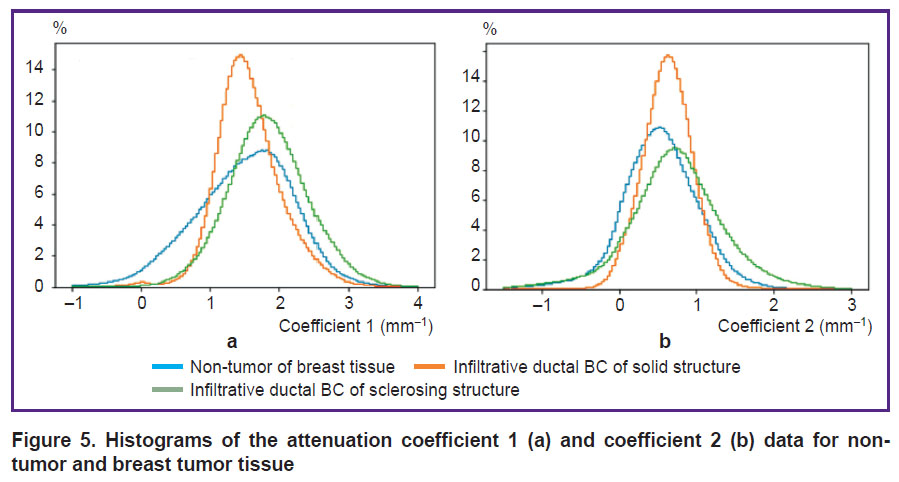

Figure 5. Histograms of the attenuation coefficient 1 (a) and coefficient 2 (b) data for non-tumor and breast tumor tissue

Conclusion

CP OCT enables to differentiate the main structural breast tissue components (adipose tissue, connective tissue, and tumor cells) with high contrast by OCT signal in a cross-polarization channel and by the values of optical attenuation coefficients.

The color-coded maps of coefficient 1 and coefficient 2 distributions made by en face CP OCT images of breast tissue samples enable:

easily, to a high accuracy, differentiate non-tumor and tumor breast tissue;

obtain relevant information on the relation and condition of cellular and stromal components in different morphological BC subtypes.

High values of optical coefficients (coefficient 1 and coefficient 2) were found to indicate high content of healthy connective tissue or tumor fibrous stroma. In contrast, their low values suggest tumor cellular component dominating. A difference attenuation coefficient in co- and cross-channels (coefficient 2) enables to indicate and give more evidence on various degenerative changes of tumorous stroma collagen structures. Its low values suggest tumorous stroma hyalinosis growth providing the evidence of secondary deep (degenerative) changes.

A quantitative analysis of scattering and polarization properties of different morphological BC subtypes by calculating optical attenuation coefficients of OCT signal in co- and cross-polarization channels followed by making color-coded maps can serve the basis for independent automated intra-operative diagnosis of different morphological subtypes of infiltrative BC, as well as for the accurate determination of intra-operative resection margin in lumpectomy. Intra-operative identification of positive tumor margins will reduce the number of tumor recurrences and the necessity for reoperations.

Study funding. The study of scattering and polarization properties of breast cancer was supported by the Russian Science Foundation, agreement No.18-75-10068. The calculation technique of optical coefficients was supported by Russian Foundation of Fundamental Research project 16-32-60178 mol_a_dk.

Conflicts of interest. The authors declare no conflicts of interest related to the present study.
