Modern Molecular Genetic Technologies in the Supervision over HIV-1 Subtypes Circulation

The implementation of a complex of modern molecular genetic technologies characterized by high sensitivity and specificity extends the boundaries of epidemiological diagnostics of infections including human immunodeficiency virus (HIV) in terms of studying biological and genetic characteristics of an infectious agent. These technologies enable to study subtypical HIV variety that is one of biological parameters when supervising HIV infection [1].

The study of HIV-1 subtypes circulating in Russia has been carried out by different researchers. It enabled to reveal that in the middle 90s of the last century A–H subtypes of HIV-1 circulated in Russia, subtype B dominating among men having sex with men, and subtype G isolated in infected children from a nosocomial center of infection in the south of Russia. The other episode of HIV infection broke out in the middle of 1996 among people taking intravenous psychotropic agents, the infection being caused by subtype A virus, which subsequently went beyond this vulnerable population group and started spreading among the sexual partners of injection drug users (IDU), as well as among children with perinatal HIV contact, and took the first rank in the Russian Federation [2–8]. In the following years in Russia recombinant forms obtained a wide circulation; the forms resulted from genetic material exchange of different virus subtypes circulating both in Russia, and on the territories of other countries and brought in Russia [9, 10].

Privolzhsky Federal District (PFD) is of special interest concerning the study of HIV subtypes incidence due to a high prevalence level and high morbidity rate of HIV infection, since 2000 it has exceeded a mean value in Russia. PFD is one of highly developed areas in Russia, has a unique transit position, since it is located at the junction of international transport corridors: “North–South” and “West–East” connecting Siberia and Far East, as well as Eastern Asia and European countries. The last mentioned is curtain to contribute to a spectrum of HIV subtypes circulating in PFD.

The use of modern laboratory techniques is of scientific and practical importance, and the techniques enable to obtain the relevant information on genetic variation and HIV incidence in PFD as the supplement to classical epidemiological methods of epidemic monitoring.

The aim of the investigation was to assess the capabilities of modern technologies in the monitoring of genetic HIV-1 subtypes circulating within some administrative territories (by the example of Privolzhsky Federal District during the period of 2008–2014).

Materials and Methods. We carried out molecular genetic analysis of 647 blood plasma samples of HIV-1 infected patients from 13 regions of PFD, the patients being registered at local prevention and control centers for AIDS and infectious diseases. Nucleotide sequences of HIV-1 genome were identified using ViroSeq^ТМ HIV-1 Genotyping System (Celera Diagnostic, Abbott Laboratories, USA) by sequencing amplified fragments of gene pol on a genetic analyzer ABI Prism 3100 (Applied Biosystems, USA). The obtained fragments were studied using ViroSeq HIV-1 Genotyping System Software v.2.8 (Celera Diagnostic, USA) according to the manufacturer instructions. To identify closely related HIV-1 strains, nucleotide sequences including reference nucleotide sequences from GenBank of European countries, America, Australia, CIS and Russian regions were analyzed using BLAST program [http://www.ncbi.nlm.iv.gov/BLAST/]. Phylogenic analysis was carried out using MEGA 5.2, Maximum Likelihood statistical analysis and Kimura (bootstrap level 1,000).

Subtyping of HIV-1 strains was performed using online programs COMET HIV-1/2 and HCV and REGA HIV-1 Subtyping Tool.

The obtained in the research nucleotide sequences of virus (HIV) isolate genome areas were subsequently deposited in an international database GenBank (JX 141197–JX 141233; KF257850–KF257884; KJ722070–KJ722139; KP090065–KP090099) and Russian HIV drug resistance database.

The findings were processes using an analysis of variance. The difference degree of two samplings was assessed by Student t-test. The revealed differences were considered significant if p<0.05.

Results and Discussion. The implementation of modern computer programs and technologies in this research enabled to find the distribution of HIV-1 subtypes in PFD in different periods to have some differences. So, the samples dated 2008–2010 (the first period) appeared to be genotyped as variant A in 91.3±1.7% cases; and as variant B in 8.7±1.6% (Figure 1 (а)). No other virus types were identified during that period.

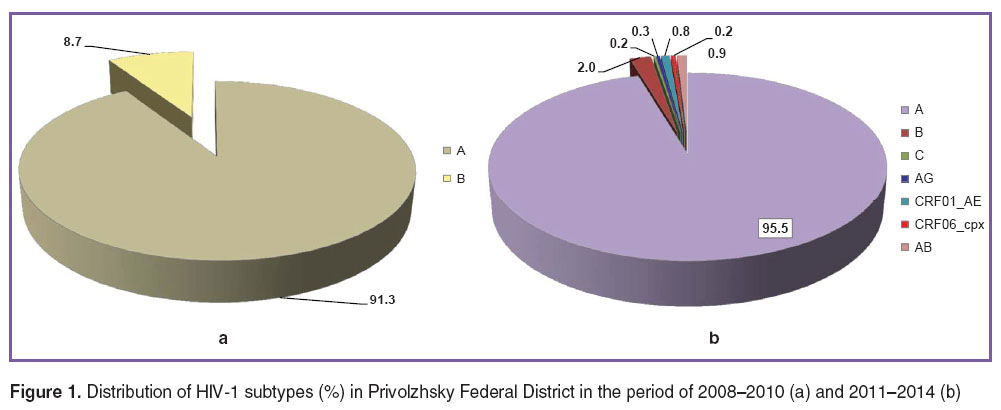

Figure 1. Distribution of HIV-1 subtypes (%) in Privolzhsky Federal District in the period of 2008–2010 (а) and 2011–2014 (b)

Subtype А occurs primarily (90.7±1.7% cases) in a group of those taking psychoactive substances parenterally, and live in the regions of Nizhny Novgorod, Samara, Kirov, Penza, Ulyanovsk, Saratov, and Republics of Udmurtia, Chuvashia, Mari El, Mordovia. Type В was found only among men having sex with men living in Nizhny Novgorod and Penza regions.

During the second period (2011–2014) the spectrum of HIV-1 subtypes significantly extended, mainly, due to various recombinant types and subtype C strain appeared (Figure 1 (b)).

The appearance of both new HIV-1 subtypes, as well as their recombinant forms in some regions reflects certain regularities in epidemiological process development. It is related to the virus evolution peculiarities, new population groups with various routes involved in an epidemiological process [11], the extension of economic and political relations between countries and the development of active migration and international tourism [5]. However, new HIV subtypes appeared to have an effect on the epidemic development in general that requires further study of their role.

HIV-1 subtypes isolated in the samples from the district areas in 2011–2014 have the following variants (See the Table).

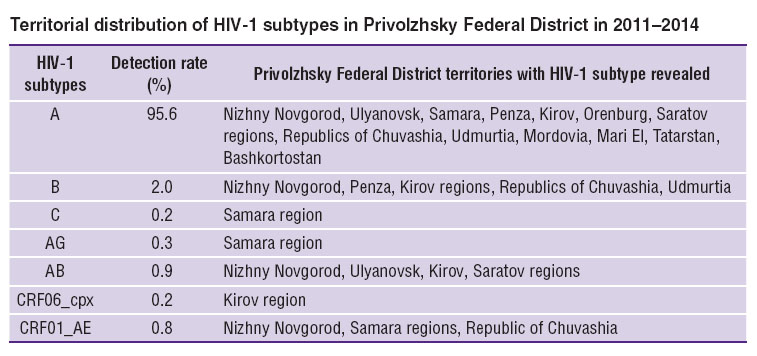

Territorial distribution of HIV-1 subtypes in Privolzhsky Federal District in 2011–2014

The results of the studies carried out using modern molecular genetic techniques enabled to establish that in the period of 2011–2014 A subtype continued to have a leadership position and was revealed in 95.6±0.9% cases on all the territories of the district, the most frequently detected in positive patients living in Nizhny Novgorod, Ulyanovsk, Samara regions and the Republic of Udmurtia (p≤0.05).

The development of HIV epidemiological process through time and sequential involvement of general population in epidemic reflected the more frequent subtype A detection than during the first period in patients infected through sexual (heterosexual) transmission: 20.3±1.7% (p≤0.05) and, subsequently, the variant was detected in children with perinatal HIV contact during the second period: 2.4±0.6%. This viral variant compared to the period of 2008–2010 was found in a group of HIV positive patients in fewer cases: 77.3±1.8% (p≤0.05) holding the dominant position.

The implementation of modern technologies, which enable to establish genetic relationship between nucleotide sequences of test and reference samples (phylogenic analysis) testify that most subtypes A isolated from HIV positive patients from PFD were clustered around Ukrainian and Russian consensus samples both during the first and the second periods (Figure 2).

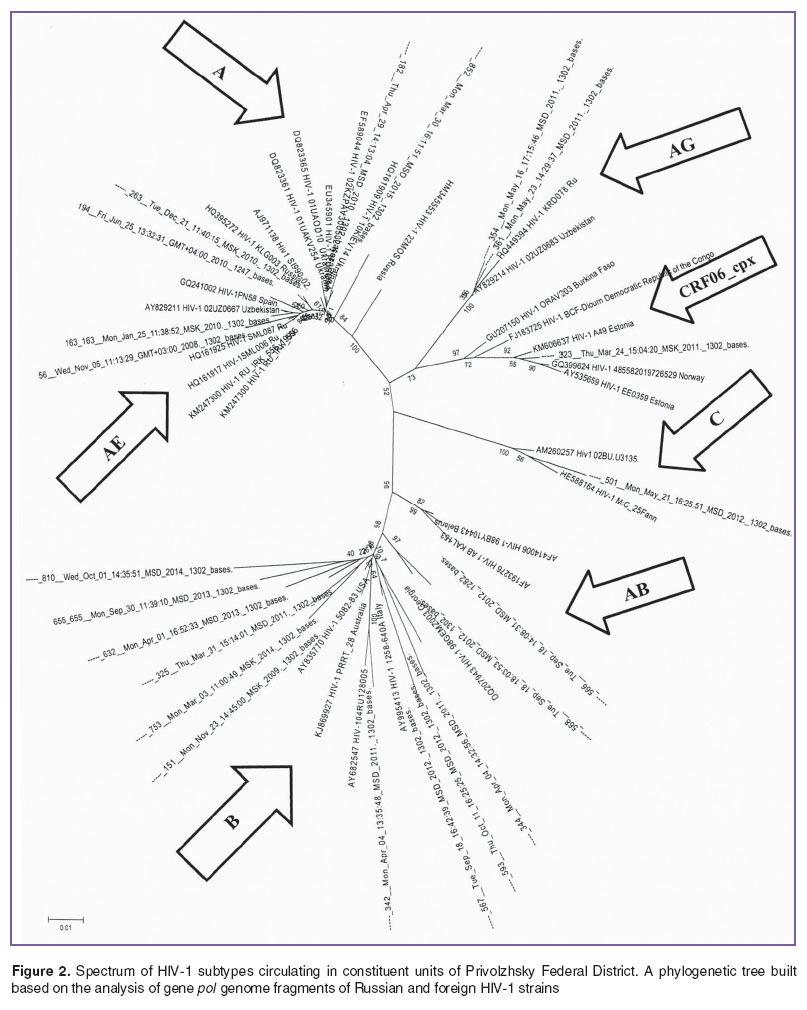

Figure 2. Spectrum of HIV-1 subtypes circulating in constituent units of Privolzhsky Federal District. A phylogenetic tree built based on the analysis of gene pol genome fragments of Russian and foreign HIV-1 strains

Variant B ranked second in the terms of detection rate in 2011–2014 (2.0±0.6%), it circulating on five territories of the district (Nizhny Novgorod, Penza, Kirov regions, Republics of Udmurtia and Chuvashia). During this period subtype B also dominated among men having sex with men (53.8±2.2%), however, in 38.4% cases it was isolated in heterosexual men and women, who had had in their past history promiscuous sexual relations with citizens of Europe, Asia, America and both within and beyond Russia. Thus, viral distribution went beyond a group of homo- and bisexuals (See Figure 2). During both periods the obtained nucleotide sequences of B variants were clustered with subtype B sequences taken as references from GenBank, from European countries, America, Australia, CIS, and other Russian regions.

Among the samples under study, HIV-1 subtype C in PFD was found once, in HIV positive patient from Samara region, who had been working in Ethiopia and had been infected there by sexual contact. It was proved by phylogenic analysis (See Figure 2): the sample obtained from this patient forms a common branch with the variants of the same subtype from Senegal (West Africa) and Burundi (East Africa).

Recombinant form АВ was first found in Russia in IDU of Kaliningrad region [12, 13] and for a relatively long period it was found only there. Later, the carryings of the virus were found in other region of Russia as well that was proved by phylogenic analysis and represented in our study. This variant was detected on four territories of PFD (Nizhny Novgorod, Kirov, Saratov, Ulyanovsk regions) with predominating frequency (66.7%) among women infected by their husbands with a great number of sexual contacts (rotation workers, long distance truckers), and drug abusers from penitentiaries. Nucleotide sequences of the strains under study of type AB virus form a common branch with recombinants from Kaliningrad region (Russia) and Belarus (See Figure 2).

AG variant, which is widespread in Central Asian countries, was revealed in two HIV positive female patients from Samara region. Both patients were infected through sexual contacts with little-known partners from other regions of Russia. Nucleotide sequences of AG variants under consideration quite expectably form a common branch with strains from Uzbekistan and Russian strain from Krasnodar.

HIV-1 CRF01_AE nucleotide sequences isolated in patients from Nizhny Novgorod region and Republic of Chuvashia form a common cluster with recombinant strains from European countries (Slovenia, Spain), Central Asia countries (Republics of Kazakhstan, Uzbekistan) and Russian strains (Irkutsk, Smolensk). In 2/3 cases this recombinant was revealed in HIV positive drug abusers.

Circulating recombinant form CRF06_cpx was found in one woman from Kirov region. She had been infected through sexual contacts with an HIV positive partner from Saint Petersburg, who had had promiscuous sexual relations in his past history. It agrees with data reported in literature [14], which state that since 2000 in Saint Petersburg variant CRF06_cpx has been registered relatively frequently. This fact is clearly explained by geographical neighborhood with Estonia, where this HIV-1 recombinant is dominating among IDU [15], this subtype being widespread in West African countries in the 80–90s of the last century [16]. The phylogenic analysis carried out confirmed genetic proximity of the sample under study (See Figure 2) with the strains from Estonia, Norway and Central and West African countries (Democratic Republic of the Congo and Burkina Faso) forming a common cluster.

Thus, modern molecular genetic techniques enabled to establish that the distribution of HIV-1 subtypes in PFD complies with common regularities related to both genetic HIV variation, and, to a greater degree, with economic and epidemiological peculiarities of HIV-1 infection pandemic.

It should be noted that going further, due to the extension of migration flows, the spectrum of HIV subtypes in the district is likely to extend. So, in 2014, according to census report form No.4 “Information on the findings of HIV blood test”, there were tested 30,550 people arrived at PFD from Ukraine for humanitarian reasons. It resulted in 2.5 increase of HIV positive patients detected: up to 0.3% among all foreigners, up to 0.6% among Ukrainians. The circumstances specified   are   likely to make a certain contribution to the development of HIV infection epidemiological process in the district in terms of a great variety of subtypical viral structure, the spectrum of revealed mutations of HIV resistance to antiretroviral agents, etc. The implementation of modern molecular technologies to study genetically the peculiarities of human immunodeficiency virus can serve an important tool to monitor a current situation and prognosticate an epidemic. These methods will make it possible to assess, study and make decisions in order to develop preventive and epidemiological measures to high precision and efficiently, since these techniques are an diagnostic component of epidemiological surveillance over HIV infection.

Acknowledgements. The authors express their thanks to the staff members of territorial and republican AIDS prevention and infectious diseases and control centers from Kirov, Nizhny Novgorod, Penza, Samara, Ulyanovsk regions, Republics of Udmurtia and Chuvashia for data and materials provided.

Study Funding and Conflicts of Interest. The study was not funded by any sources, and the authors have no conflicts of interest related to the present study.
