Evaluation of a Failed Heart Valve Bioprosthesis Using Microcomputed Tomography

Every year about 12,000 heart valve replacements are performed in Russia, 2,400 among them are biological prostheses, and up to 26.4% patients undergo a redo heart valve replacement due to a failed leaflet apparatus [1]. Up to 90% failed bioprostheses are due to a primary tissue failure caused by a number of factors, tissue structural degradation and calcification being the main factors [2, 3]. Due to the fact that a number of acquired and congenital valvular heart diseases is growing, a number of operations using biological prostheses is increasing steadily [1], however, there have been still found no effective techniques for biomaterial processing that could solve the problem of bioprosthetic durability. The situation makes it necessary to evaluate a prosthetic tissue condition and determines the necessity to develop new diagnostic methods able to make a quantitative assessment of a prosthetic degradation degree and give a comprehensive idea of a failure development mechanism.

The existing researches on explanted failed bioprostheses rely, chiefly, on macroscopic and histological descriptions [4, 5], these techniques, however, do not give sufficient information on damage structures, the conclusions being qualitative rather than quantitative. High radio-opacity of calcium conglomerates enables to make good use of fluoroscopy to assess calcinosis: in particular, a radiograph enables to provide qualitative imaging of mineralized tissue [6], but gives no chance to give a quantitative evaluation. The most promising methods, which enable to perform a quantitative analysis based on three-dimensional reconstructions, are computed tomography techniques [7]. However, due to relatively low resolution of standard CT prevents from reconstructing a detailed structure of calcifications and biological material to the full extent. High resolution of three-dimensional reconstruction can be achieved by microcomputed tomography (micro-CT) considering static research objects, as well as no radiation exposure limits [8]. The approach is widely used when it is necessary to reconstruct precise prosthetic models of heart valves for further computerized modeling [9–11], as well as in biological tissue researches [12]. We suggest using computed tomography to analyze explanted failed prostheses to obtain quantitative characteristics of the impairment under study.

The aim of the investigation was to assess the capabilities of microcomputed tomography with subsequent image analysis of explanted failed biological heart valves prostheses.

Materials and Methods

Research object. Xenopericardial bioprosthesis UniLine (NeoCor, Kemerovo, Russia) of 30^th typical size was chosen as a research object. It refers to a group of rigid stented prostheses, which currently are standard for radical correction of valvular pathologies [13]. A valve itself is made of bovine xenopericardium fixed in glycol diglycidyl ether, mounted on a composite frame made of nitinol and polypropylene. The frame and cuff coating is also made of xenopericardium without synthetic materials [14, 15].

The study used a biological valve prosthesis expanded due to a failed mitral position. The patient’s age at reprosthesis was 56 years, a prosthesis operation life in the body is 5 years. In order to preserve tissue microstructure after excision the prosthesis was placed in 4% buffered paraformaldehyde solution (Sigma-Aldrich, Germany).

Microcomputed tomography. The study was carried out using micro-CT [16]. One of the common schemes of the method is the usage of a radiological apparatus with a small-sized focal spot. A useful beam pattern in the scheme is a cone (Figure 1). Radiation enters through a study object, partially attenuates and is recorded by a flat X-ray detector. The research object is turned through certain degrees round the vertical axis that enables to take radiographs from different views. Voxel size after reconstruction in the scheme is determined by view magnification, which depends on “object–source” and “source–detector” distances [8].

---

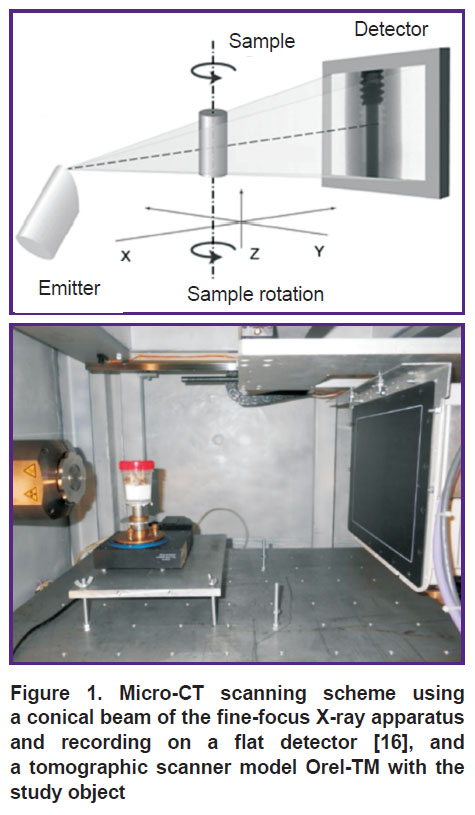

Figure 1. Micro-CT scanning scheme using a conical beam of the fine-focus X-ray apparatus and recording on a flat detector [16], and a tomographic scanner model Orel-MT with the study object

---

The study involved a tomographic scanner Orel-MT (Tomsk Polytechnic University, Russia) to realize the above-mentioned scheme and showing the following characteristics:

Emitter current: 1–1,000 µA;

Voltage: 20–160 kV;

Focal spot: 1.3 µm;

Detector: 3 megapixels (1,920×1,536 pixels);

14-bit TFT active matrix;

Gain range: 1.3–25.0;

Scanning area: 150×150×100 mm;

Voxel size: 5–100 µm.

A tomographic scanner resolution in the experiment was 25.4 µm. A detector was 500 mm away from a focal spot, and a research object was at a 100-mm distance. The Table shows the parameters of scanning modes. In order to obtain more contrast and informative images the prosthesis was put in a hermetically sealed container with air.

---

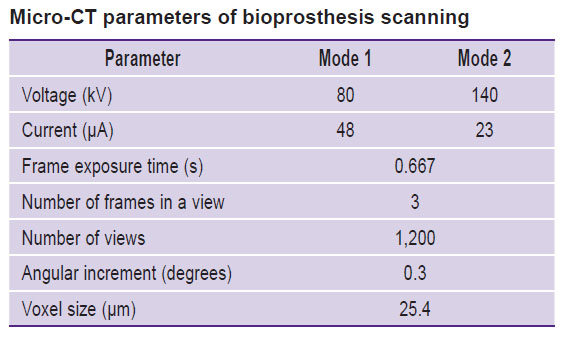

Micro-CT parameters of bioprosthesis scanning

---

Subsequent reconstruction of the obtained tomograms, segmentation in accordance with grayscale values, the measurements, as well as the grid were performed using software Mimics (Materialise, USA). When measuring the prosthesis deformities in tomograms corresponding to the planes of histological sections, we recorded the following parameters: H — coaptation zone height, α — angle of deflection of the leaflet, R — leaflet curvature radius, D — frame diameter, β — the inclination angle of the prosthesis wire frame rack (Figure 2).

---

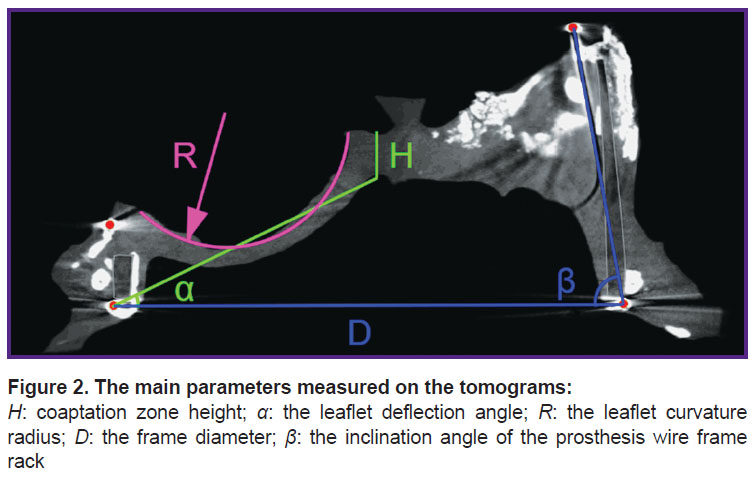

Figure 2. The main parameters measured on the tomograms: H: coaptation zone height; α: the leaflet deflection angle; R: the leaflet curvature radius; D: the frame diameter; β: the inclination angle of the prosthesis wire frame rack

---

We used software Amira (FEI, USA) for volume rendering and views of maximum intensity and averaged views.

Histological examination. To assess structural changes of the biological material during the prosthesis functioning, we excised the leaflet central part from a free border to the base. Biomaterial microstructure was estimated by light microscopy using the microscope Axio Imager A1 (Carl Zeiss, Germany). Documentation and image processing were performed using software AxioVision (Carl Zeiss, Germany). The biomaterial thickness and calcification sizes were measured on 10 series sections for each sample. Histological specimens, 4–6 µm thick, were prepared on the cryotome Microm HM 525 (Thermo Scientific, Germany). At microstructural level the cryosections were alizarin red (Chimsintez, Russia) stained to identify the calcifications.

According to the bioprosthesis position in relation to the natural mitral valve anatomy, we agreed to use the following names for bioprosthetic leaflets: A — anterior, P — posterior, M — medial (Figure 3).

---

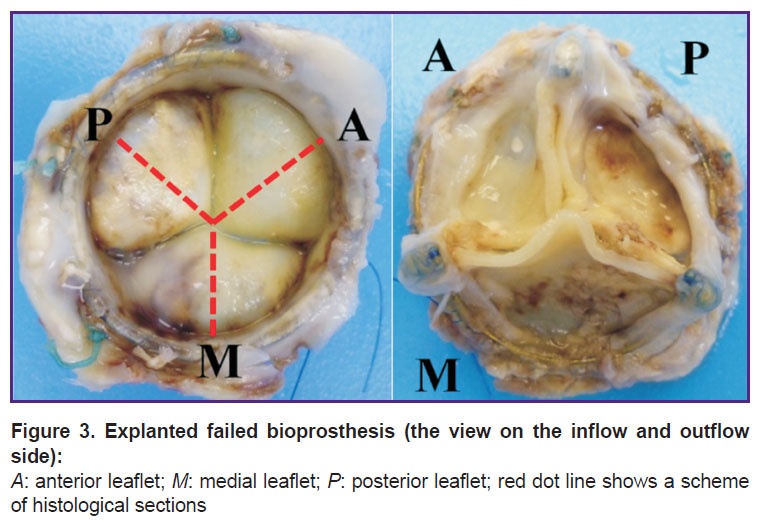

Figure 3. Explanted failed bioprosthesis (the view on the inflow and outflow side): А: anterior leaflet; М: medial leaflet; Р: posterior leaflet; red dot line shows a scheme of histological sections

---

Statistical analysis. The data were processed according to histological examination findings using Statistica 6.0 (StatSoft Inc., USA). The distribution in sampling was assessed by Kolmogorov–Smirnov test, the data being presented as a median (М), as well as 25 and 75 percentiles.

Results

Microcomputed tomography. Initially, accelerating voltage of an X-ray apparatus was chosen as 80 kV. However, under these conditions, typical artifacts appeared on tomograms due to metallic components in a bioprosthesis structure [17]. Voltage was increased up to 140 kV that partly compensated the artifacts; however, the contrast of the low-absorption components decreased (Figure 4).

---

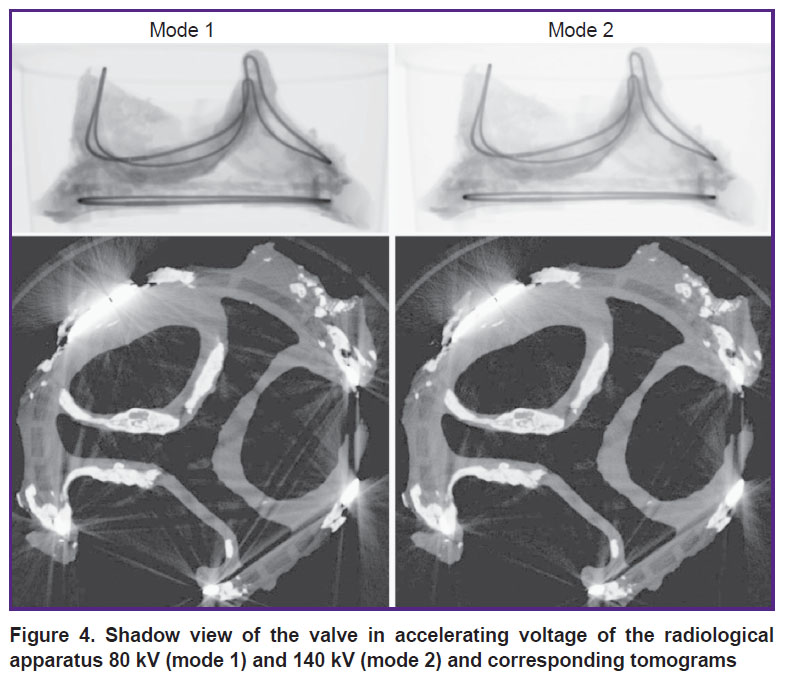

Figure 4. Shadow view of the valve in accelerating voltage of the radiological apparatus 80 kV (mode 1) and 140 kV (mode 2) and corresponding tomograms

---

The grayscale tomograms and pseudo-color images taken during the experiment demonstrated the main location of the densest calcifications in the tissues of the posterior and medial leaflets, with the anterior leaflet being calcification-free (Figure 5). The calcification thickness in the posterior leaflet dome was 0.92 mm. The medial leaflet had several calcifications in the section located in the leaflet dome and base, maximum thickness being 1.68 mm. The anterior leaflet thickness in the free border was 1.57 mm, in the dome: 1.05 mm.

---

Figure 5. Tomograms corresponding to histological sections and agreed notation of leaflets: А: anterior leaflet; М: medial leaflet; Р: posterior leaflet; on black and white films the blue color indicates the contour of a nitinol wire frame, the red color shows the polypropylene frame contour

---

The medial section (М-section) clearly demonstrated asymmetry of the leaflet free edge, and therefore, the impaired geometry of the coaptation zone: the coaptation zone height was 2.14 mm versus 3.42 and 3.12 mm for posterior and anterior leaflets, respectively.

The least curvature radius in the posterior leaflet was 22.0 mm, the angle of leaflet deflection was 22.7°. The same parameters for the medial and anterior leaflets were 6.15 mm, 30.9° and 7.20 mm, 26.0°, respectively.

The posterior-anterior rack of the wire frame had the least inclination angle: 73.4° (the rack was deformed to the utmost), while the angle of the other racks was nearly the same: 80.0° (media anterior) and 79.7° (posterior-medial).

The frame diameter in all three sections slightly deviated from the initial one — 30.48 mm: 28.96 (P-section), 30.68 (M-section) and 30.22 mm (А-section), i.e. the frame was not apt to have elliptical deformity (See Figure 5).

The averaged 2D projection and the maximum intensity projection obtained through the study enabled to distinguish the areas with marked calcinosis (Figure 6). The posterior leaflet underwent the maximum changes, while the medial leaflet was affected on the side of the posterior-medial rack. Moreover, the volume rendering enabled to show clearly the calcifications in the area of the frame racks.

---

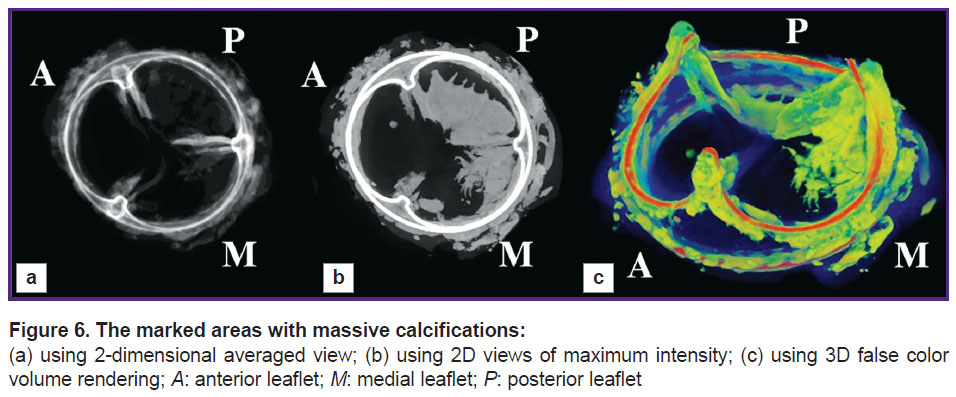

Figure 6. The marked areas with massive calcifications: (а) using 2-dimensional averaged view; (b) using 2D views of maximum intensity; (c) using 3D false color volume rendering; А: anterior leaflet; М: medial leaflet; Р: posterior leaflet

---

In accordance with the obtained grayscale histogram (16-bit grayscale ranging from 0 to 65,535), there were found two main peaks within the range of 800–3,700 — for biomaterial and polypropylene frame, 3,700–10,000 — for calcifications. The range of 10,000–65,535 corresponded to the wire frame. Segmentation and subsequent 3D models were constructed in accordance with these ranges (Figure 7).

---

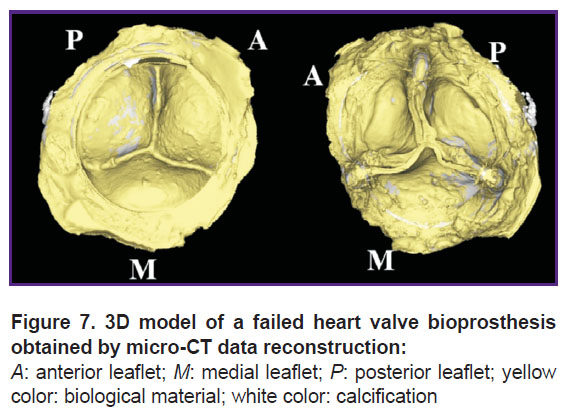

Figure 7. 3D model of a failed heart valve bioprosthesis obtained by micro-CT data reconstruction: А: anterior leaflet; М: medial leaflet; Р: posterior leaflet; yellow color: biological material; white color: calcification

---

The following values were obtained after measuring the volume of the segmented objects: total calcification volume was 1,499.68 mm³, the wire frame volume was 67.76 mm³, the volume (net of polypropylene frame) was 4,918.5 mm³. Thus, calcium/biological tissue ratio was 0.305. The total area of calcification network surface was 4,640 mm².

Histological examination. All the leaflets were thickened and lost elasticity. Initial tissue thickness was found to be preserved at the leaflet base. The central part of the posterior and medial leaflets was revealed to have large calcifications, 8.0 and 4.84 mm in length, respectively, localized in the leaflet dome (Figure 8). The maximal thickness of the calcified areas was found in the posterior and medial leaflet dome, it accounting to 0.89 (0.88–1.0) and 1.64 (1.59–1.72) mm, respectively. The calcification thickness varied from 0.3 to 0.68 mm. In addition, the calcification was found at the base of the medial leaflet attachment to the frame, the calcification having no localization connection with the leaflet dome. The anterior leaflet in the central part had no calcification signs, its thickness in the free edge and the dome was 1.5 (1.47–1.54) and 0.96 (0.94–0.97) mm, respectively.

---

Figure 8. Cryostat sections of bioprosthetic leaflet central part: А: anterior leaflet; М: medial leaflet; Р: posterior leaflet; the free border is to the left, the leaflet base is to the right; the specimen being alizarin red stained; calcification of brown color; ×50

---

Discussion. The findings of the present research demonstrate that the application of micro-CT in the study of heart valve bioprosthesis dysfunction enables to expand significantly the range of instruments for qualitative and quantitative analyses. In contrast to radiography [6], the technique enables to take views of maximum intensity that can be used for rapid evaluation of calcifications in the leaflet apparatus area (See Figure 6), however, it appears to be ineffective to study the distribution of calcifications along the frame contour due to its complex three-dimensional geometry. 3D false color volume rendering can be successfully applied to solve the problem. Generally, it should be noted that the use of pseudo-color staining, in tomograms, in particular, enables to visualize clearly the prosthesis frame elements with surrounding tissues of similar radiological density (See Figure 5).

The most valuable opportunity among the others micro-CT offers is the quantitative measurement of geometrical parameters on reconstructed tomograms, as well as the reconstruction of three-dimensional models with the subsequent volume rendering. The comparison of the findings of a micro-CT analysis and a histological description showed the data identity. Thus, distortions and artifacts — the major drawback of the method — can be considered insignificant.

The measurement findings enable to relate the calcification distribution to stress-strain state of the prosthetic structural nodes. The posterior leaflet had the least curvature radius and the angle of deflection, i.e. it was in the most stressed state, its calcification being marked. It suggests the presence of the correlation between a calcification degree and the tension in the prosthetic leaflet that is consistent with literature data suggesting the material stress to be of primary significance for the calcification rate [18, 19]. However, the underlying condition of leaflet geometry changes consists in, at least, two factors: a significant asymmetric deformity of the frame racks (initial inclination angle was 84°) and the stretching of biological tissue itself under an intensive cyclic load.

The presence of separate calcium conglomerates in leaflets and their following clustering into larger elements is a priority mechanism of forming large accumulations of calcium phosphate crystals [19, 20]. Calcification growth is accompanied by damage and replacement of the organic matrix component for calcium phosphate crystals [20, 21], therefore, the presence of pericardial elements around a large calcification formed suggests internal calcification, when nucleation centers are deep in the material [18]. Significant increase in leaflet thickness in the calcified areas suggests that the replacement process of a biological component by calcifications proceeds intensively due to the calcification growth. However, an increased thickness of a free border of the posterior leaflet and the thickness of the anterior leaflet in whole without calcification signs indicate degenerative changes of biomaterial without a calcification process, the changes also contributing to bioprosthesis dysfunction.

Thus, the present study has clearly shown the capabilities of micro-CT to assess the degree of calcification and deformity alterations of a frame and a leaflet apparatus in failed heart valve bioprostheses.

Conclusion. The suggested method of micro-CT enables to expand significantly a range of tools to study the development mechanisms of biological prosthesis dysfunction due to quantitative and qualitative assessment of calcification distribution. It enables to carry out batch quantitative processing of the reconstructed models and, in the long term, to solve the problem of their studying by computer modeling techniques.
