Automated Complex of Motion Control Based on Vibrotactile Feedback for Rehabilitation

The use of biofeedback (BFB) is a relatively recent trend in rehabilitation medicine; it has been often employed for rehabilitation of patients after injuries or disorders of the musculoskeletal and nervous systems. These categories of patients are in need of additional monitoring and control of their muscle functions.

It has been shown that signals coming from the human tactile system are perceived by the body more readily than other types of physiological feedback, and are able to substitute natural proprioception in regulating muscle contractions. In this case, tactile, vibrotactile or electrotactile signals as well as their combinations can be used [1, 2]. Such signals are most commonly used for training and rehabilitation of patients with upper limb prostheses because in these cases a feedback is necessary not only for training but also for normal functioning of the artificial limb [3, 4].

The BFB approach is relevant for the transplanted limb, which, in terms of biomechanics, is similar to a bionic prosthesis except for some biologically determined features [5]. There are more clinical situations, in which the use of BFB is beneficial (a procedure supplemental to physiotherapy or in preparation for forthcoming treatment) [6]. For example, after arm tendon surgery, the use of BFB may be helpful for successful healing and rehabilitation. Tendon suture is performed in tendon injuries and their consequences, as well as transpositions of tendons after nerve injuries at various levels [7–10]. In these cases, it is necessary, on the one hand, to provide sufficient mobility to the tendons and prevent adhesions, and, to protect the suture zone from excessive tension to avoid its failure. For this purpose, rehabilitation protocols of postoperative management are designed to provide the newly stitched tendons with maximal yet safe exercise [11–15]. However, surgeons and physiotherapists can decide on the degree of mobility based only on the data from mechanical studies in vitro or retrospective data of others on the effectiveness of rehabilitation [16, 17].

Muscle tension is mainly controlled by passive measures like limitation of muscular activity by excluding certain movements, or imposing immobilization, or using passive elastic bands [18]. These measures are prescribed and supervised by a rehabilitation specialist. However, in the absence of such an expert (e.g., at home), the patient cannot fully control his/her muscle tone, which increases the likelihood of suture rupture.

Continuous monitoring of muscular tension is needed to create the optimal conditions for rehabilitation of patients after tendon injuries, or compensate for the function of paralyzed muscles in tendon-muscle transfers. This would allow to monitor and control muscle tension and force applied to the tendon junction, help create new motor stereotypes, reduce the probability of suture failure, and retrain the transposed muscles to function.

The BFB devices provide the patient with a permanent connection to his/her muscles via visual or audible feedback systems [19]. Before introducing the systems with tactile feedback into the area of post-surgery tendon rehabilitation, the effectiveness of tactile BFB was demonstrated in the brain–machine interface setting based on EEG signals [20]. The vibration stimulus used for the feedback formation is very close to physiological proprioception. This approach seems quite promising for the development of automated methods of personalized rehabilitation, because it provides tools to monitor/control several areas of patient’s body, simultaneously. Moreover, when using a vibrotactile BFB system the patient does not need any other audiovisual sensory channel to ensure its continuous functioning at home. The development of such brain–machine neuro-interfaces has recently become one of the most promising areas in neurological rehabilitation. Research into this field is based on novel technologies for recording neurophysiological signals and a better understanding of neuroplasticity and information processing in the brain and nervous system [21].

Materials and Methods

Determination of vibration characteristics. To assess the perception of vibration stimuli and to optimize the vibration parameters we have developed a device based on a microcontroller (Atmel ATMega328P; Atmel, USA) that guided the vibrator (Figure 1 (a)). In the experiment, a LRA motor with a diameter of 10 mm was used as a vibration actuator. The motor was held with a retainer on the medial side of the subject’s forearm. During the experiment, the subject was asked to put his/her arm on the table and relax the arm muscles. The intensities of the vibration stimuli were controlled by means of pulse-width modulation. As the pulse duration increased (the vibrator was active for longer time) the generated stimuli were perceived as more intense (Figure 1 (b)). The microcontroller thus set the operating mode of the vibration actuator.

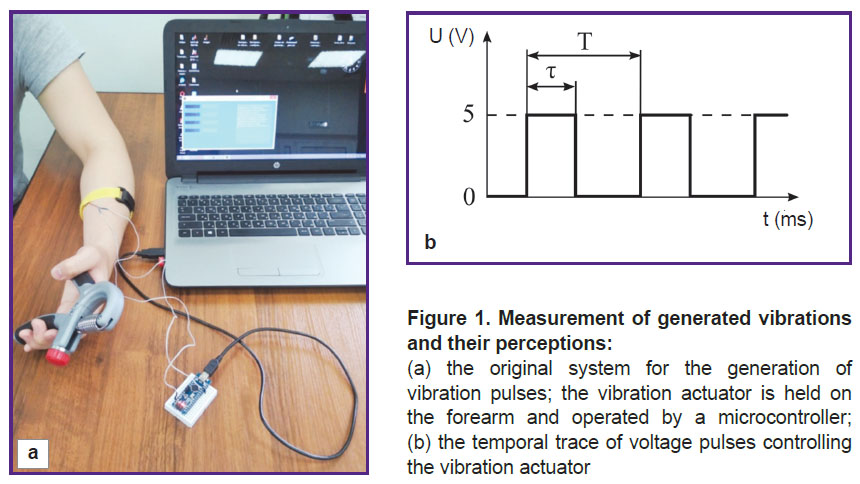

Figure 1. Measurement of generated vibrations and their perceptions: (a) the original system for the generation of vibration pulses; the vibration actuator is held on the forearm and operated by a microcontroller; (b) the temporal trace of voltage pulses controlling the vibration actuator

To assess the perception of vibrations, we proposed a perception-evaluating scale with four grades of sensations: imperceptible, weakly perceptible, well perceptible (optimal) and unpleasant. In the developed software for guiding the microcontroller, the duration of the vibration pulses increased incrementally during the experiment by steps of 0.2 ms from the minimum to the maximum (2 ms). The pulse frequency was set to 500 Hz. With each change in the pulse duration, the subjects were asked to evaluate their sensations according to the proposed perception scale.

In total, 7 subjects took part in the experiment. The study was carried out in accordance with the Helsinki Declaration, adopted in June 1964 (Helsinki, Finland) and revised in October 2000 (Edinburgh, Scotland), and approved by the Ethics Committee of the Lobachevsky State University of Nizhni Novgorod. An informed consent was obtained from each patient. The experimentation on vibration perceptions lasted for 3 days. Three recordings were made for each day with an interval of 1 h. Statistical analysis of the experimental data was performed in MATLAB and Statistica 6.0.

Biological feedback with vibrotactile stimulation. To test the feasibility of BFB for muscle contraction, we developed a hardware-software complex, which consisted of an electromyographic recording device and a vibration actuator (Figure 2). The functional algorithm of the complex included a continuous recording/analysis of muscle activity and a vibration control. If a preset threshold of muscle contraction is exceeded, the vibrotactile signal is turned on.

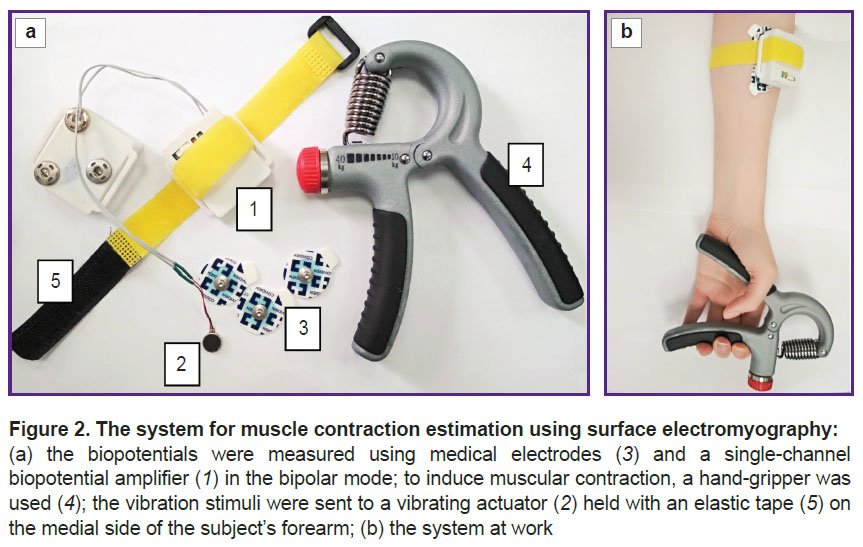

Figure 2. The system for muscle contraction estimation using surface electromyography: (a) the biopotentials were measured using medical electrodes (3) and a single-channel biopotential amplifier (1) in the bipolar mode; to induce muscular contraction, a hand-gripper was used (4); the vibration stimuli were sent to a vibrating actuator (2) held with an elastic tape (5) on the medial side of the subject’s forearm; (b) the system at work

In the experiment, the subject was asked to perform a series of monotonous exercises, such as periodically squeezing and relaxing a hand-gripper. We used a 260A hand-gripper (Pro-Supra, China) capable of adjusting the load within a range from 10 to 40 kg. For the experiment, a minimum load of 10 kg was selected.

To record the bioelectric muscle activity we developed an amplifier of electromyographic signals. The amplifier recorded the signals recorded by medical electrodes (H124SG Kendall™; USA) with a surface area of 30×24 mm and an AgCl-coating. The amplifier was placed on the pre-cleaned skin of the forearm. The distance between the electrodes was 2 cm as determined by the design of the amplifier (Figure 2 (b)).

Signals of muscle activity were processed in real time with a computer using custom-made software developed in the MATLAB environment. The main characteristic of the muscle contraction force was estimated as RMS (root-mean-square) of the signal values in the time window of 200 ms. Also, the threshold of the contraction force was defined as percent of the maximal force. According to the proposed feedback mode, when the RMS values exceeded the preset threshold, the vibration actuator triggered on.

Experimental protocol. Before beginning the experiment, we normalized the muscle activity. The subject maximally squeezed the hand-gripper, kept this tension level for a few seconds and then relaxed his grip. In this exercise, the system recorded the maximal and minimal RMS values, which were then taken for 0 and 100% of the muscle tension, respectively.

The experiment was performed both without the vibration feedback, and with it. In the first case, the subject periodically squeezed and relaxed the hand-gripper, guided by his/her own sensations, to a level of 20% of the maximal muscle tension. With the vibration feedback incorporated into the system, when the preset level was exceeded, vibration was activated. The vibration perceived by the subject signaled that the preset threshold of muscle tension was exceeded and that the subject was required to reduce muscle tension in exercise. It is known that a long-time exercise is followed by a decrease in the working capacity of muscles; therefore we limited the duration of the experiment by 1 min. During that period, the subject’s muscles did not reach the levels of fatigue; accordingly, the force of muscle contractions and the level of bioelectrical activity did not change.

During the experiment, electromyographic signals were recorded for further analysis. To test the quality of the feedback system, we counted the number of data points when the real RMS values exceeded the preset threshold. The number of such supra-threshold values was normalized to the total number of recorded RMS values and was defined as a “percentage of errors”.

Results and Discussion

Threshold of optimal perception under vibrostimulation. To determine the optimal parameters of vibration feedback, the perception of vibrations of different intensities was monitored. We proposed a number of requirements for vibration pulses: they should not cause unpleasant sensations, and they should be sensed by the subject both when relaxed and during exercise (periodic muscle contractions). The main characteristic that determines the intensity of vibrations is the pulse duration (see “Materials and Methods”). To assess the subject’s sensitivity to vibration, four levels of subjective perception were introduced: imperceptible, perceptible only with subject concentration on vibration, perceptible during exercise and unpleasant (irritating). As a result of the experiment, the cut-off values indicating the boundaries between these levels of perception were obtained.

The vibrations perceived as “mild” on average were greater than 0.5 ms (Figure 3, blue graph). Then the vibration intensity was enhanced by increasing the pulse durations. At that time, the sensations were recorded as reported by the subjects who focused his/her attention on vibration. At the next step, the subject was asked to squeeze the gripper and report the sensations. At rest, the vibrations were perceived through the entire range of pulse durations. At exercise though, the vibration was clearly perceived starting (on average) above 0.8 ms (Figure 3, green graph). At high intensities of vibration stimuli, the subjects reported unpleasant or irritable sensations. This (unpleasant) level of intensity was defined as the maximum (Figure 3, red graph) and varied from 0.8 to 2 ms (mean value was equal to 1.5 ms). Some subjects perceived vibrations generated by the vibration actuator, as comfortable even with a maximal pulse duration of 2 ms. The experiments were carried out for three days. Each day, three tests were performed at 1-hour intervals. There were no significant changes of boundaries between the vibration perception intervals from day to day or from hour to hour (ANOVA test, p>0.05).

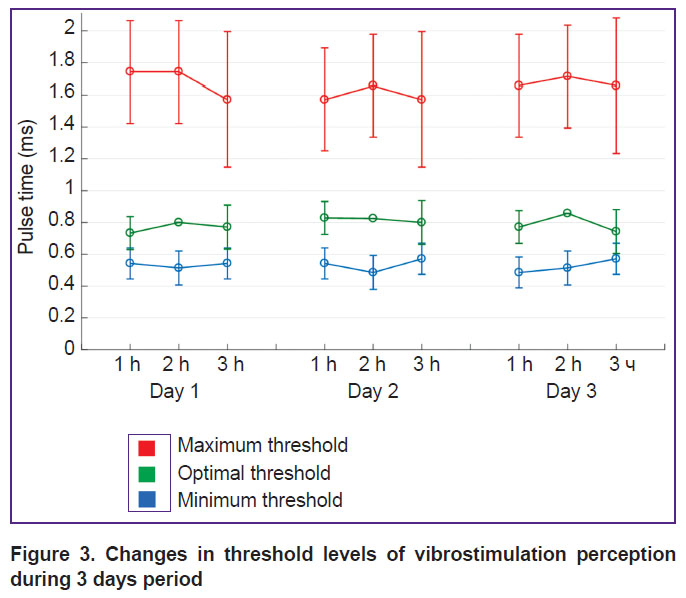

Figure 3. Changes in threshold levels of vibrostimulation perception during 3 days period

As a result, an intensity interval (from 0.8 to 1.6 ms) was found in which the vibrations were well perceived but caused no irritation. In the subsequent feedback experiments, the middle-range pulse (1.2 ms) was used.

Efficiency of the vibrotactile feedback. At the next stage, we studied the closed-loop system based on the vibrostimulation feedback. The main task was to create a system able to limit the muscle tension when the force of muscle contractions exceeded the threshold of 20% of the maximum. In this system, the vibration acted as a signal informing the subject that his/her muscle tension has exceeded the safe threshold; the subject was then supposed to reduce his/her muscle work. The experiment included squeezing-relaxing the gripper and simultaneously recording the electromyographic activity of subject’s forearm flexor muscles. To confirm the efficacy of the proposed feedback, two recordings were made: without and with the feedback. In the first run, the subject was asked to not exceed the threshold of muscle tension, as per his/her own judgement. Figure 4 (a) (on the left) shows the trace of RMS values; the dotted line indicates the previously estimated threshold. It can be seen that with each contraction, the RMS values exceed the preset threshold. Then, the experiment was re-run with the vibration feedback turned on. Here, the optimal pulse duration of 1.2 ms (found earlier, see Figure 2) was used. At the time the tension threshold was exceeded, the vibrostimulation got activated and continued until the RMS values dropped below the threshold level. In Figure 4 (a) (on the right), the trace of this experiment is presented. It shows that after the initial supra-threshold (erroneous) contractions, the subsequent muscle activity was almost entirely below the threshold value.

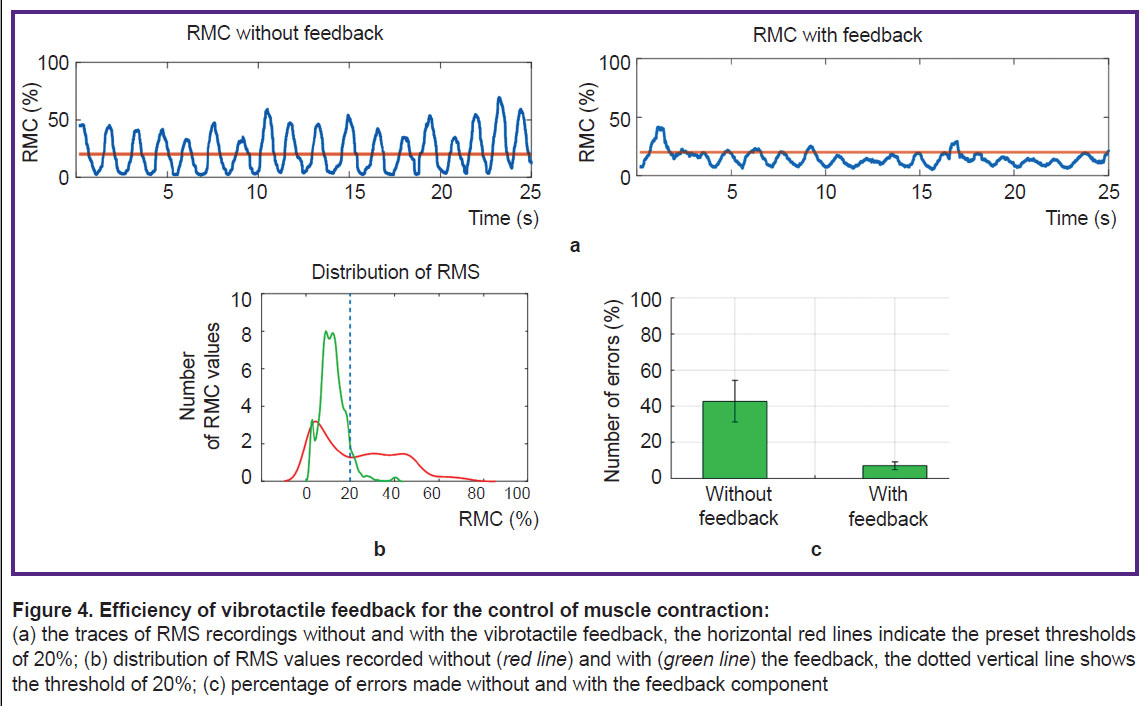

Figure 4. Efficiency of vibrotactile feedback for the control of muscle contraction: (a) the traces of RMS recordings without and with the vibrotactile feedback, the horizontal red lines indicate the preset thresholds of 20%; (b) distribution of RMS values recorded without (red line) and with (green line) the feedback, the dotted vertical line shows the threshold of 20%; (c) percentage of errors made without and with the feedback component

To illustrate the differences in muscle activity in the absence or presence of the feedback, we present the distribution of the RMS values in these two recordings (Figure 4 (b)). The results indicate that most of RMS values controlled by the feedback are below the threshold (dotted vertical line); without feedback the distribution curve looks different. To quantify the feedback efficiency, we counted the number of (erroneous) values that exceeded the threshold level. The percentage of errors (7±2%, n=3) clearly reflected the effectiveness of the feedback system in limiting the muscle contraction (Figure 4 (c)). Contrary to that, in the case without feedback the percentage of errors averaged at 42±12%; the difference between the two cases was statistically significant (t-test, p<0.01). This result led us to conclude that the system with vibrotactile feedback was significantly more effective in controlling muscle tension than the consciousness-driven control without any devices and based on subjective sensation.

Conclusion. Local vibrotactile stimulation using a miniature vibration actuator can be used as a biological feedback in medical research. The perception of vibrational pulses of various intensities remains fairly constant for several hours or even days, which validates using this type of information signal in human subjects. The vibrotactile feedback estimated from an electromyographic signal is perceived by a subject within hundreds of milliseconds and allows him/her to not exceed the preset muscle contraction threshold. The system is able to autonomously inform a person of undesirable and dangerous muscle contractions that may improve rehabilitation process. This biological feedback is physiologically reliable for human perception and can provide normal motor patterns formation.

Financial Support. The study was supported by the Russian Science Foundation (grant #15-19-20053).

Conflict of Interest is not declared.
