Transparent PEG-Fibrin Gel as a Flexible Tool for Cell Encapsulation

Introduction

One of the key issues in tissue engineering is the support of 3D growth of cells. For several decades, extracellular matrices derived from different sources have been used to achieve this goal. Such materials include collagen, fibronectin, laminin, and reconstituted basement membranes (e.g. Matrigel) [1]. Among them, fibrin is one of the most common biomaterials used for cell encapsulation due to its good biocompatibility and easy handling. It is formed from fibrinogen, which circulates in blood vessels, by catalytic cleavage caused by thrombin [2]. There are numerous approaches to modify fibrin physical properties. For example, we can regulate its density by changing pH, fibrinogen, and calcium ion concentrations, and thrombin and fibrinogen ratio and adding factor XIII [3]. However, fibrin gel has two main limitations: high degradation rate and opacity [2]. To overcome these obstacles, we can use chemical modification, e.g. PEGylation. This method permits us to conjugate protein with functionalized polyethylene glycol (PEG). PEGylation of fibrinogen allows the control of gel physical properties and degradation rate [4]. Therefore, it enables the long-term cell cultivation [5].

This study aims to was to modify the chemical structure and to optimize the composition of the fibrin gel for effective cell encapsulation.

Materials and Methods

Preparation of fibrinogen and thrombin solutions. We dissolved lyophilized fibrinogen and thrombin from bovine plasma (Sigma-Aldrich, Germany) in sterile phosphate buffered saline (PBS) at a concentration of 50 and 100 U/ml, respectively. Before their use, protein and enzyme solutions were stored at –20°C. Fibrinogen concentrations of 25, 30, and 40 mg/ml were prepared before cell encapsulation.

Fibrinogen modification. Fibrinogen was covalently bonded to PEG using O,O’-bis[2-(N-succinimidyl-succinylamino)ethyl]polyethylene glycol (PEG-NHS; Sigma-Aldrich, Germany). We diluted PEG-NHS in PBS at a concentration of 1.5 mg/ml and added it to fibrinogen solutions in molar ratios of 10:1 and 5:1 (PEG-NHS:fibrinogen). The reaction mixture was placed into a thermostat (37°C) for 2 h.

Fourier transform infrared spectroscopy and differential scanning calorimetry analysis. We lyophilized the solutions before testing. Fourier transform infrared (FT-IR) spectra were obtained using a Spotlight 400N FT-NIR Imaging System (Perkin Elmer, USA). Differential scanning calorimetry (DSC) was performed via a STA 6000 simultaneous thermal analyzer (Perkin Elmer, USA). The sample weight was 10 mg. Polymer destruction was carried out in a nitrogen medium at a gas flow rate of 40 ml/min and linear heating rate of 20°C/min. Mass losses were registered to 3–10 mg; the relative errors of temperature and thermal effect measuring were ±1.5°C and ±2%, respectively. Destruction process was described via temperature dependence of mass loss (thermal gravimetric analysis) and thermal effects (differential thermal analysis, DTA). We revealed the initial mass loss temperature for both modified and non-modified fibrinogen.

Primary culture of fibroblasts. The fibroblast primary cultures were obtained by a biopsy of the behind-the-ear skin regions. The biopsy was performed from a healthy volunteer who signed the informed consent. The 2×1×1 mm biopsy specimen was washed in Dulbecco’s phosphate-buffered saline supplemented with 1X antibiotic-antimycotic solution (Gibco, USA). Then, the dermis was dissected from the rest of the skin (epidermis, subcutaneous tissue, vascular structures) using scalpel and forceps. The resulting dermis preparation was washed with DMEM/F12, mechanically minced, then dissociated in a solution of collagenase I (Gibco, USA) (1 mg/ml) in the DMEM/F12 culture medium with a glucose concentration of 1 g/L. The preparation was incubated for 3 h using an orbital shaker with constant rocking and a temperature of 37°C. It was then washed from the enzyme with the culture medium, passed through a filter (100 μm; SPL Life Science, Korea) to remove the fibers and precipitated by centrifugation. The cell pellet was suspended in the complete DMEM/F12 (Gibco, USA) growth medium containing 1 g/L glucose, 10% fetal bovine serum, 1X GlutaMAX solution, and 1X antibiotic-antimycotic solution, and seeded in a culture flask (Eppendorf), based on the coverage of 1·10⁶ cells/cm² and cultured in a CO₂ incubator at 5% CO₂, 5% O₂ at 37°C until the 100% confluence of the monolayer was reached, then the cells were dissociated with 0.25% trypsin-EDTA (Gibco, USA) and the resulting suspension was used to prepare the hydrogel cell preparations.

Cell encapsulation. Cell suspension (50 μl) containing 3·10⁴ cells was distributed in 150 μl of fibrinogen solution. The sufficient volume of thrombin stock solution was added (fibrinogen to thrombin ratio: 1 mg to 0.2 U). This mixture immediately formed a gel and was cultured in a CO₂ incubator for 3–7 days.

Light microscopy was performed using a Primovert inverted microscope (Carl Zeiss, Germany).

Immunocytochemical analysis. Expression of markers in fibroblasts and in the fibrin gel was assessed by immunocytochemical analysis. The staining was performed in 35 mm dishes with a central coverslip hole (SPL Life Science, Korea). The growth medium was removed before the fixation and the gels were washed with PBS. The cell-containing hydrogels were fixed by addition of 4% buffered paraformaldehyde solution with 0.1% saponin for 30 min followed by washing with PBS with 0.1% Triton Х100, 0.1% Tween 20, and 0.5% normal goat medium (working buffer). As primary antibodies, we used antibodies to BCL2, collagen types I–IV, СD51/61, SMI-1, Ki67, vimentin. As secondary antibodies, we used goat anti-mouse and goat-anti-rabbit antibodies labeled with Alexa Fluor 488 and Alexa Fluor 633 (Alexa Fluor 488 goat anti-mouse IgG (H+L) and Alexa Fluor 633 goat anti-rabbit IgG (H+L); all 1:400; Life Technologies, USA). The cell nuclei were stained with Hoechst. To measure the proliferative activity of the cells in the fibrin gel, we applied two approaches: (1) using sections stained with antibodies to Ki67, we determined the proliferation index; (2) the use of a kit for staining proliferating cells Click-iT Plus EdU Alexa 647 Imaging Kits (Life Technologies, USA). Briefly: 2 days prior to fixation, EdU in the concentration of 5 µM was added to the hydrogels with the cells, then the preparations were fixed, and the cells which passed the S-phase of mitosis and incorporated EdU into the nuclear DNA were detected via the manufacturer protocol. The results of the fluorescence studies were analyzed using a Nikon A1 laser scanning confocal microscope (Nikon Co., Japan). The proliferation index was calculated as the percentage of Ki67/EdU-positive nuclei in respect to the total number of Hoechst-stained nuclei. All the calculations were performed in 5 repeats with 10 fields of view in each repeat.

Results and Discussion

Hydrogels prepared from PEGylated 5:1 and 10:1 fibrinogen were transparent compared to turbid pure fibrin gel. The fibrinogen chemical modification was proven via FT-IR analysis. Figure 1 demonstrates the corresponding FT-IR spectra of non-modified and modified (5:1, 10:1) fibrinogen and NHS-functionalized PEG. PEG-NHS has a specific succinimidyl ester triplet band (1739, 1782, and 1813 cm⁻¹), which was not revealed in the modified fibrinogen samples due to the reaction with primary amino groups caused by imide ring-opening [6, 7]. These samples had an increasing band at 1103 cm⁻¹, which indicates the insertion of PEG-derived (C-O) units and varies depending on molar ratio. Similar peaks were revealed for amide I and amide II bands at 1650 and 1532 cm⁻¹, which are present in PEG-NHS. The increasing succinimidyl ester and amide peaks characterized the successful fibrinogen modification.

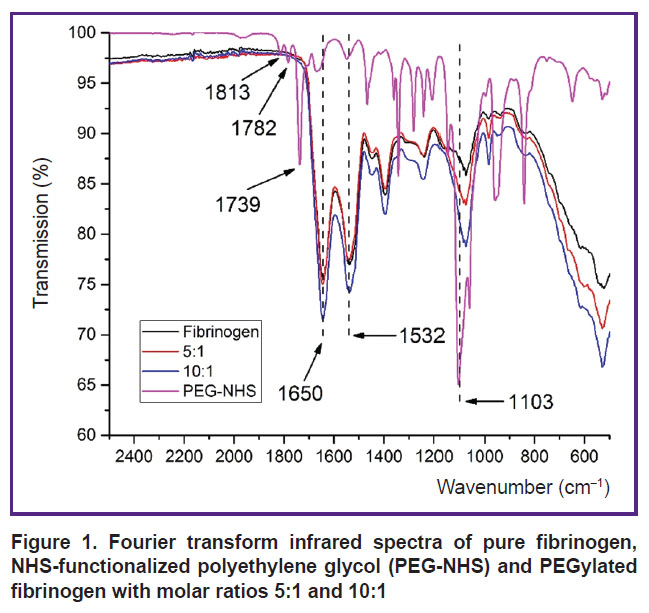

Figure 1. Fourier transform infrared spectra of pure fibrinogen, NHS-functionalized polyethylene glycol (PEG-NHS) and PEGylated fibrinogen with molar ratios 5:1 and 10:1

Figure 2 shows the temperature dependences of mass loss and thermal effects assessed for non-modified and modified fibrinogen. We revealed no significant changes in thermal stability for PEGylated 5:1 fibrinogen compared to non-modified one. However, PEGylated 10:1 fibrinogen had the decrease in the initial mass loss temperature from 270 to 250°C. This might be caused by the low thermal stability of macroradicals, which were formed due to thermal exposure and contained numerous PEG fragments. Moreover, fibrinogen modified 10:1 was more hydrated than others that was revealed because of a drop in a sample weight in a range of temperature from 50 to 90°C. Figure 2 also demonstrates that polycondensed structures (carbon residue) were formed due to macroradical interaction at 400–600°C and their content was app. 50% of sample weight. Such high carbon residue content is common for cross-linked systems [8]. However, as we can observe at DTA curves, the destruction process of all fibrinogen types occurred without remarkable stages.

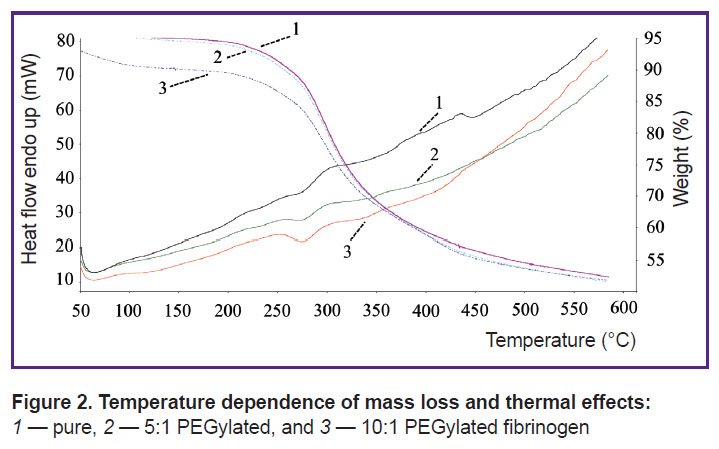

Figure 2. Temperature dependence of mass loss and thermal effects: 1 — pure, 2 — 5:1 PEGylated, and 3 — 10:1 PEGylated fibrinogen

During cell cultivation, gels retained their shape and external properties. Within them, fibroblasts were uniformly distributed (Figure 3). When they were encapsulated using both fibrinogen (PEGylated 5:1 and 10:1) concentrations 25 and 30 mg/ml, the cells had a spindle shape and formed a network. However, within PEGylated 5:1 fibrin gel with 25 mg/ml, the cells proliferated more actively than those within other gels, and no conglomerates of the cells or products of their apoptosis were observed (Figure 3 (a)). At higher PEGylation molar ratio and fibrinogen concentrations, the cells were spherical and hardly formed outgrowths (Figure 3 (c), (d), (g), (h)). This data corresponded with previously reported results with human umbilical vein endothelial cells and adipose-derived stem cells [9]. Thus, for the following analysis, we chose a gel with 25 mg PEGylated 5:1 fibrinogen per 1 ml.

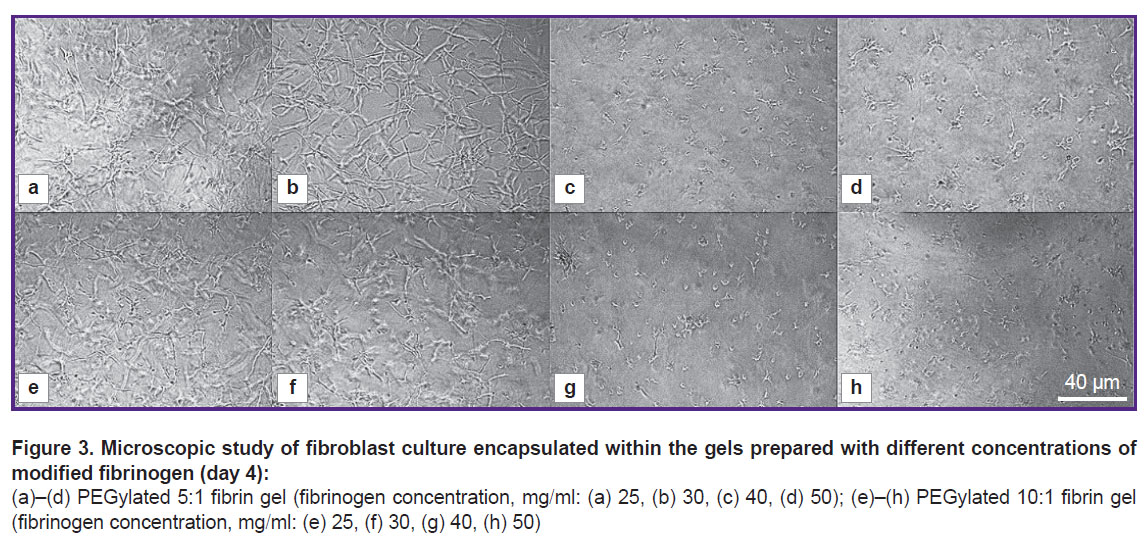

Figure 3. Microscopic study of fibroblast culture encapsulated within the gels prepared with different concentrations of modified fibrinogen (day 4): (a)–(d) PEGylated 5:1 fibrin gel (fibrinogen concentration, mg/ml: (a) 25, (b) 30, (c) 40, (d) 50); (e)–(h) PEGylated 10:1 fibrin gel (fibrinogen concentration, mg/ml: (e) 25, (f) 30, (g) 40, (h) 50)

The immunocytochemical analysis showed that fibroblasts in the hydrogel expressed fibronectin, BCL2, vimentin (Figure 4 (a)–(c)) and did not express integrin αVβ3, responsible for adhesion to fibrin. The expression of collagen types I–IV was also not found, probably, due to insufficient cultivation time.

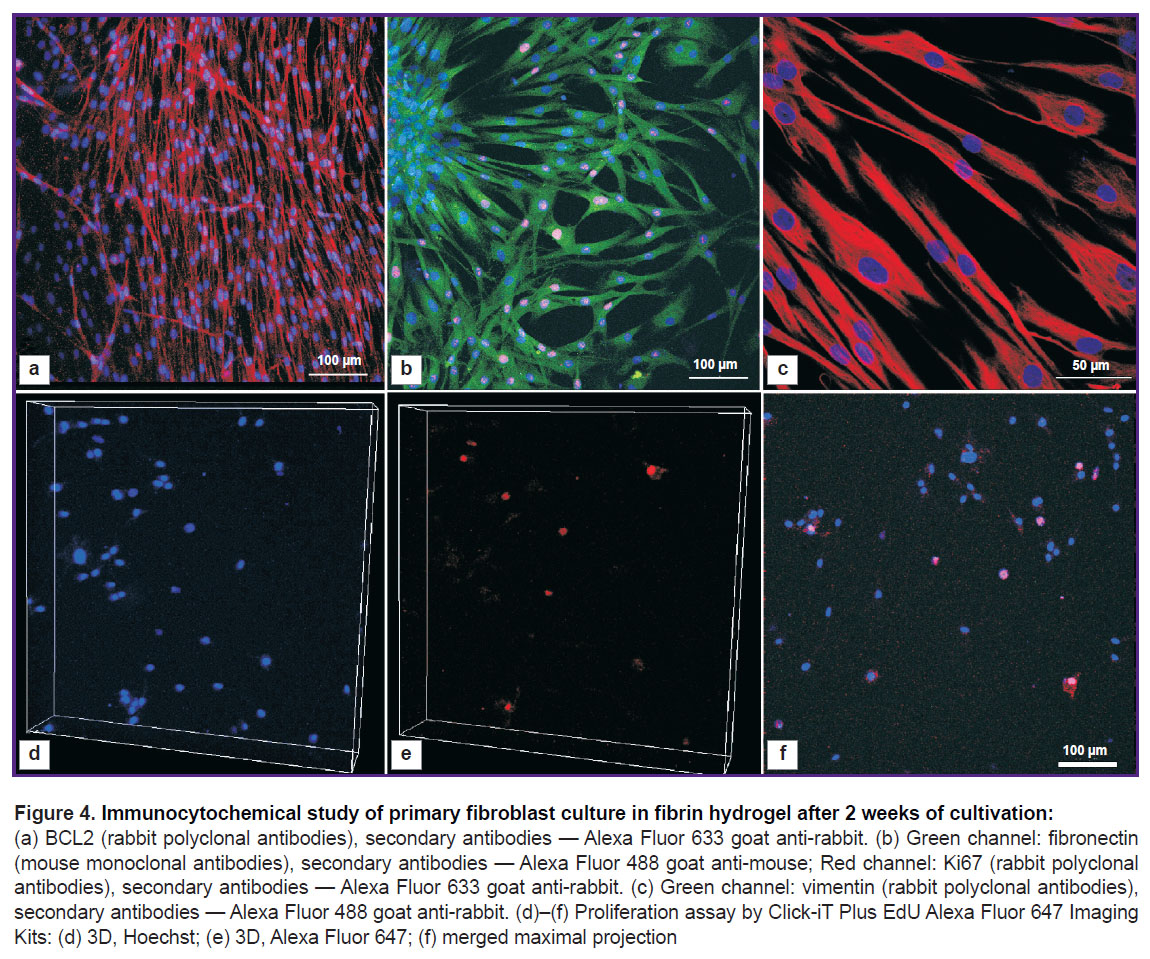

Figure 4. Immunocytochemical study of primary fibroblast culture in fibrin hydrogel after 2 weeks of cultivation: (a) BCL2 (rabbit polyclonal antibodies), secondary antibodies — Alexa Fluor 633 goat anti-rabbit. (b) Green channel: fibronectin (mouse monoclonal antibodies), secondary antibodies — Alexa Fluor 488 goat anti-mouse; Red channel: Ki67 (rabbit polyclonal antibodies), secondary antibodies — Alexa Fluor 633 goat anti-rabbit. (c) Green channel: vimentin (rabbit polyclonal antibodies), secondary antibodies — Alexa Fluor 488 goat anti-rabbit. (d)–(f) Proliferation assay by Click-iT Plus EdU Alexa Fluor 647 Imaging Kits: (d) 3D, Hoechst; (e) 3D, Alexa Fluor 647; (f) merged maximal projection

Immunostaining with Ki67 antibodies and Click-iT Plus EdU Alexa 647 Imaging Kits (Life Technologies, USA) showed that fibroblasts in the gel actively proliferated. The proliferation index in the hydrogel preparations measured via Ki67 oscillated from 3 to 5% averaging at 4.5±1.5%. When stained with Click-iT Plus EdU Alexa 647, the proliferation index was somewhat higher (since in this case all the cells passed the S-phase of mitosis after EdU addition are taken into account) and was 8.2±2.5% (Figure 4 (d)–(f)). In total, the obtained data testified that the optimal conditions for the growth and proliferation of primary dermal fibroblasts are created in the developed fibrin gels. Fibroblasts expressed specific markers and actively proliferated.

The mechanical cell-environment interactions provide various signals that control cell shape and function [10]. The presented fibrin gel diversity caused different cell adhesion in 3D [4, 11–13]. We used PEGylation to control the gel stability for long-term cell cultivation. Using the optimal parameters for covalent PEG binding to a protein molecule, we do not change the conjugate activity (e.g., receptor affinity, enzyme) [14]. PEGylation of fibrinogen had no influence on its ability to undergo enzymatic thrombin cleavage and cross-linking. We tested different PEG-fibrinogen molar ratios and fibrinogen concentrations to reveal the optimal gel composition. We selected 10:1 and 5:1 ratios to modify fibrinogen and its concentrations of 25, 30, 40, and 50 mg/ml [5, 15]. PEGylated fibrin gels remained transparent after adding thrombin. This is a great physical advantage, which allows us to analyze cells cultured within the hydrogel via a microscope. The behavior of the cells encapsulated correlated with the hydrogel density caused by the fibrinogen concentration and PEG-fibrin molar ratio.

Conclusion

PEGylation of fibrinogen allowed us to achieve the gel transparency and preserve its biocompatibility. We revealed that the gel prepared from PEGylated 5:1 fibrinogen (25 mg/ml) provided the most favorable microenvironment for spreading, growth, and proliferation of fibroblasts. This PEG-fibrin gel can be used for encapsulation of different cell types that is essential for various approaches in tissue engineering and diagnostic systems.
