Pedicle-Lengthening Osteotomy for the Treatment of Lumbar Spinal Stenosis: the Surgical Technique (Pilot Clinical Study)

Introduction

Stenosis of the lumbar spine is a narrowing of the spinal canal and/or intervertebral foramina. The most common cause of stenosis is a degenerative process that results in intervertebral disc herniation, hypertrophy of the facet joints, thickening of the yellow ligament and/or spondylolisthesis. Stenosis can develop at any level of the lumbar spine, but most often it occurs at the L₄–L₅ segment [1]. The main clinical manifestations of degenerative stenosis are low back pain, radiculopathy or radicular ischemia, and neurogenic intermittent claudication, which limits the ability of patients to maintain a vertical posture and move around. In elderly patients with severe stenosis or with severe comorbidity, conservative treatment becomes ineffective with time or brings only temporary improvement [2]. Surgical decompression (with or without associated spondylodesis) leads to a much better outcome as compared with conservative methods [3]. Traditional open surgical interventions, although effective in eliminating the compression of nerve structures, have a number of drawbacks; among them are the risks of significant blood loss, infectious complications, iatrogenic instability, perineural commissures and a long rehabilitation period [4]. In addition, the positive outcome — the pain improvement — can disappear with time and then more complex surgical intervention is needed [5].

Minimally invasive surgical approaches to the treatment of lumbar stenosis have a number of advantages, e.g. a significant reduction in muscle damage and blood loss, as well as a shorter period of hospital stay and rehabilitation. However, because of the flat “learning curve” and the risks of technical complications, surgeons choose to avoid these minimally invasive manipulations in cases of spinal stenosis [6–10]. The use of interspinous spacers is considered a low invasive option for the treatment of degenerative lumbar stenosis and can work well to result in a significant relief of symptoms in the sitting position [11, 12]. However, a number of studies found these spacers inconsistent for use, with some authors reporting a relatively high incidence of system failure and/or the need for a later revision surgery [13–15].

This work presents a new minimally invasive technology for a surgical removal of lumbar stenosis and an increase in the diameter of the spinal canal and intervertebral foramina by bilateral osteotomy and subsequent lengthening of the vertebral pedicles. This transcutaneous procedure is performed under X-ray control, similar to another surgical procedure — vertebroplasty.

The aim of the study was to substantiate this surgical modality and demonstrate its long-term results (clinical and radiological) obtained in patients with symptomatic lumbar stenosis.

Materials and Methods

This pilot prospective study included 20 patients with symptomatic stenosis of the lumbar spine, who underwent outpatient screening and subsequent elective surgical treatment in the Institute of Traumatology and Orthopedics of the Privolzhsky Research Medical University. The study was conducted in accordance with the Helsinki Declaration (2013) and approved by the local ethics committee. An informed consent has been obtained from each patient.

All patients were operated between January 2009 and October 2011. The long-term outcomes (≥78 months after surgery) were followed up in 19 patients; one patient died 13 months after the operation from causes not related to the treatment.

The general characteristics of patients are presented in Table. 1. All participants had symptomatic spinal lumbar stenosis and showed no improvement for at least 6 months of conservative treatment.

---

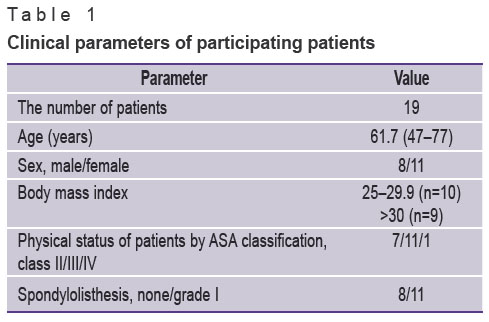

Table 1. Clinical parameters of participating patients

---

The study inclusion/exclusion criteria are shown in Table 2.

---

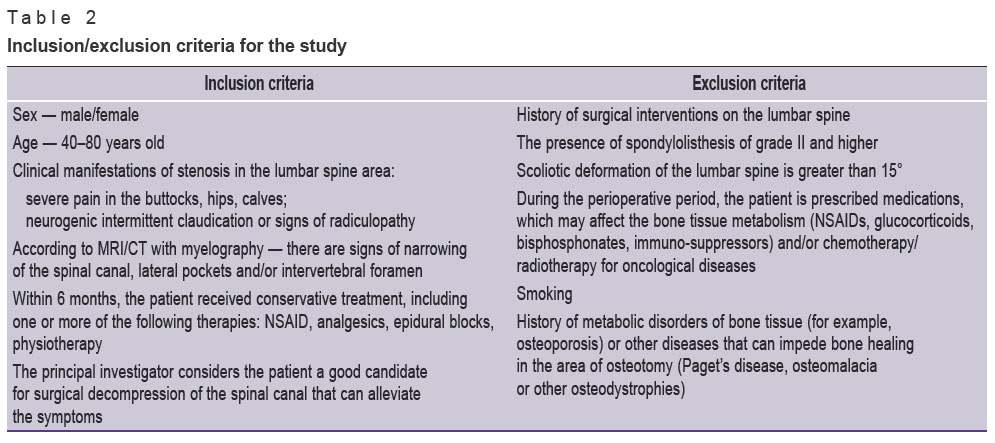

Table 2. Inclusion/exclusion criteria for the study

---

Evaluation of postoperative results. The treatment outcome was evaluated using several validated tests, including the Oswestry Disability Index (ODI, version 2.0) [16]; the Zurich questionnaire for assessing the quality of life in patients with intermittent claudication (Zurich Claudication Questionnaire, ZCQ) [17, 18]; the 10-mm visual-analogue scale (VAS); the SF-12 scale (version 2) with the physical component score (PCS) and mental component score (MCS) [19]. An assessment of patient’s condition was performed 2 weeks before the surgery and 1.5, 3, 6, 9, 12, 24, 60, and 78–96 months after it. During each follow-up visit, we conducted a physical and neurological examination of the patient and also assessed his/her condition using the above standard tests. On visits in months 1.5, 3, 6, and 9 after the operation, an X-ray examination of the lumbar spine in AP and lateral plains was performed. A CT scan of the lumbar spine was run before surgery and 6 months after it. An MRI test was performed only before surgery.

Surgical technique and pedicle-lengthening instruments. In the course of preoperative planning, the dimensions of osteotomy and pedicle-lengthening were determined considering the clinical manifestations. Surgery was performed under general anesthesia (n=18) or regional anesthesia (n=1); a C-arm (model 9800, General Electric, USA) X-ray equipment was used for guidance.

The device (implant) installed during the surgical procedure comprised of a two-section external screw that supports the body and the pedicles of the vertebrae, as well as an internal screw that can shift the ventral and dorsal parts of the outer screw against each other (Figure 1). By adjusting the position of the internal screw, one can expand the zone aimed for the osteotomy, and thus increase the diameter of the spinal canal and the intervertebral foramen. Upon completing the distraction procedure in the osteotomy zone, the implants get stabilized. Thereafter, they support the pedicles and keep them elongated until spondylodesis is completed.

---

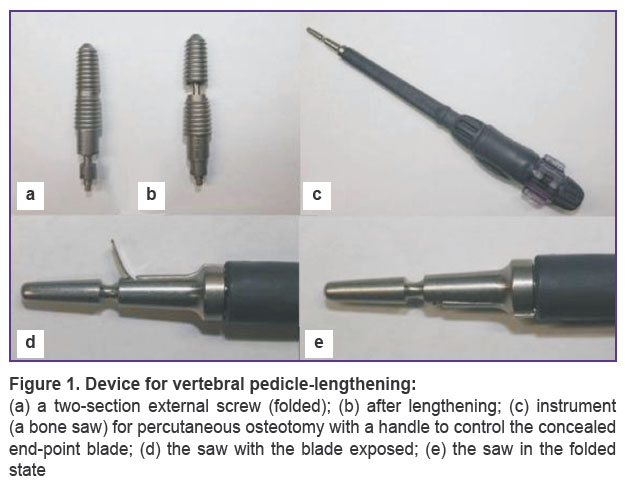

Figure 1. Device for vertebral pedicle-lengthening: (a) a two-section external screw (folded); (b) after lengthening; (c) instrument (a bone saw) for percutaneous osteotomy with a handle to control the concealed end-point blade; (d) the saw with the blade exposed; (e) the saw in the folded state

---

The operation procedure. With the patient in prone position and under the X-ray control, projections of the vertebral pedicles on the skin were determined and marked (Figure 2 (a), (b)). In the projections of the pedicle central axis, 10 mm long linear incisions were made. Then, a guiding rod of 2.7 mm in diameter was inserted through the central axis of the pedicle into each vertebral body bilaterally (Figure 2 (c)–(e)); along the rod, a cannulated dilator was inserted (Figure 2 (f)). The osteotomy was performed on the basis of the pedicle with the help of an original bone saw, inserted into the newly formed pedicle channel (Figure 1 (c), (d)) under the X-ray control (Figure 2 (g), (h)). This manual bone saw has a lateral retractable blade with a size controlled by the surgeon. By using sectoral rotational movements of the saw, under the X-ray and tactile control, the surgeon performs a stepwise bone resection (with a step of 0.5 mm), moving from the pedicle interior towards the outside until the cortical layer is destroyed. Further, the saw blade is concealed and can be moved further to resect other sectors of the pedicle. Upon the completion of the circular pedicle cutting, the saw is removed from the operation field to perform the similar procedure on the contralateral side.

---

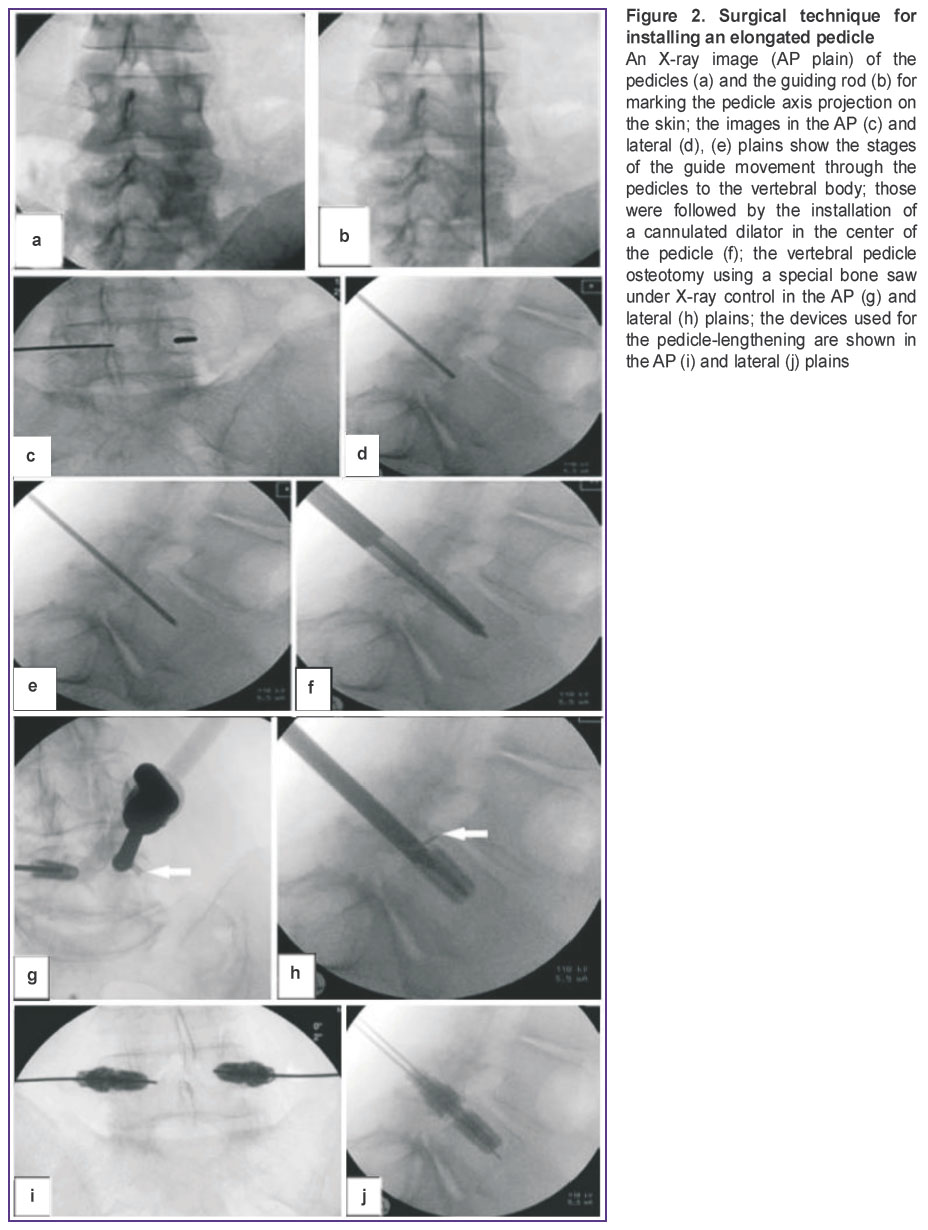

Figure 2. Surgical technique for installing an elongated pedicle An X-ray image (AP plain) of the pedicles (a) and the guiding rod (b) for marking the pedicle axis projection on the skin; the images in the AP (c) and lateral (d), (e) plains show the stages of the guide movement through the pedicles to the vertebral body; those were followed by the installation of a cannulated dilator in the center of the pedicle (f); the vertebral pedicle osteotomy using a special bone saw under X-ray control in the AP (g) and lateral (h) plains; the devices used for the pedicle-lengthening are shown in the AP (i) and lateral (j) plains

---

After the bilateral osteotomy of the vertebral pedicles is completed, expandable implants are inserted into the bone channel in such a way that their distal parts are located deeper than the osteotomy zone (see Figure 2 (g), (h)); then follows a simultaneous lengthening of both vertebral pedicles by 4.8 mm each. The installed implants create a space between the anterior (vertebral body) and the posterior (pedicles, endplates, facet joints) structures of the spinal canal. After an X-ray check, the structure is finally fixed with a special locking nut (Figure 2 (i), (j)). For the step-by-step operation procedure, see the video clip https://drive.google.com/file/d/13OdTvKyTDUcygpN_PFa_PPFyC3JuOw3A/view.

Skin incisions are sutured and more local anesthetics applied to reduce the severity of postoperative pain syndrome. There is no need for any additional immobilization in the postoperative period, however, to ensure the optimal healing at the osteotomy site, it is recommended to avoid twisting or bending movements at the lumbar spine for 6 weeks after surgery.

Morphometric analysis. CT scans of the lumbar spine, obtained in the preoperative examination and 6 months after the surgery, were analyzed using the Digital Earthwatch Software package (http://www.lawrencehallofscience.org/gss/rev/ip/). Two experienced vertebrologists evaluated the axial images of the spine at the height of stenosis; the vertebra width was used for the reference. A “rectangle” software tool with the formation of a closed polygon was used for the surface area measurement on each image at every 15–20 points to identify the spinal canal; the volume inside every polygon was calculated in pixels with the help of the software. The spinal canal cross-sectional areas on the preoperative and postoperative CT images were compared using the formula:

where ΔS — change in the area of the spinal canal (%); S_preop — the preoperative area value; S_postop — the postoperative area value

Statistical analysis. Comparison of the data obtained at the preoperative and postoperative examinations was performed using the Statistica 10.0 software packages. The spinal canal measurements were evaluated with the intra-class correlation coefficient (ICC). The ICC value of 0.90–1.0 was considered significant; 0.70–0.89 — as good; 0.50–0.69 — as satisfactory, and <0.49 — as poor. The treatment results were compared using the nonparametric Wilcoxon criterion for paired comparisons.

Results

Description of the surgical interventions. Specifics of surgical interventions including the placement of the implants are presented in Table 3. The single-level bilateral procedure was performed in 10 patients, and the double-level procedure was performed also in 10 patients. The L₅ (19 patients), L₄ (9 patients) and L₃ (2 patients) levels were the most common locations. In the double-level procedure, a combination of L₄ and L₅ was performed most often (8 patients). The average operation time of the single-level procedure (2 pedicles) was 63 min, and that of the two-level procedure (4 pedicles) — 118 min. The average time interval needed to complete an X-ray scan at the single and double level surgery was 2 min 15 s and 3 min 34 s, respectively. The blood loss during all operative interventions was minimal and did not exceed 10 ml.

---

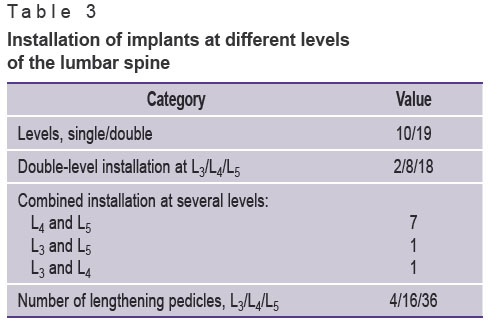

Table 3. Installation of implants at different levels of the lumbar spine

---

Complications. During the study, no intraoperative complications occurred. In the postoperative period, there was no inflammation in the operation area, no symptoms of nerve root damage, no increase in neurological symptoms, and no patient chose to switch to the open decompression. Adverse events were observed in 4 cases; the most notable were local muscle spasms that appeared within the first post-operation hours and usually resolved within 24 h; no further treatment was required.

In three patients, an incomplete response to the treatment was noted; that was either residual (1 patient) or recurrent (2 patients) lower extremity pain, which might be associated with an incomplete correction of lumbar stenosis. These patients then underwent a standard open surgical intervention 6–18 months later (two patients with concomitant degenerative spondylolisthesis had a posterolateral interbody fusion). During the open surgery, a complete healing of the osteotomy areas in the pedicles was confirmed; also the implants were found stable without affecting any of the surrounding neural structures. In one case, a unilateral instability of the implant was found. In this patient, after a double-level intervention, spinal stenosis was not accompanied by spondylolisthesis; this patient had the highest index of somatic comorbidity (grade IV according to ASA). In-depth examination revealed a marked osteoporosis in the patient, thus ruling out his participation in the study.

Results of the radiological study. All images were analyzed by an independent radiologist. According to AP and lateral X-ray scans taken 1.5, 3, 6, 9, and 12 months after surgery, there were no signs of incompetence, damage or element migration. One patient though developed a screw instability, which was visualized as a 2-mm shadow along the boundaries of the implant (see “Complications”). According to a CT scan taken six months after the closed osteotomy, a bone block was formed in the osteotomy area in all 19 patients (Figure 3). In no case were there any signs of heterotopic ossification in the spinal canal or intervertebral foramen.

---

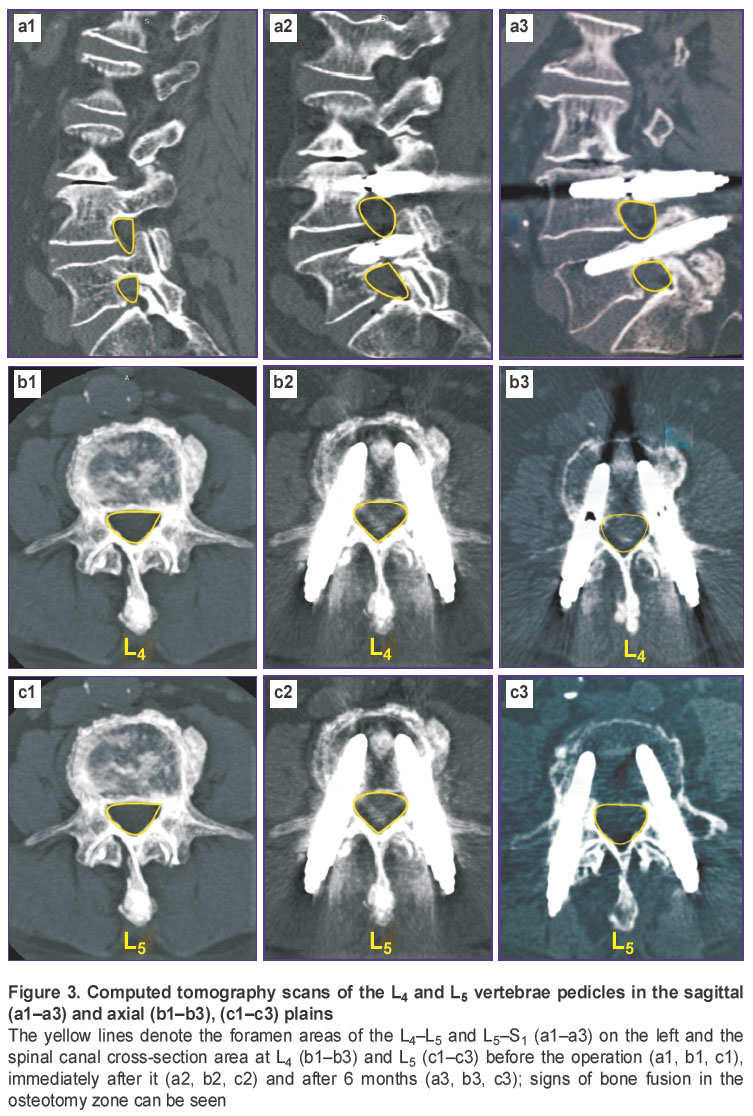

Figure 3. Computed tomography scans of the L4 and L5 vertebrae pedicles in the sagittal (a1–a3) and axial (b1–b3), (c1–c3) plains The yellow lines denote the foramen areas of the L4–L5 and L5–S1 (a1–a3) on the left and the spinal canal cross-section area at L4 (b1–b3) and L5 (c1–c3) before the operation (а1, b1, c1), immediately after it (a2, b2, c2) and after 6 months (a3, b3, c3); signs of bone fusion in the osteotomy zone can be seen

---

Morphometric analysis showed an increase in the cross-section area of the spinal canal in the postoperative period by an average of 15%, with a high degree of inter-expert reliability (ICC=0.88).

Clinical outcomes. The clinical examination results are presented in Table 4. According to every assessment test, the patients’ condition improved and the symptoms regressed over a period of 5 years. Although patients reported some deterioration in 6 years upon surgery, their quality of life, according to the questionnaires, remained significantly higher than that before the operation (Figure 4).

---

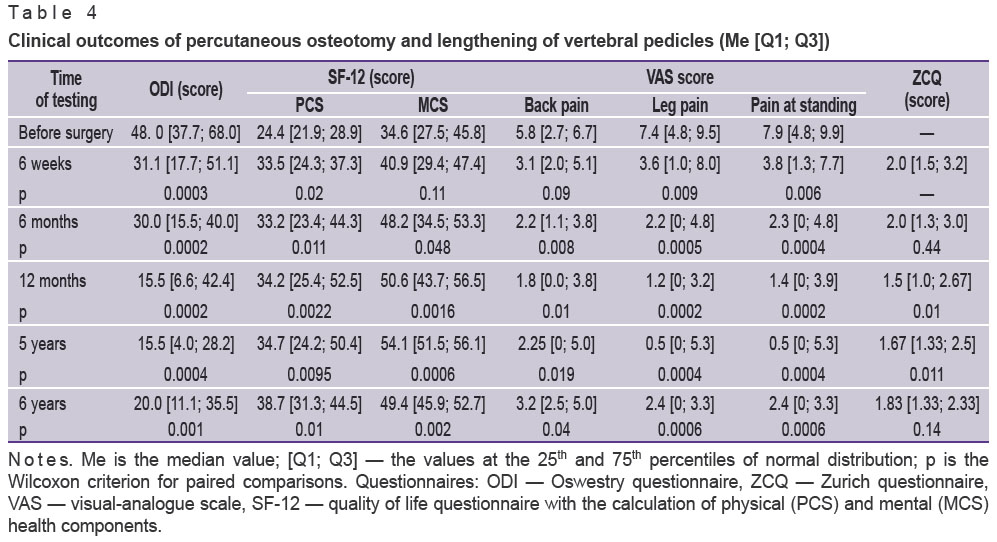

Table 4. Clinical outcomes of percutaneous osteotomy and lengthening of vertebral pedicles (Me [Q1; Q3])

---

---

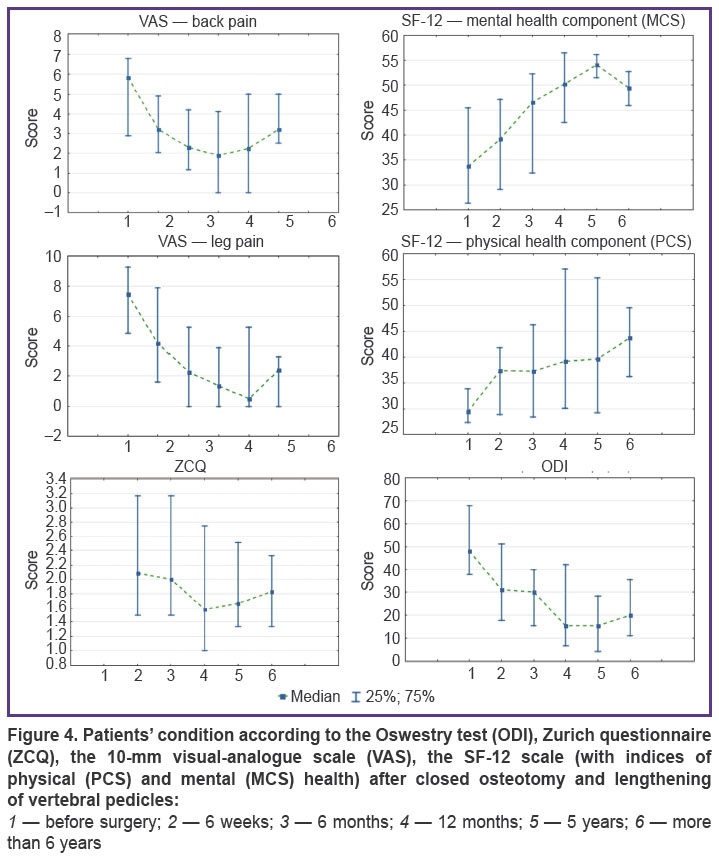

Figure 4. Patients’ condition according to the Oswestry test (ODI), Zurich questionnaire (ZCQ), the 10-mm visual-analogue scale (VAS), the SF-12 scale (with indices of physical (PCS)and mental (MCS) health) after closed osteotomy and lengthening of vertebral pedicles: 1 — before surgery; 2 — 6 weeks; 3 — 6 months; 4 — 12 months; 5 — 5 years; 6 — more than 6 years

---

In comparison with the preoperative period, the patients’ quality of life, by the Oswestry score, significantly improved from 48 to 15.5 points at 12 months (p=0.0002) and 5 years (p=0.0004), and to 20 points through 6 and more years (p=0.0001).

The SF-12 scores also provided evidence of a significant improvement in the quality of life in both the physical and mental health components throughout the observation period, except for the mental component in the early postoperative period (6 weeks).

The pain syndrome, according to the VAS, almost completely disappeared both in the back and the leg: it decreased from the pre-operative 5.8 and 7.4 points to 2.25 and 0.05 points after 5 years (p=0.0004). However, after 6 years or more, the pain syndrome partially returned (3.2 and 2.4 points by the VAS, respectively), but remained significantly less pronounced as compared to the preoperative period (p=0.04 and p=0.0006, respectively).

According to the Zurich scale for the quality of life of people with neurogenic intermittent claudication, the improvement in patients’ condition from 2.0 points (6 weeks after surgery) to 1.5 points at 12 months (p=0.01) and to 1.67 points after 5 years (p=0.011) was observed. However, after 6 years or more, the ZCQ score changed back to 1.83 points, which did not significantly differ from the preoperative level (p=0.14).

Discussion

At present, surgical treatment of degenerative stenosis of the lumbar spine is quite common. The traditional method of decompression includes a broad laminectomy, a removal of the yellow ligament and the arcuate joints followed by transpedicular fixation of the respective spinal segment. Such surgical interventions are inevitable in the presence of unstable spondylolisthesis and progressive kyphoscoliotic deformation of the spine. However, in other cases, the rationality of such large-scale operations is questionable, since they have no advantages over normal decompression, but can increase the risk of severe complications [20].

Traditional laminectomy remains the most common method of treating spinal stenosis at the lumbar level and provides satisfactory results in 56–85% of cases [21]. Yet, this approach has a number of drawbacks, including a significant injury to soft tissue, a risk of significant blood loss, and a wide resection of the posterior structures of the spine [22], which can lead to an iatrogenic instability of this segment. Therefore, alternative approaches, e.g. the use of minimally invasive technologies for the treatment of lumbar stenosis, have been explored. By now, this minimally invasive approach is not considered the gold standard technology because of its rather steep “learning curve” and a significant risk of technical complications [23]. In addition, the available data is still insufficient to compare the open decompression and the minimally invasive technique used in the treatment of stenosis of the lumbar spine [23–25].

In this study, we present an original technique for closed osteotomy and lengthening of the vertebral pedicles; the treatment resulted in an increase in the transverse dimensions of the spinal canal. Yamazaki et al. demonstrated that dural sac decompression was essential for a good clinical outcome of such treatment [26]. Siddiqui et al. showed an increase in the transverse dimensions of the spinal canal by 21% by using an interosseous X-stop implant, which, according to the authors, led to good clinical results [27]. In our study, persistent improvement in patients’ condition was achieved by increasing the size of the spinal canal cross-section up to 15%.

Patients having spinal canal stenosis with spondylolisthesis and without it who underwent conservative treatment or traditional decompression (patients with spondylolisthesis were additionally subjected to instrumental spondylodesis) were included into the SPORT trial [3, 28]. 12 months after the intervention, patients without spondylolisthesis were found to improve their state by 21.0±1.0 points according to Oswestry Disability Index (ODI score before the operation was 43.0) which was statistically significantly higher compared to the group receiving conservative treatment (improvement by 8.9±1.1 points). Using the described method we observed the improvement in the patients’ condition by 18 points (as evaluated by the Oswestry Disability Index) after 6 months and then persistent improvement by 33 points during 5 years.

In the SPORT trial [3, 28], the following complications of the traditional laminectomy were noted: the need for a blood transfusion (in 10% of cases intraoperative, and in 5% — postoperative), and the damage to the dura mater — in 9% of cases. Contrary to that, in the present pilot study on closed osteotomy and lengthening of the pedicles, no damage to the dura mater was observed and no blood transfusion was required. In the SPORT study, a long-term patient follow-up revealed a partial reverse of the positive treatment outcome after 8 years; moreover, in 5 years after the surgery, there were no significant differences between the surgical and conservative treatment groups. In the present study, a trend towards some deterioration in patients’ condition was also noted after 6 years or more, but the quality of life, according to the used scales, remained significantly higher vs the preoperative period (see Table 4, Figure 4). The closed pedicle osteotomy with the subsequent pedicle-lengthening results in a decompression of the spinal canal affected by lumbar stenosis without sizable traumatization. Following this min-invasive procedure, the soft tissues and bones of the spine are preserved; the procedure itself is associated with a low risk of intraoperative blood loss or infections. The risk of developing a perineural cicatricial/commissural process is also minimal because no manipulations in the vicinity of nerve roots are performed. By preserving the anatomical integrity of the spine ligaments, the present technique allows the surgeon to prevent the development of instability, a known complication of traditional laminectomy [29, 30].

Closed osteotomy and lengthening of the vertebral pedicles can become a method of choice for chronically ill patients, where the traditional open decompression may be associated with high operation risks. The use of frequent X-ray sessions, however, is seen as a disadvantage of the proposed procedure as it adds extra stress on the patient and the operating team; in the future research it should be optimized or replaced with other technologies (navigation, robotic assistance).

Among the limitations of this study are a small number of patients and the absence of a control group. In the future, a large prospective study is needed to determine the relative value of this technology among other treatments for lumbar stenosis. Also, a prolonged follow up is needed to determine whether the positive outcome of this treatment persists.

Conclusion

Percutaneous osteotomy of the vertebral pedicles with their subsequent lengthening is a novel and promising treatment modality for patients (especially the elderly) with symptomatic lumbar spinal stenosis with or without concomitant grade I spondylolisthesis. The results of this pilot study with a follow up of more than 6 years indicate a good immediate and long-term outcome of this method. Further studies are needed to determine the relative value of this technology among other treatments for lumbar stenosis.
