Optimized Bioinformatic Strategy for the Analysis of Clinical Proteomic Data of the Endometrium in Chronic Endometritis

Introduction

Impaired female fertility, recurrent miscarriages, and unsuccessful attempts of in vitro fertilization/embryo transfer often result in chronic inflammatory diseases of the uterus. (Among them is chronic endometritis — a frequent disorder in women of reproductive age). The disease develops “silently” without specific symptoms, and so the classical diagnostic methods are not applicable [1–4]. Hysteroscopy and morphological examination of the uterus is the gold standard of the current diagnostic procedures; however, the ability of hysteroscopy to diagnose initial signs of endometritis is limited by the resolution of the optical instrument. Consequently, hysteroscopy based on macroscopic evaluation can detect chronic endometritis in only 35–40% of cases. Therefore, clinicians need alternative diagnostic methods, safe and informative, for examining such a vulnerable tissue as endometrium [5, 6].

It has been proved by now that chronic endometritis is involved in the development of endometrial cancer by methylation of the tumor suppressor genes and by modifying the local immune and systemic inflammatory response, although the importance of this involvement is not precisely determined [7]. The molecular and pathogenetic mechanisms of this relationship are barely elucidated in the literature; rather the malignancy is attributed to the formation of focal or diffuse epithelium proliferation and the occurrence of hyperplasia, which is characterized by a high recurrence rate and potential for malignancy [8]. The above factors necessitate more research into the endometrial pre-cancer condition, specifically, into molecular biomarkers of endometritis, as well as into markers of neo-angiogenesis and proliferation. On that base, a screening system to identify early signs of malignancy in the endometrium can be developed.

It is known that inflammation is often associated with subsequent cancer by contributing to the development and progression of malignant tumors. In recent years, there is growing evidence of the significance of the local immune response and systemic inflammation in the progression of tumors and the survival of cancer patients [9, 10]. Therefore, the elucidation of inflammation and carcinogenesis molecular markers is highly important for early diagnosis of cancer and for new modalities of targeted therapy involving the patient’s immune system.

The proteomic approach based on protein identification by tandem mass spectrometry coupled with high-performance liquid chromatography (LC–MS/MS) meets most of the criteria for “screening” analysis of clinical material. The LC–MS/MS is used for large-scale qualitative identification of proteins in biological samples. It is characterized by the multiplexity within hundreds of individual proteins in a single sample, the sensitivity in range of pico- and femtomoles of single protein, and a dynamic range of 4–6^th orders of magnitude, which is close to the protein concentrations in human tissues. Currently, the proteomic analysis of the endometrium is used in clinical medicine not only in endometriosis [11], but also in endometrial cancer [12], infertility [13] and in women with pregnancy-induced changes [14].

The OMICS technologies differ from other methods of molecular biology by the quantitative and qualitative characteristics of the acquired data. As a rule, these are global (as in the case of genomic and transcriptomic techniques) or local (typical for proteomics) sets of biomacromolecules (DNA, mRNA or proteins, respectively). To describe such a “molecular phenotype”, genomic and post-genomic technologies are coupled with computer-assisted data processing.

The basic concept of the OMICS technologies implies that: a) essential biological information is contained in a set of identified genes or their products (mRNA, proteins); b) each element of a living system functions in conjunction with a specific set of other elements. Accordingly, the purpose of most OMICS data interpretation methods is to annotate (i.e., assign a functional characteristic to) individual biomacromolecules and then reconstruct the significant interactions between them. The computational tools of genomic and post-genomic technologies utilize the variety of available biological information obtained by experimental methods and deposited in systematized public databases. In most cases, the interpretation of OMICS data is predictive and based on specially developed methods of statistical analysis.

The most common computational approach in this area is the so-called gene set enrichment analysis (GSEA) [15]. In the GSEA, the principle of cluster analysis is applied to sets of biomacromolecules, which makes it possible to adapt this method to specific OMICS technologies.

It has to be emphasized though that today, the stage of generalization and data analysis is a “bottleneck” that significantly limits the scientific and practical value of transcriptomic and proteomic tests. Therefore, the optimization of systemic analysis and interpretation of OMISC data is an urgent task.

The present study is a pilot project aimed at searching for protein markers of malignancy in women with clinically confirmed chronic endometritis; we used mass spectrometry for protein identification followed by bioinformatic analysis. For this purpose, we used a number of methods to assess the tissue specificity of the identified proteins; we also applied an optimized cluster analysis to the gene set enrichment method.

Materials and Methods

The study involved women of reproductive age with the histologically confirmed diagnosis of chronic endometritis. Informed consent was obtained from all participants. The work was carried out in accordance with the Helsinki Declaration (2013) and approved by the Ethics Committee of the Privolzhsky Research Medical University.

All patients underwent endometrial pipelle biopsy; the tissue samples were then placed in a buffer solution. After homogenization, the samples were subjected to protein electrophoresis in polyacrylamide gel in the presence of sodium dodecyl sulfate according to Lamley method. The proteins separated by their molecular weights were treated with modified trypsin (Promega, USA). The resulted tryptic peptides were analyzed and identified by high-performance liquid chromatography coupled with tandem mass spectrometry (Orbitrap Velos Pro apparatus; Thermo Scientific, USA). For protein identification, the UniProt database (release 2014) was used.

Tissue-specific expression was analyzed using the Human Protein Atlas [16] and Tissue-Specific Gene Expression and Regulation (TiGER) databases [17].

Functional annotation of the proteins and their analysis by GSEA were performed using the Database for Annotation, Visualization and Integrated Discovery (DAVID v. 6.8) bioinformatics resource [18, 19].

Results

The endometrial tissue homogenates were first subjected to electrophoretic protein separation by molecular weights followed by trypsinolysis. The analysis of the tryptic fragments by using LC–MS/MS and the subsequent mass spectrometry allowed us to identify 103 different proteins.

In accordance with the objectives of this study, the presence of these proteins in various tissues was manually evaluated. According to the information from the Human Protein Atlas and TiGER, 83 of these proteins are present in tissues of the female reproductive system. Blood plasma proteins were also identified. This was an expected result because the endometrial biopsy material inevitably contained blood components.

It needs, however. to be emphasized that the manual analysis of tissue specificity with the help of databases cannot be considered the optimal method for interpreting clinical proteomic results. The impossibility of statistical evaluation of the results is a major disadvantage of the described approach. Considering the fact that the overwhelming majority of proteins are expressed at various concentrations in diverse tissues, practical significance of this approach is regrettably small.

At the next stage of this study, we used DAVID (v. 6.8) bioinformatic resource for functionally annotating the proteins identified in the endometrial tissues. The list of proteins was analyzed by the GSEA method using the standard clustering parameters. Unfortunately, the obtained results were not informative, because the proteins were combined into groups with low functional specificity; that was the blood micro-particles (GO: 0072562), the intercellular space proteins (GO: 0005615), and the signal peptides. We consider this result to be due to the high universality of the DAVID resource. It is known that the GSEA method is most commonly used for differentially expressed genes (i.e., transcriptome analysis), which is reflected in the set of parameters proposed “by default”. However, the transcriptomic and proteomic data are fundamentally different from each other, both quantitatively and qualitatively.

Therefore, when choosing the optimal cluster parameters for protein detection with mass spectrometry from the CGAP_SAGE_QUARTILE (The cancer genome anatomy project / Serial analysis of gene expression) (see the Table), the main grouping factor was the association between the protein expression and the pathogenesis of female reproductive system cancers.

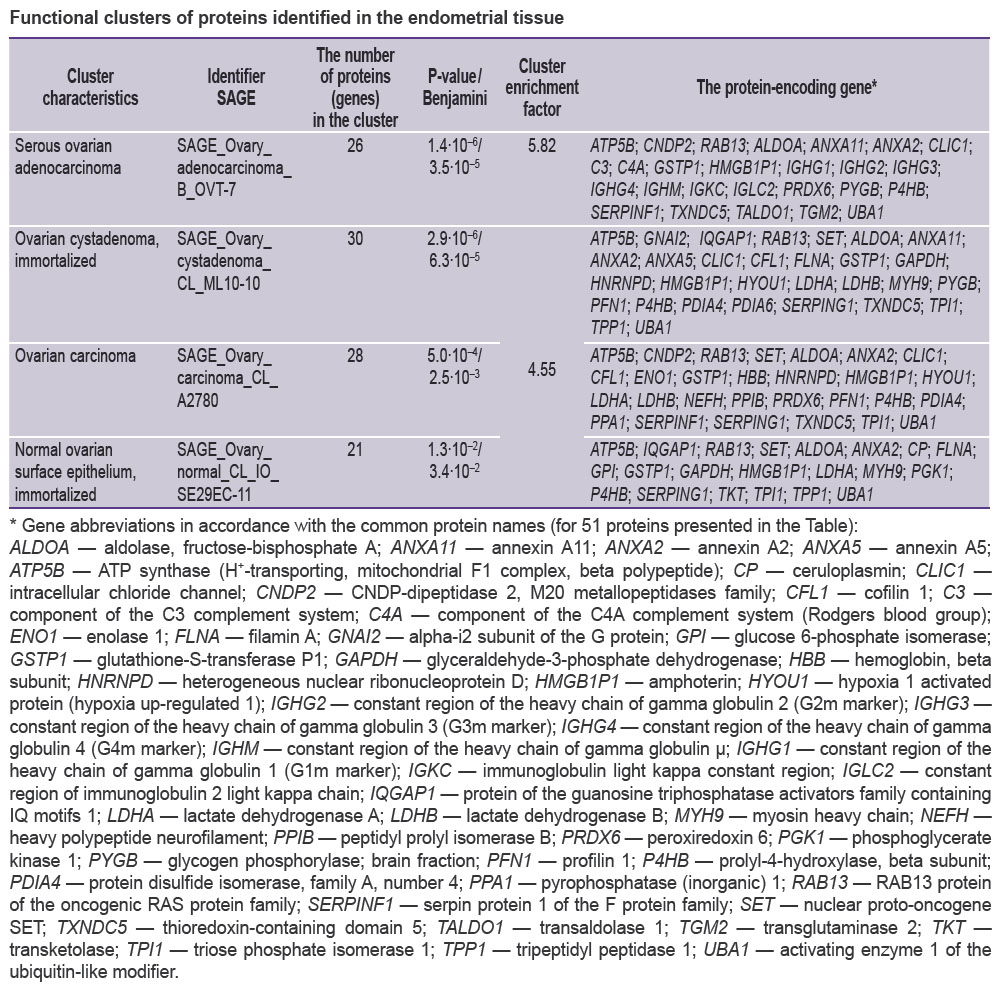

Functional clusters of proteins identified in the endometrial tissue

It was found that 51 proteins (49.5% of the original list) were encoded by genes differentially expressed in cell cultures of the female reproductive organs. In addition, four groups of proteins typical for tumor cells (immortal ovarian cystadenoma, ovarian carcinoma) as well as for the immortalized normal ovarian surface epithelium were detected.

These results demonstrate the significance of these proteins in the development of physiological and pathological processes in the cells of female reproductive system. Being a pilot project, this study provides a serious basis for further research in this area, for instance, an assessment of the clinical relevance of the identified proteins.

Conclusion

This pilot proteomic study resulted in identification of proteins expressed in the human endometrium. Using current bioinformatic methods, we were able to annotate these proteins into functional clusters according to their involvement in carcinogenesis.

The obtained data can serve as the starting point for further in-depth studies of the endometrium using the proteomic approach, as well as other OMICS technologies. The application of bioinformatics is expected to further elucidate the molecular basis of the inflammatory process in the endometrium and the occurrence of hyper- and neoplasia of the uterine mucosa.

Research funding. In this study, the equipment from the “Human Proteome” Core Facility, Institute of Biomedical Chemistry (IBMC) was used.

Conflict of interest. The authors did not claim any conflict of interest.
