Contrast Sensitivity and Color Vision as Biomarkers of the Preclinical Stage of Neurodegeneration in Huntington’s Disease

Introduction

Huntington’s disease (HD) is a steadily progressive neurodegenerative disease with an autosomal dominant mechanism of inheritance caused by mutation in the huntingtin (HTT) gene [1]. The prevalence of HD in the Caucasian race is 3.0–13.7 per 100,000 people [2–5]. Mutation in the huntingtin gene is presented by the increase of cytosine-adenine-guanine (CAG) repeats [6], with the disease developing in 100% of carriers when the number of repeats exceeds 39.

Two stages are distinguished in HD: pre-manifest and manifest [7–8]. The appearance of the typical motor symptoms is considered manifestation, the patient age at the time of manifestation being correlated with the number of CAG repeats [8]. The median of survival after the debut of the motor symptoms is 18 years [9].

A monogenic inheritance, high penetrance, and exceptional opportunity of following-up patients at the asymptomatic stage allow HD to be considered as a “model” disease for studying early stages of the development of sporadic neurodegenerative diseases such as Alzheimer’s and Parkinson’s diseases [10].

Damage to the central and peripheral parts of the visual analyzer and associated visual dysfunction is typical for various hereditary and sporadic neurodegenerative diseases [11–13]. In HD, decrease of the white and grey matter volume in the brain occipital lobe (according to the magnetic resonance imaging data); amplitude reduction of the visual evoked brain potentials [14]; diminishing of the choroid thickness and a layer of the retinal nerve fibers (according to the optical coherence tomography) [15–17]; accumulation of huntingtin in the layers of the retina (in the experiment) [18] are noted. Single works are devoted to sensory visual functions where visuospatial disorders [19] and contrast sensitivity (CS) reduction in manifest HD are considered [20]. The analysis of color vision using quantitative methods has not been performed.

The aim of the investigation was to study the contrast sensitivity and color vision in patients with Huntington’s disease, their correlation with clinical and genetic characteristics, and the possibility of using the ophthalmological parameters as biomarkers of the early stage of the neurodegenerative process and indicators of disease severity.

Materials and Methods

The participants of the investigation were divided into the main and control (conventionally healthy people and volunteers) groups. The criterion of inclusion into the main group was molecular genetic confirmation of Huntington’s disease. Subjects with HD were at the pre-manifest and manifest stages of the disease. The criterion of inclusion into the control group was absence of significant ophthalmological and neurological pathology and known hereditary illnesses found by family history-taking.

The common criterion of exclusion in both groups included traumatic brain injury, cerebral circulation disorders, diabetes mellitus, hypertonic disease, ischemic heart disease, and other systemic illnesses with visual organ damage in the history. Patients with focal brain pathology found by computed tomography or magnetic resonance tomography were also excluded from the study.

The study complied with the declaration of Helsinki and was performed followed the approval by the Ethics Committee of Privolzhsky Research Medical University. Written informed consent was obtained from all the participants before the beginning of the study.

Genetic and neurological examination. All patients of the main group were tested for mutation in the HTT gene and identification of CAG repeats in this gene (Molecular Genetic Center, Moscow). The neurological examination included taking life and disease history, hereditary history, pedigree formation, clinical examination of the nervous system. Motor disorders were evaluated using the Unified Huntington’s Disease Rating Scale (UHDRS), disease duration was determined from the time of manifestation.

The cognitive functions in the control group were assessed according to the Mini-Mental State Examination scale. The score less than 26 served as an exclusion criterion.

Ophthalmological examination. The basic examination in the main and control groups consisted of history-taking and objective investigation of both eyes including autorefractometry, visometry, tonometry, biomicroscopy, ophthalmoscopy, and the assessment of the vision character by means of the Worth’s four dot test. Color vision was evaluated using Rabkin plates; depending on the number of unreadable plates three grades of dyschromatopsia were distinguished: light (1–9 plates), medium (10–15 plates), and severe (over 16 plates).

Excluded were patients with the best corrected vision acuity below 0.8, ametropia and astigmatism of the medium and high severity degree, intraocular pressure over 22 mm Hg (according to Maklakov), any significant medial opacity at the time of examination, diseases in the history and found on examination (primarily, glaucoma or suspected glaucoma), sequels of injuries and operative interventions on eyes.

Determination of color differentiation thresholds. All tests for CS and color vision in both groups were carried out before pupil dilation in one and the same room under photopic conditions with artificial illumination using a 17” LCD monitor at constant settings of lightness (100%) and contrast (100%).

Color differentiation thresholds were determined by a computer-assisted campimetry test based on ApWay.ru Web platform [21–24] under binocular conditions at a distance of 1 m. The stimulus and background parameters were programmed in compliance with a color HSL model being the best for human color perception and intuitively clear [24, 25]. In the HSL model, color is determined by three parameters: a hue, saturation, and lightness. The saturation and lightness were set constant while a stimulus hue and shape were variables.

The stimulus represented a monochrome color spot in the form of a geometric figure (Figure 1), the stimulus and background hue were assigned in degrees according to the HSL model (Figure 2).

---

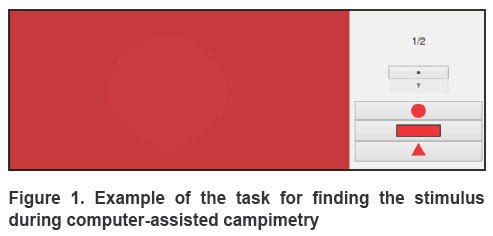

Figure 1. Example of the task for finding the stimulus during computer-assisted campimetry

---

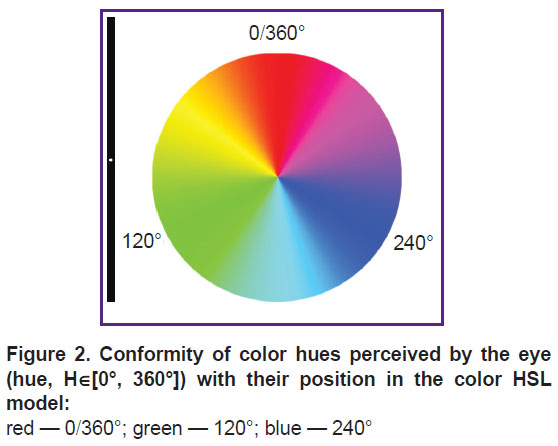

Figure 2. Conformity of color hues perceived by the eye (hue, H∈[0°, 360°]) with their position in the color HSL model red — 0/360°, green — 120°, blue — 240°

---

The study algorithm consisted of 11 tasks for stimulus searching. The first task served as an explanation, the second was trial, and further the tests were conducted in a random order for discrimination of different hues of the red (350°, 0°, 10°), green (110°, 120°, 130°), and blue (230°, 240°, 250°) colors. The participants were asked to define the shape of the color spot. At the beginning of the task, the hues of the background and spot were similar, the color was controlled by a patient who, by clicking the mouse button, changed the color by 1° till he found the stimulus. When the stimulus is detected, the spot shape should be named verbally and the model figure shown with a mouse click or with a finger on the screen (in case of motor disorders) (see Figure 1). The number of mistakes made in determining the spot shape by clicking and naming was registered. The difference between the hue of the stimulus and background at which the patient defined the spot shape was considered a color differentiation threshold. During the analysis, the greatest value of the three color differentiation thresholds was used for the hues of red, green, and blue colors.

Measurements of contrast sensitivity. The CS was assessed using a freely distributable software Freiburg Vision Test (FrACT), 3.9.3 version, recognized to be informative and sensitive for CS examination in neurodegenerative diseases [26, 27]. According to the recommendations (http://michaelbach.de/fract/), the contrast of optotypes was set in the program settings at 100%, the dark stimulus on the light background, the stimulus diameter at 50 angular minutes. The contrast (C_W) was calculated by the program using Weber’s formula (C_W=Lb–Lt)/Lb), where contrast is the ratio of the difference of the object (Lt) and background (Lb) lightness to the background lightness. The CS value is the inverse of the CS threshold. The CS threshold was automatically calculated by the program using best PEST (Best Parameter Estimation by Sequential Testing) [28] algorithm. The value of CS logarithm (logCS=log(1/C_W)) characterized by normal distribution was used for analysis. The examination was performed monocularly at the 1.5 m distance. The CS examination consisted in presenting on the screen a Landolt broken ring optotype with a constant diameter but different contrast relative to the background (Figure 3). The examined patient was to show the direction of the ring gap by a key click (the protocol included 18 tests carried out after learning).

---

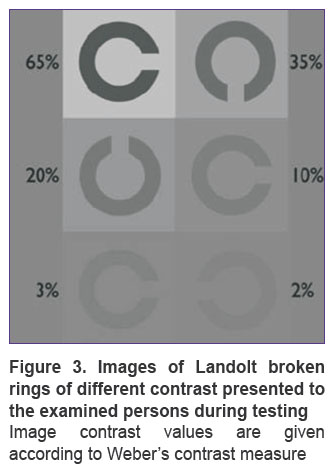

Figure 3. Images of Landolt broken rings of different contrast presented to the examined persons during testing Image contrast values are given according to Weber’s contrast measure

---

Statistical analysis was performed using the applied SPS 22.0 software package for Windows. Continuous variables were presented as M±SD, where M is arithmetic mean, SD is standard deviation. The normality of distribution was tested using Shapiro–Wilk test. To compare two groups with normal distribution of the variable and equal dispersions, the Student’s t-test was applied for independent samples, in other cases, the nonparametric Mann–Whitney U-test was used. To analyze the categorical variables (gender), χ² criterion was employed. Relations between the parameters of visual functions and clinical and genetic characteristics were investigated using Pearson correlation coefficient (r) presenting statistically significant correlations the dependences with a notable binding force were depicted graphically (according to the Cheddok scale, r>0.5)

In order to assess the diagnostic value of the ophthalmological parameters for revealing pre-manifest HD, the characteristic ROC curves were plotted and the area under the curve (AUC) was calculated. A 5% (p<0.05) level of significance was accepted. When comparing the parameters for the right and left eyes of the patients and volunteers, the statistically significant difference was not found and the analysis was performed only on the basis of the right eye data for each patient.

Results

In compliance with the inclusion criterion, 47 participants of the main group and 31 volunteers of the control group were examined. In the course of examination, 3 HD patients were excluded from the main group: two with radial keratotomy in the history and one with diabetes mellitus type 2. In this connection, the data of 44 participants (44 eyes) of the main group ant 31 volunteers (31 eyes) from the control group were analyzed. In the main group, 21 participants had a pre-manifest stage of the disease, 23 — a manifest stage. The number of CAG repeats in the huntingtin gene varied from 37 to 56 (44.3±3.8), the score in the manifest patients amounted to 36.3±29.7 according to the motor UHDRS scale, disease duration was 13.7±7.2 years. No statistically significant difference in age, gender distribution, vision acuity, and intraocular pressure level was found between the main and control groups (Table 1). However, there was revealed the difference in age (p<0.001) between the manifest and pre-manifest patients which correlated with the successive development of the disease stages. The results of the Worth’s four dot test showed that all examined participants had binocular vision.

---

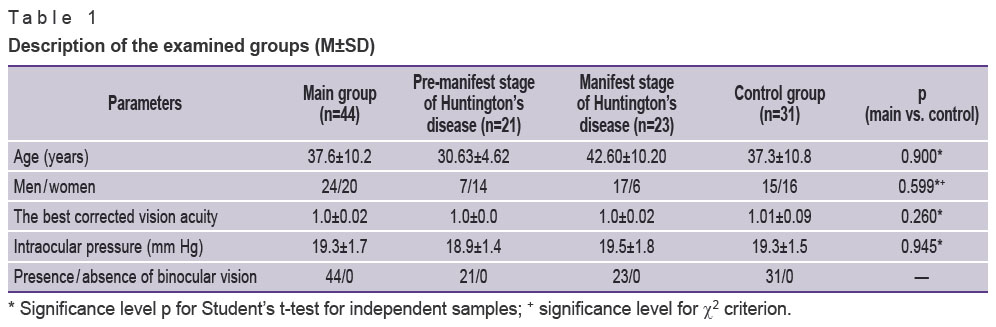

Table 1. Description of the examined groups (M±SD)

---

During color sense examination using Rabkin plates, all participants from the main and control group read plates I and II correctly demonstrating a sufficient cognitive preservation in the examined patients. While reading the rest of the plates, patients with HD made more mistakes (Table 2), the number of which grew with the development of the manifest stage of the disease relative to pre-manifest. All examined participants were trichromats, part of the patients of the main group had abnormal trichromatism referred to dyschromatopsia of the light degree. In neither case could dyschromatopsia be classified as congenital abnormality of color perception.

---

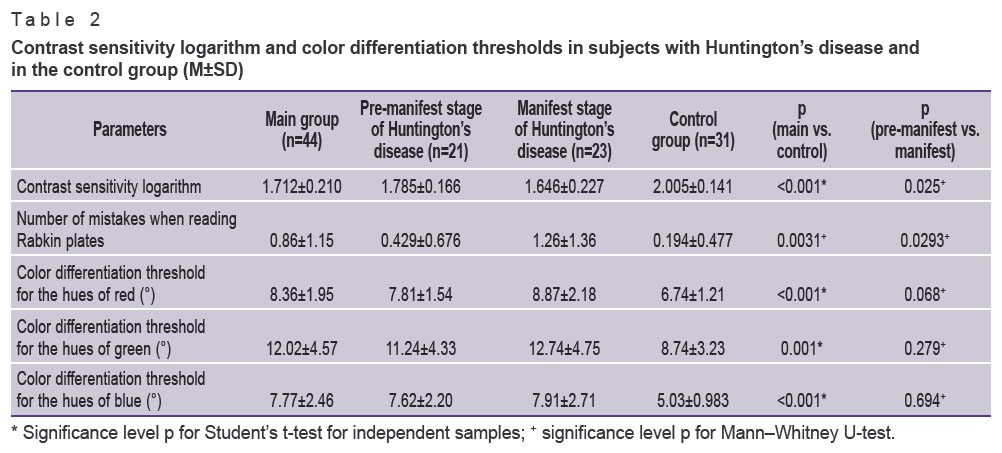

Table 2. Contrast sensitivity logarithm and color differentiation thresholds in subjects with Huntington’s disease and in the control group (M±SD)

---

The thresholds of color differentiation in the main group were higher than in the control in the hues of red, green, and blue colors (see Table 2). There were no statistically significant differences within the main group between the manifest and pre-manifest HD carriers, but at the same time, there was a tendency to the increase of color differentiation thresholds after clinical manifestation of HD.

The analysis of the number of mistakes in determining the stimulus shape showed that conventionally healthy volunteers and pre-manifest HD carriers did not make mistakes. Patients at the manifest stage made significantly more mistakes in oral answers than in choosing the spot shapes among those presented on the monitor screen (p=0.045) (Figure 4).

---

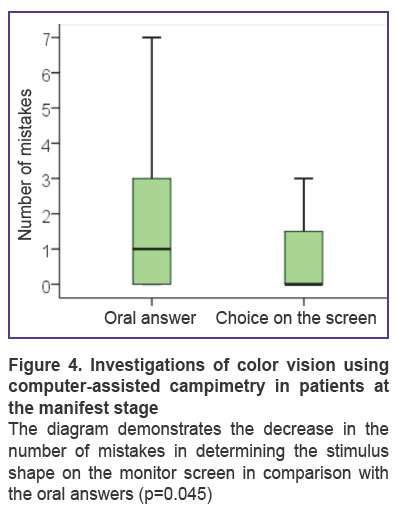

Figure 4. Investigations of color vision using computer-assisted campimetry in patients at the manifest stage The diagram demonstrates the decrease in the number of mistakes in determining the stimulus shape on the monitor screen in comparison with the oral answers (p=0.045)

---

The CS logarithm in HD was lower in the control group, and in the patients at the manifest stage of HD a significant attenuation of the CS function was noted compared to the pre-manifest stage.

The CS log was inversely related to the number of CAG repeats (r=–0.627; p=0.001; Figure 5). The thresholds of color differentiation in green (r=0.489; p=0.003) and blue (r=0.416; p=0.014) correlated with the score of the motor UHDRS scale.

---

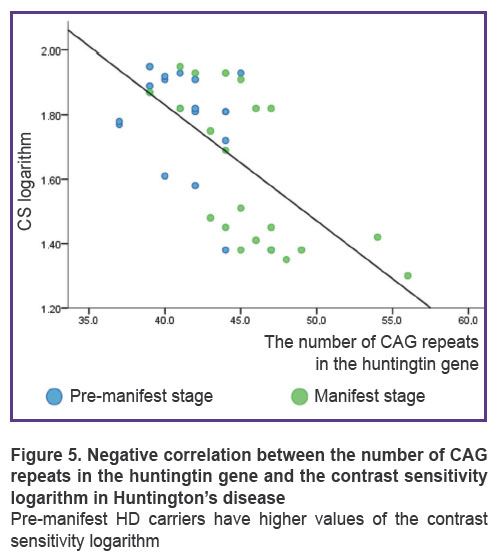

Figure 5. Negative correlation between the number of CAG repeats in the huntingtin gene and the contrast sensitivity logarithm in Huntington’s disease Pre-manifest HD carriers have higher values of the contrast sensitivity logarithm

---

The CS log was of low diagnostic value for revealing pre-manifest HD, whereas color differentiation thresholds showed higher area values under the ROC curve (Table 3). During the ROC curve building, the greatest diagnostic value was demonstrated by the threshold of blue color differentiation (Figure 6).

---

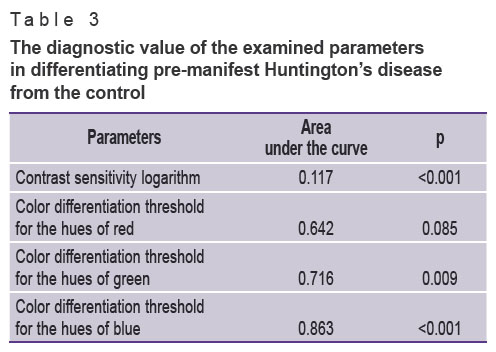

Table 3. The diagnostic value of the examined parameters in differentiating pre-manifest Huntington’s disease from the control

---

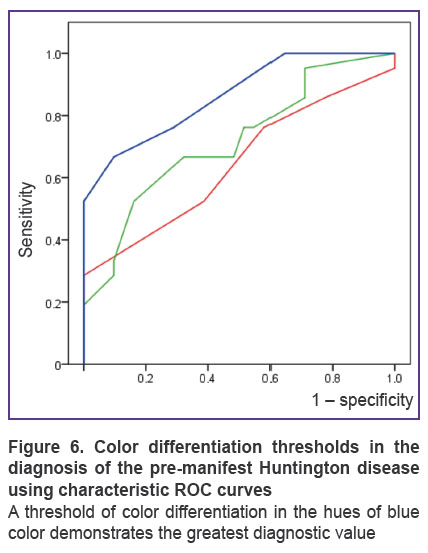

Figure 6. Color differentiation thresholds in the diagnosis of the pre-manifest Huntington disease using characteristic ROC curves A threshold of color differentiation in the hues of blue color demonstrates the greatest diagnostic value

---

Discussion

Color vision disorders are known to be noted at the stage of a mild cognitive decline and to progress in Alzheimer’s disease. The tests for color differentiation are considered as biomarkers of the early stage of this disease [29]. Values of color differentiation thresholds in Parkinson’s disease correlate with a prominent motor dysfunction which is supposed to be associated with a common pathogenesis of motor and sensory disturbances [30]. Findings of our color vision investigations in HD demonstrate similarity with the described changes in Alzheimer’s and Parkinson’s diseases: impairment of color differentiation occurs already at the pre-manifest stage anticipating the development of characteristic motor disorders. Besides, at the manifest stage, there is a correlation between the sensory and motor disorders designating the concurrently running processes of neurodegeneration in various parts of the central nervous system.

Progression from a mild cognitive decline to Alzheimer’s disease is accompanied by the reduction in CS [31–34] and retina thickness in the macular zone [33]. In Parkinson’s disease, CS correlates with the severity of cognitive disturbances [35] and is accompanied by gaze fixation disorder [36] which allows this sign to be considered as a marker of the non-motor disorder severity in parkinsonism [36].

To explain the causes of CS reduction in HD, it should be noted that CS depends on optical factors as well as on functioning of the nerve cell networks. In terms of optics, CS is connected with a frequency-contrast characteristic of the eye as a lens determined primarily by the pupil diameter [37]. From the point of view of conduction pathway functioning, CS is mediated by numerous optic canals selective to various spatial frequencies [38]. When examining the carriers of the huntingtin gene, we did not detect any disorders of pupil reaction, the pupil width was evaluated as physiological in all cases. Thus, no gross abnormalities in the frequency-contrast characteristic of the vision organ were found.

Our results show that CS reduction is typical for the manifest stage of the disease and cannot be considered as a marker of the early HD stage. In contrast to the CS assessment with the help of sinusoidal gratings with different spatial frequency [20], examination of CS using optotypes showed the association of CS log with the number of CAG repeats in the huntingtin gene. The increase in the number of CAG repeats results in an earlier and heavier course of HD and mainly in motor and psychiatric disorders [1, 39, 40]. The data obtained by us point for the first time to the connection of the genetic characteristic of the patients with the severity of the visual dysfunction. A complex study and search for the links between the impairment of the visual and oculomotor functions together with the retina tomographic parameters are of great interest and demand further investigations.

Color vision disorder at the early stage of neurodegeneration, compared to CS, gives evidence in favor of the hypothesis advanced by La Morgia et al. [41] on mainly a paracellular or papillomacular pattern of neurodegeneration in HD especially at the pre-manifest stage. This succession is explained by the experimental data indicating earlier damage of the cones (than rods) by huntingtin deposits in HD progression [18].

During color vision tests it was established that naming an object artificially increases the number of mistakes. It is caused by amnestic aphasia at the manifest HD stage [38]. In this connection, for examining visual functions in patients with neurological deficit symptoms [42] advantageous are computer-assisted campimetry and contrastometry [43, 44] which exclude the necessity of oral answers thereby upgrading the validity of the study.

Conclusion

The data obtained allow us to speak about a phenomenon of visual sensory deprivation in Huntington’s disease. The study findings showed for the first time that color vision disorders are developing already at the pre-manifest stage occurring before the reduction of contrast sensitivity which is observed at the manifest stage. Patients with Huntington’s disease make more nonspecific mistakes when reading Rabkin plates and their number increases with the development of the manifest stage of the disease. The increase of color differentiation thresholds in the shades of red, green, and blue colors in Huntington’s disease correlates with the severity of motor disorders according to the UHDRS. The color differentiation threshold in the hues of blue appeared to be the most promising biomarker of the pre-manifest stage.

For the first time, the relation between contrast sensitivity and the number of CAG repeats in the huntingtin gene has been detected. The reduction of contrast sensitivity in Huntington’s disease occurs at the preserved visual acuity, progresses with the development of the manifest stage, and has inverse connection with the number of CAG repeats in the huntingtin gene.

It is necessary to continue studying visual functions in Huntington’s disease, their links with morphological changes of the retina and brain as well as the impact of the visual function on the patients’ quality of life.

Acknowledgement. The author is sincerely grateful to I.G. Smetankin, MD, DSc, for the scientific editing of the paper, to S.V. Kopishinskaya, MD, PhD, for thorough neurological and genetic examination of the patients, to S.A. Polevaya, DSc, for the assistance in the work with ApWay.ru Web platform used to for color vision testing.

Study funding. The work was not supported by any financial source.

Conflicts of interest. The author has no conflicts of interest to disclose.
