Diode Laser Lithotripsy of Urinary Calculi Using Controlled Fragmentation Technique

Introduction

Infectious inflammatory complications occur after contact laser lithotripsy in nearly 27.4% of cases, according to different authors [1, 2]. The incidence of infected stones in sterile urine varies from 25 to 48% [3–5]. One of the triggers of infectious processes developing in the kidney is known to be calculus disintegration followed by the release of bacteria and their toxins from the biofilm [6]. To prevent complications, it is important to search for new mechanisms and methods of laser exposure providing calculi fragmentation without scattering of fragments and microbial dissemination into the pelvicalyceal system of the kidney.

For this purpose, our research team has developed a method for controlled coarse fragmentation of calculi using a strongly heated distal fiber tip (the “hot spot” method) with a light-absorbing coating of colloidal solution of graphite microparticles in silicone varnish [7]. Stone fragmentation effect was achieved through the high temperature of the distal fiber tip [8–10].

This paper presents a study of application safety of diode lasers with different wavelengths (1.47, 0.97, and 0.81 µm) for lithotripsy based on the “hot spot” method providing a controlled change in the degree of stone destruction. The lasers under study differ in tissue penetration depth and, consequently, their thermal effect on the tissue. When using a light guide with a light-absorbing coating, the surrounding tissues absorb laser radiation, which inevitably leads to their topical heating [7].

To solve the problem of improving laser exposure modes and creating a safe medical technique for contact stone fragmentation, theoretical and experimental evaluation of heat transfer was carried out using model media and the ureteral tissue. The following physical factors were considered to be possible sources of injury during the procedure: 1) heating of ureteral tissues adjacent to the stone to injury threshold; 2) burning of the organic coating of the optical fiber on the calculus surface with plasma formed in burning reaction. The extent of adjacent tissue injury due to intraoperative errors was also evaluated: short-time contact with the ureteral wall as the result of the fiber slipping off the stone surface.

The aim of the study was to evaluate the possibilities of applying the technology of urinary calculi fragmentation by continuous-wave diode lasers at various wavelengths using fiber light guides with strongly heated distal tips for controlled fragmentation and minimization of traumatic effects on the adjacent tissues.

Materials and Methods

Postoperative ureteral tissues and model media were used as study objects. Fragmentation of urinary stones with cross-sectional dimensions of 5 to 29 mm was performed on postoperative samples (n=58). X-ray density of the stones ranged from 119 HU to 1735 HU, according to the Hounsfield scale.

Standard certified continuous-wave diode lasers with fiber output to similar quartz light guides were used in the study. The distal tip of the light guide with a diameter of 550 µm was cleared from the protective coating by 3–5 mm length. Its end was coated with a layer of graphite microparticles in silicone varnish [7]. The output power of laser radiation was 10 W. The stones and adjacent urinary tract tissues were exposed to laser radiation at wavelengths of 0.81 (n=17), 0.97 (n=22), and 1.47 µm (n=19). To form the groups, stones for fragmentation were selected at random.

The lasers under study had different absorption in water and in biological tissue: absorption coefficient at 0.81 µm wavelength was 0.02 cm^–1, at 0.97 µm wavelength — 0.2 cm^–1, at 1.47 µm wavelength — 20 cm^–1 [11]. Since 80% of soft tissue consists of water, absorption coefficient for water and tissue was considered to be the same in the experiment.

Heating the urinary tract tissues adjacent to calculi during lithotripsy was studied using an oscilloscope equipped with a thermocouple. As a model medium, a ureter phantom (a silicone tube with 7 mm (22 Ch) diameter) was used at the first stage, at the second stage we used ureters taken from adult corpses during autopsy and dissected longitudinally.

In the first case, the stone was placed in the tube with its lower part plugged, the tube was filled with saline. A temperature sensor was placed at the contact area of the calculus and the inner surface of the tube. The heated tip of the light guide with radiation was applied to the calculus through the upper open end of the tube. The temperature was measured with a thermocouple at full thermal contact of the stone with the model medium walls.

In the second case, the calculus was placed upon the dissected ureteral tissue and was fragmented with the laser. Damage to the ureteral tissue was assessed by histological examination.

To simulate the intraoperative error (short contact with the ureteral wall as the result of the fiber slipping off the stone surface), the ureter mucosa was processed in a point-contact mode with the distal tip of the light guide heated by radiation to a high temperature for less than 1 s, 1 and 2 s in the air. Condition of the ureteral tissue was assessed using histological sections stained with hematoxylin and eosin.

Results

A series of experiments on urinary stone fragmentation by lasers with wavelengths of 0.81 µm, 0.97, and 1.47 µm showed that exposure time required for calculus destruction does not depend on radiation wavelength, but it depends on the stone density, cross-sectional dimension and ranges from 1 to 100 s. On average, a stone was fragmented for 9–15 s.

Comparative analysis of stone fragmentation efficiency with different lasers showed that at 0.97 µm wavelength, both in atmospheric air and in liquid, all the stones with X-ray density up to 1400 HU (n=20) were successfully fragmented, but it turned to be impossible to fragment 2 stones with 1735 HU density in liquid.

When using a 0.81 µm laser, all stones with 1000 to 1400 HU density were fragmented (n=10) in air, while fragmentation in liquid was successful only for stones with X-ray density under 1000 HU (n=5). Fragmentation of two stones with 1100 HU and 1270 HU density in liquid was no success.

Fragmentation of stones using a laser with 1.47 µm wavelength was effective both in air (n=9) and in liquid (n=10). The maximum density of fragmented stones in this series of experiments was 1560 HU.

Experimental evaluation of temperature regimes in stone fragmentation at wavelengths under study. Figure 1 shows time dependences of calculi surface temperatures at different radiation wavelengths. Thermophysical parameters were determined based on water characteristics. In the experiment, we took into account the time required to reach the maximum temperature on the stone surface when placing a light guide with laser radiation at one spot — in the stone center.

---

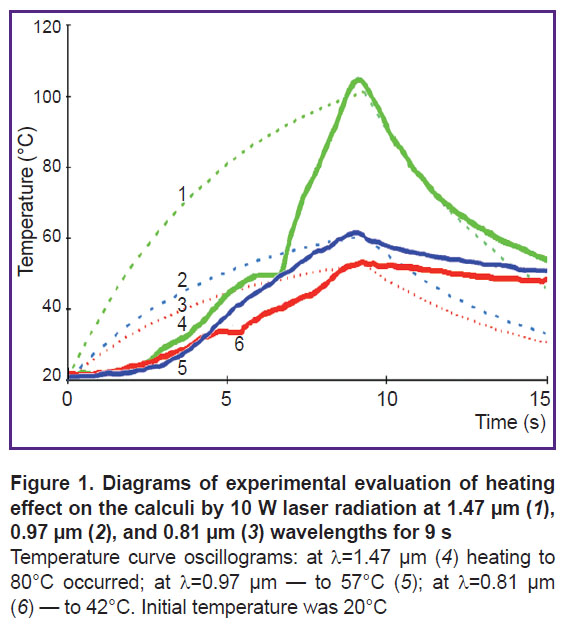

Figure 1. Diagrams of experimental evaluation of heating effect on the calculi by 10 W laser radiation at 1.47 µm (1), 0.97 µm (2), and 0.81 µm (3) wavelengths for 9 s Temperature curve oscillograms: at λ=1.47 µm (4) heating to 80°C occurred; at λ=0.97 µm — to 57°C (5); at λ=0.81 µm (6) — to 42°C. Initial temperature was 20°C

---

Recording was performed when heating the stone during 9 s, after which the laser was turned off, heating of the stone was stopped for 8–10 s.

The selected time parameters corresponded to the average values obtained when fragmenting the stone into two pieces in previous studies [8].

It follows from the given oscillograms that laser radiation heats the stone surface to 80°C at λ=1.47 µm during the established time (9 s), which is certainly amazing as it corresponds to photocoagulation effect for biotissues. A laser operating at 1.47 µm wavelength was excluded from further investigation.

At 0.81 and 0.97 µm wavelengths, laser radiation generates significantly lower temperature reaction on the stone surface making it possible to use such lasers for urinary stone fragmentation.

Laser impact on the ureteral tissue at 0.81 and 0.97 µm wavelengths. When fragmenting the calculi by laser radiation at 0.81 and 0.97 µm wavelengths in air, a temperature of 40 and 57°C, respectively, was obtained on the stone surface in the area of contact with the ureteral mucosa. When fragmenting in liquid, the temperature was 25°C at λ=0.81 µm and 33°C at λ=0.97 µm. Visual inspection of macro specimen mucosa in the area of contact with the stone revealed no pathological changes. Thus, it can be established that stone exposure duration up to 9 s with lasers at these wavelengths is unlikely to heat the entire calculus volume to injury threshold.

The “hot spot” method may be accompanied by burning of stone components with plasma formed in burning reaction. We proposed to solve this problem by suppressing the process of burning with an inert gas. To reduce burning of stone material and light guide tip, CO₂ gas was supplied to the area of calculus contact with the light guide heated to 2000 K [7, 9]. In this study, urinary stone fragmentation was carried out ex vivo both in saline solution and in atmospheric air with direct contact of the heated fiber tip with the stone. It was found that at low rates of CO₂ gas flow (about (3–6)·10^–3 L/min) through a 3-mm tube, no plasma occurred (Figure 2).

---

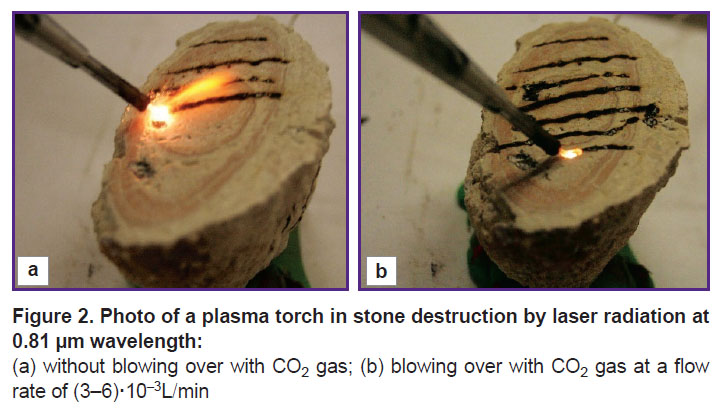

Figure 2. Photo of a plasma torch in stone destruction by laser radiation at 0.81 µm wavelength: (a) without blowing over with CO2 gas; (b) blowing over with CO2 gas at a flow rate of (3–6)·10–3L/min

---

Morphological examination of the ureter. Thickness of mucosal, submucosal and muscular layers of the ureter was measured on a histological preparation (Figure 3 (a)). The urothelium thickness was 53.0±0.4 µm, subepithelial connective tissue structures of mucosal and submucosal layers were 417.0±19.0 µm thick, muscular layer — 532.0±24.0 µm.

---

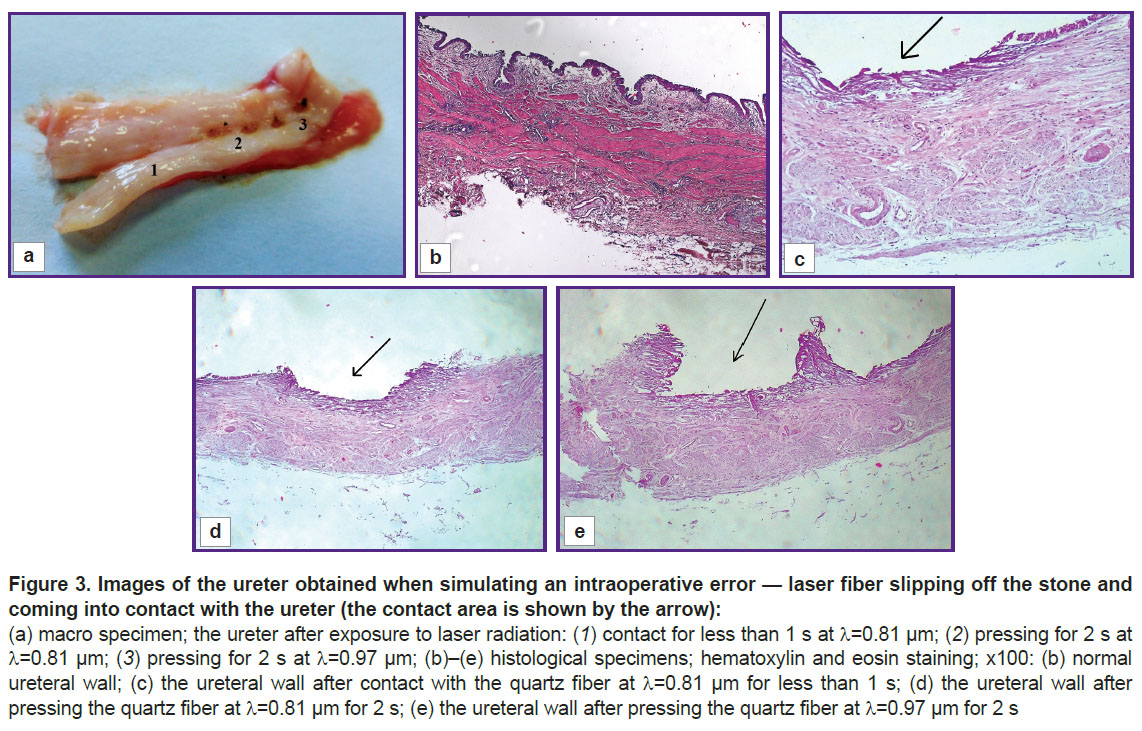

Figure 3. Images of the ureter obtained when simulating an intraoperative error — laser fiber slipping off the stone and coming into contact with the ureter (the contact area is shown by the arrow): (a) macro specimen; the ureter after exposure to laser radiation: (1) contact for less than 1 s at λ=0.81 µm; (2) pressing for 2 s at λ=0.81 µm; (3) pressing for 2 s at λ=0.97 µm; (b)–(e) histological specimens; hematoxylin and eosin staining; x100: (b) normal ureteral wall; (c) the ureteral wall after contact with the quartz fiber at λ=0.81 µm for less than 1 s; (d) the ureteral wall after pressing the quartz fiber at λ=0.81 µm for 2 s; (e) the ureteral wall after pressing the quartz fiber at λ=0.97 µm for 2 s

---

Figure 3 (b)–(e) shows images of histological preparations obtained when simulating the intraoperative situation — laser light guide slipping off the stone to the ureter wall.

Focal defects of the inner layers of the ureteral wall with different lengths and depths appeared depending on the time of laser exposure and the intensity of pressing the fiber against the ureteral mucosa. For example, when exposure with a 0.81 µm laser light guide had minimum duration (contact for less than 1 s), there could be detected surface defects of the mucosal epithelial layer with 80–100 µm depth and length of up to 500 µm with minimum coagulation changes in defect edges and bottoms, similar to erosion (Figure 3 (c)). When exposure time increased (pressing the 0.81 µm laser light guide for 2 s), there appeared defects of 200x800 µm depth and 300x1000 µm length (see Figure 3 (d)). When modeling a more significant damage (at 0.97 µm wavelength during 2 s), there appeared focal defects of the inner layers similar to acute ulcers with depths and lengths of 400x1500 and 400x1200 µm, respectively, their bottoms being represented by a submucosal layer (Figure 3 (e)).

Coagulation changes in connective tissue fibers of defect bottoms such as 200–300 µm thick bright pink masses without fibrous structure were spread almost over the entire thickness of the submucosal layer, sometimes even reaching the muscular layer.

Discussion

To date, the use of a holmium:yttrium-aluminum-garnet (Ho:YAG) laser is considered to be the most effective method of urinary stone fragmentation, which has become the gold standard as it allows fragmenting the stones of any mineralogical type [12, 13]. The underlying mechanism of this method is vaporization of water inside the stone resulting in uncontrolled formation of different-sized fragments (from very large to very small) [14] and their scattering over the renal collecting system due to steam pressure. This phenomenon promotes massive release of toxins and bacterial flora from stone biofilms. In recent years, the literature has provided comparative descriptions of two lithotripsy modes using Ho:YAG laser, one of which is aimed at creating stone dust (dusting method), the other is used for fragmentation into large fragments and their subsequent extraction with baskets (basketing) [15–17]. Each method has both advantages and disadvantages. Disadvantages include the possibility of residual stone fragments, backflow of toxins and dust getting into the excretory ducts of the renal collecting system, which can be a source of infectious and inflammatory changes for the patient in the postoperative period.

In this study, controlled stone fragmentation was achieved through the use of a continuous-wave diode laser due to stone surface carbonization effect and mechanical destruction of the stone with a high temperature at the quartz fiber tip. Moreover, the quartz fiber and absorbing coating of its distal tip were identical in all experiments at different wavelengths.

Evaluation of stone fragmentation efficiency in liquid and in atmospheric air shows that the “hot spot” method based on continuous-wave diode laser radiation can be successfully used to fragment porous and potentially infected stones. It has been found [18–19] that X-ray density characteristic of such stones is 1400 HU for calcium phosphate, 480 HU for uric acid stones, 1285±284 HU for struvite stones, 757±114 HU for cysteine calculi.

The study of heat transfer in the area of stone contact with the medium, performed on the ureter phantom and ex vivo ureter samples, demonstrates safety of continuous-wave diode lasers for the “hot spot” method. Morphological evaluation of the ureteral tissue in the area of direct contact with the fiber (simulation of intraoperative slipping of the light guide from the stone) also confirms this. Even a two-second contact of the light guide with the ureteral wall resulted in focal defects, but they were unlikely to reach the muscular layer.

Laser heating of the adjacent ureteral tissues during stone fragmentation at 0.81 and 0.97 µm wavelengths for 9 s in liquid was significantly lower than biotissue coagulation temperatures.

The original solution of using CO₂ gas eliminates the risk of burning of organic stone components and plasma formation in burning reaction. When blowing the fiber tip over with CO₂ through a 3-mm tube at a flow rate of (3–6)·10^–3 L/min, there is no organic matter burning.

Thus, commercially available for any healthcare facility, continuous-wave diode lasers with 0.97 and 0.81 µm wavelengths and the use of the “hot spot” method at the quartz fiber tip provide the possibility to perform controlled fragmentation of potentially infected urinary stones, thereby reducing intraoperative dissemination of bacteria and toxins from the stone biofilms.

Conclusion

Application of continuous-wave diode lasers with a quartz fiber tip at 0.81 µm and 0.97 µm wavelengths using the “hot spot” method provides the possibility to fragment urinary stones including those potentially infected into size-controlled fragments, which may become a significant factor in prevention of systemic inflammatory response in the postoperative period.
