Isolated Hyperthermic Hepatic Chemoperfusion in Patients with Colorectal Cancer and Isolated Non-Resectable Liver Metastases

Introduction

Despite the achievements of modern surgery and oncology, treatment of isolated metastatic liver lesions in colorectal cancer presents a significant clinical challenge [1, 2]. This issue needs to be urgently addressed because in 80% of patients (at the moment liver metastasis is confirmed), the lesion is already bilobar, which rules out performing any radical resection [3]. Biological characteristics of colorectal cancer suggest that the available adjuvant chemotherapy is of limited efficacy in such patients: the response rate to second-line chemotherapy is less than 25%, and the survival period on the second-line chemotherapy is less than 12 months [4–6].

The successful experience with regional chemotherapy in patients with isolated metastatic liver disease is mainly due to the use of intra-arterial chemoembolization of liver metastases via the hepatic artery [7]. However, this route is not suitable for chemotherapy with melphalan‎ and TNF-α because of their high systemic toxicity [8, 9]. In addition, during intra-arterial chemoembolization, it is not possible to maintain the level of hyperthermia required for the efficient antitumor therapy [10]. The isolated hyperthermic hepatic chemoperfusion (IHHC) can produce local hyperthermia and bring a chemotherapeutic agent to the target, preventing it from entering the systemic circulation [6, 10, 11]. IHHC was reported to cause a significant clinical improvement and even a complete tumor regression [4, 8, 9].

For the first time, the technique of IHHC was presented Ausman [12], who conducted a series of experimental studies on dogs with the subsequent introduction of the technique into clinical practice. Then, over 40 years, an interest in the technique resumed for a while and then dropped again, mainly due to the complexity of the procedure and high perioperative mortality [5, 10]. By now, around 500 IHHC procedures have been completed worldwide; most of them performed by Dr. Alexander in the US [4] and Dr. van Iersel in Europe [2]. Unfortunately, to date, there is no published data on completed IHHC procedures in Russia.

The aim of the study was to test the feasibility and clinical efficacy of isolated hyperthermic hepatic chemoperfusion with melphalan‎ and TNF-α for the treatment of isolated bilobar metastatic lesions in patients with colorectal cancer failed to respond to systemic chemotherapy.

Material and Methods

The study was carried out in accordance with the requirements of the Helsinki Declaration (2013). The authors received a written consent for IHHC from all patients.

Six patients (4 males, 2 females) participated in the study. The average age of the patients was 59.3±3.4 years (45–70 years). Isolated bilobar metastatic liver lesions (M_1c) were confirmed in all patients; in three patients, the liver metastases were diagnosed simultaneously with the primary diagnosis, and in three others — during the post-treatment follow-up. At the time of the detection, the liver metastases were diagnosed as unresectable in all patients; the lesions were localized in both the right and left lobes; therefore, it was impossible to perform a radical resection and leave sufficient tissue for proper liver function. The location of the primary tumor in 3 patients was the rectum, and in other 3 — the colon. The histological type of the tumor in all cases was adenocarcinoma; in 2 cases — moderately differentiated (G2) and in 4 cases — poorly differentiated (G3).

The large intestine tumors were removed using the standard resection procedures (in the rectum — total mesorectal excision with rectum resection, in the colon- total mesorectal excision with partial colon resection). Before the IHHC, all patients underwent two or more cycles of polychemotherapy; despite that, an increase in the size of secondary foci in the liver was found. Given the poor efficacy of systemic polychemotherapy, the patients were scheduled for IHHC.

Isolated hyperthermic liver perfusion was performed according to our original modification (priority certificate No.2017118306 dated May 25, 2017). It included a step of vascular isolation of the liver followed by creation of two closed loops of artificial circulation:

in the 1^st, the main one (blood circulation through the liver), a solution was pumped into the liver through a cannula installed in the gastroduodenal artery, and the blood coming from the liver entered a cannula installed in the retro-hepatic segment of the inferior vena cava;

in the 2^nd shunt (provides blood return from the lower extremities, kidneys, and the intestines to the heart), the blood was withdrawn through a cannula installed in the sub-hepatic segment of the inferior vena cava (from the kidneys and lower limbs), and through a cannula installed in the portal vein; within this route, the blood returned into the internal jugular vein via a puncture-mounted introducer with a diameter of 3/16.

Before the cannulation, heparin was administered to provide for the activated clotting time (ACT) of 400 s. The main artificial circuit was filled with a mixture containing: 300 ml of erythrocyte mass, 700 ml of saline and chemotherapeutic agents — melphalan‎ (1.5 mg/kg body mass) together with 1 mg TNF-α. This mixture was pumped through an oxygenator and a heat exchanger before entering the gastroduodenal artery.

The scheme of the main perfusion circuit and the vein-venous shunt is shown in Figure 1.

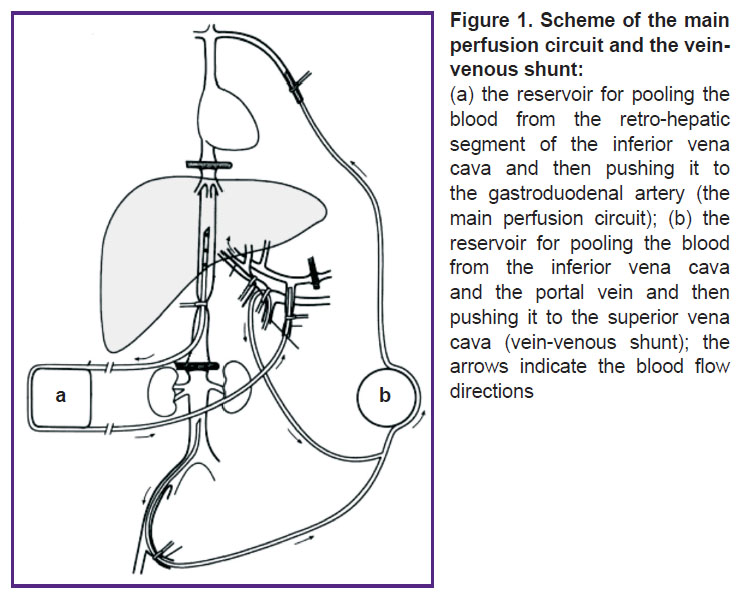

Figure 1. Scheme of the main perfusion circuit and the vein-venous shunt: (a) the reservoir for pooling the blood from the retro-hepatic segment of the inferior vena cava and then pushing it to the gastroduodenal artery (the main perfusion circuit); (b) the reservoir for pooling the blood from the inferior vena cava and the portal vein and then pushing it to the superior vena cava (vein-venous shunt); the arrows indicate the blood flow directions

The major parameters of this artificial circulation were as follows: the volume velocity of perfusion along the main circuit — 800–1100 ml/min; the pressure in the arterial cannula — 120–180 mm Hg; under hyperoxia, partial oxygen tension in the feeding mixture was >150 mm Hg; in hyperthermia, temperature of 40°C was maintained; the volume velocity of the shunt flow — 800–1200 ml/min; duration of isolated liver perfusion — 60 min. After the end of the IHHC session, the perfusate was washed out from the liver using 1500 ml saline and 500 ml gelofusine. Then, the cannulas were removed and the vascular defects were sutured; heparin was neutralized with a solution of protamine sulfate (10 U of protamine per 1000 units of heparin); cholecystectomy was performed, and the laparotomy wound was sutured layer-by-layer.

The response to the treatment was determined by spiral CT (the mRECIST score), as well as by the level of tumor markers CA 19-9 and CEA (cancer-embryonic antigen). For the morphological study of liver metastases, an incisional biopsy of the tumor tissue was performed immediately after the laparotomy and one hour after the IHHC. The tissue samples were sent for histological and immunohistochemical examination [4]. Immunohistochemical studies were performed to measure the level of Ki-67.

Given a small number of clinical observations, the data was processed using nonparametric methods (the Wilcoxon test and the Mann–Whitney test).

Results and Discussion

The duration of surgical intervention averaged at 267±43 min, the intraoperative blood loss was 475±95 ml. During the operation, no blood transfusions were performed. There were no lethal outcomes during the patients’ hospital stay. In the postoperative period, all patients showed a transient increase in the levels of transaminases: the ALT and AST elevated up to 270 mmol/L within 24 h after the operation and then returned to a normal range by day 7 in all patients. The total bilirubin did not exceed 15 mmol/L. During the postoperative period, one patient developed acute renal failure; after three sessions of ultra-hemodiafiltration, a normal pace of diuresis restored and the parameters of nitrogen metabolism normalized. The duration of the patients’ stay in the ICU was 4±1 days, the total period of hospitalization — 13±3 days.

The above data on the operation time and the intraoperative blood loss were comparable with the results of others [4]. The development of renal insufficiency in the postoperative period in one patient could be explained by rhabdomyolysis (the level of myoglobin in the blood reached 1000 μg/L) as a result of hypoperfusion of skeletal muscles caused by vasospasm and the vasopressor support. Such a complication of the perfusion procedure was earlier reported by others [12], but the authors attributed it to rhabdomyolysis caused by a leakage of the chemotherapeutic drug. In the present study, there were no indications of melphalan‎ or TNF-α leakage, since there were no manifestations of systemic toxicity (primarily suppression of hematopoiesis).

The immediate results of IHHC assessed by morphological data showed tumor necrosis and fibrosis in 3 patients (Figure 2).

Figure 2. Histological examination of liver metastases: (a) before isolated hyperthermic hepatic chemoperfusion, adenocarcinoma G3; (b) after isolated hyperthermic hepatic chemoperfusion, necrosis and fibrosis; staining with hematoxylin and eosin; ×10

The long-term results of IHHC assessed after 3 and 6 months indicated a complete response in 3 patients (Figure 3) and a partial response in three others.

Figure 3. Complete tumor response to the isolated hyperthermic hepatic chemoperfusion evaluated with the mRECIST scale: the arrows indicate metastases of colorectal cancer (a) and fibrosis in the area of metastases localization after isolated hyperthermic hepatic chemoperfusion (b)

In patients with a complete response to IHHC, the oncomarkers (CA 19-9 and CEA) decreased to normal values; in patients with a partial response, the levels of oncomarkers were lower than those before IHHC but still above normal. In our study, the number of patients with complete tumor responses is higher (in the percentage terms) than that in the reports of other authors [1, 4]. This, of course, can be due to a small number of patients, which necessitates a continuation of the study on a larger group of patients.

Otherwise, our results are consistent with the data of others [4, 8, 9].

Conclusion

Isolated hyperthermic liver chemoperfusion with melphalan‎ and TNF-α can serve as an effective method of regional chemotherapy indicated in patients with isolated non-resectable metastatic liver lesions resistant to systemic chemotherapy.

Financial support. This work was funded by the authors.

Conflict of interest. The authors declare no conflicts of interest.
