Methods for Assessing the Quality of Biomedical Cell Products for Skin Replacement

Introduction

Biomedical cell products (BMCPs) are an important object of domestic and international research with a special interest in their quality, safety, and effectiveness [1]. It is, therefore, relevant to establish the commonly accepted criteria and methods for assessing such products as emphasized in the Federal Law “About biomedical cell products” [2].

To date, in the Russian Federation, there is no practical experience of conducting the quality assessment procedure for BMCP. The quality indicators of a BMCP must be compatible with its specifications [3]. Usually, the set of such indicators is determined by the manufacturer. Some potentially useful methods for BMPC characterization are described in the guidelines, edited by V.A. Tkachuk (2017) [4]. However, due to the fact that the newly developed BMCPs have varying physical structures, as well as varying chemical and cellular compositions, their quality control methodology may need more than one approach.

This study examines dermatotropic BMCPs. The conditionally controlled parameters of such a product can be divided into three groups:

1) visual characteristics (integrity of the package, correct and complete labeling, conformity of the external appearance and the transportation conditions as declared in the specification);

2) parameters characterizing the product sterility and the absence of contamination by mycoplasmas and viruses;

3) parameters of the cell lines (cell viability, concentration, cell line identification, functional activity of cells).

To characterize the cellular component of a BMCP product, it is necessary to transfer the cells from the BMCP into the culture medium. The process of separating the cells from the matrix, as a rule, requires matrix decomposition; this procedure may lead to a partial cell loss and adversely affect the remaining cells. On the other hand, the methods proposed to characterize the cellular component directly in the BMCP matrix without cell isolation require specific development for each type of BMCP. All methods recommended for assessing the quality of a product should be specified in the product dossier.

The aimof the study was the development of methods to assess the quality of biomedical cell products intended to replace skin defects.

Materials and Methods

In this study, we used samples of two domestic BMCPs designed for the skin defect replacement that were undergoing preclinical studies.

BMCP-1 — a dermal equivalent of the skin had been designed at the N.K. Koltsov Institute of Developmental Biology, Russian Academy of Sciences (Moscow). In this product, the non-cellular component is represented by the medical product (plate) G-derm (RU No.RZN 2015/3135), consisting of a structured mixture of low molecular weight hyaluronic acid (about 90%) and type I collagen (about 10%) The cellular component is represented by surface-plated allogeneic mesenchymal stem cells (MSCs) from human adipose tissue.

BMCP-2 is a skin equivalent designed at the Privolzhsky Research Medical University (Nizhny Novgorod). This product is based on a hydrogel scaffold from natural biopolymers — fibrinogen of the blood plasma and type I collagen in a ratio of 22:1 [5]. The cellular component of BMCP-2 is represented by cultured allogeneic MSCs incorporated into the product during its formation.

The cellular components of both BMCPs are represented by MSCs from human adipose tissue. Over the past decades, these cells have attracted attention as the most promising cellular material for regenerative medicine [6]. The International Society for Cell Therapy (ISCT) has proposed the main requirements for MSCs: adhesion to the plastic surface, expression of specific markers, ability to differentiate into osteoblasts, adipocytes, and chondroblasts in vitro [7]. All MSC lines used in this study for the formation of BMCP met the criteria defined by the ISCT.

Before testing, samples of BMCP-1 were packed in a special medium and transported for 12–24 h to the laboratory that performed the analysis; BMCP-2 was made directly in this laboratory.

Cell count and viability assessment in cell suspensions and in BMCP matrices

Counting the living cells in suspension using the trypan blue exclusion method. The cells were removed from the surface of a G-derm plate in the standard way using 0.25% trypsin in Versen’s solution (PanEco, Russia), washed with PBS and pelleted; the resulting suspension was stained with 4% trypan blue solution for 2–3 min. During this time, non-viable cells with damaged membranes become evenly stained whereas living cells remain unstained. The number of living (unstained) and dead (stained) cells was counted in a hemocytometer or using a Countess cell counter (Invitrogen, USA).

Determination of viable cells in a BMCP-attached culture by staining with the vital fluorescent dye — calcein. Before the staining (Calcein AM; BD Pharmingen, USA) was diluted in PBS at a ratio of 1:3000. The solution was then added to the plate wells to replace the culture medium. Samples with the fluorochrome solution were incubated for 30 min in a CO₂ incubator at a temperature of 37°C, then washed with phosphate buffer and subjected to microscopic examination.

Total cell count in the BMCP-attached culture by the number of nuclei stained with Hoechst 3334. An original method was used to count the cells retained in the BMCP-2 structure [8]. It is based on intravital nuclei staining with the Hoechst 3334 fluorescent dye (BD Pharmingen, USA) followed by wide-field fluorescence microscopy in the Z-stack mode and subsequent counting of cell nuclei on cross-linked Z-stack microphotographs. The quantification was performed on days 1, 3, and 6 after BMCP-2 had been formed (day 0). To that end, fragments with an area of 0.64 cm² were separated from the BMCP-2 sample at the predefined time points and transferred to a 24-well Black Visiplate TMTC plate (Wallac Oy, Finland). The separated fragments were stained with Hoechst 3334 followed by nuclei counting. After the separation of fragments, BMCP-2 samples were further cultured for up to 6 days in a humidified 5% CO₂ incubator under 37°C, with medium replacement every 2–3 days.

Cell staining with fluorescent membrane dyes to assess the morphology of MSCs inside the BMCP structure. To stain the membranes of cells contained in the BMCP, the fluorochrome Lipophilic Tracers-DiO DiOC14 (3) Hydroxyethanesulfonate (Biotium, USA) was used. In accordance with the manufacturer’s recommendations, aliquots of the dye were added to the growth medium in a ratio of 1:2000 in wells with BMPC samples and incubated for 30–40 min to provide for uniform membranes staining. The washed cells were then studied using a wide-field fluorescence microscope equipped with a Cytation 5 multifunction imager (BioTek, USA) combined with the Gen5 Imedge+ software. The resulting microphotographs were used to document and save the obtained data.

Quantification of VEGF in the growth medium. To determine the secretory activity of MSCs within the BMCP, we measured their ability to produce VEGF-A factor (from the family of vascular endothelial growth factor, VEGF).

Sampling was carried out within 3 days after the BMCP-1 formation, as the final product was intended for use within 3 days. To do that, BMCP-1 samples sized at 1 cm² were placed in wells of a 24-well plate and incubated for 24, 48, and 72 h. Then, 50 μl of the growth medium was taken to determine the VEGF content.

In the study of BMCP-2, considering the slower adjustment of the cells to the matrix, samples of the growth medium were taken on the 3^rd, 5^th, and 7^th days after the product formation. As a control, MSCs of the same lines and passages were cultured in a 24-well plate in the standard way. Samples of the growth medium taken before the start of the study served as a mandatory control: for BMCP-1, those were aliquots of the medium in which cell-free G-derm plates were incubated; for BMCP-2, that was the medium in which the cell-free scaffold samples were incubated. Concentration of VEGF-A was quantified with ELISA-based reagent kits from Invitrogen, Thermo Ficher Scientific (USA, Canada). The optical density was measured using a Sunrise analyzer (TECAN, Austria) with the Magellan software.

Phenotyping of MSC cultures. The immunophenotype of adipose tissue MSCs contained in BMCPs was determined with the help of a BD FACS CANTO II cytofluorimeter (Becton Dickinson, USA). A panel of monoclonal antibodies from Beckman Coulter and Becton Dickinson (USA) was used: CD90 FIC, CD105 PE, 73 PE, 44 FITC, 45 PC5, CD14 PC5, CD HLA-DR PC7, CD34 PC7 with the corresponding isotypic controls.

To determine the cell immunophenotype in BMCP-1, cells were removed from the plate surface with trypsin; in BMCP-2, the hydrogel scaffold was decomposed by enzymatic treatment with type 1 collagenase (Sigma-Aldrich, USA).

Statistical analysis. All measurements were performed in at least 3 replicates. The results were processed using nonparametric statistics (Wilcoxon paired comparison) and the Statistica 6.0 software package.

Results and Discussion

Cell count and viability assessment in cell suspensions and in BMCP matrices

Counting the viable cells in suspension by the trypan blue exclusion method. The counts of adipose tissue MSCs harvested from the BMCP-1 surface differed between the 6 experiments where the initial cell density was either 20·10³ or 30·10³/cm² and the time of incubation was either 36 or 48 h (Table 1).

---

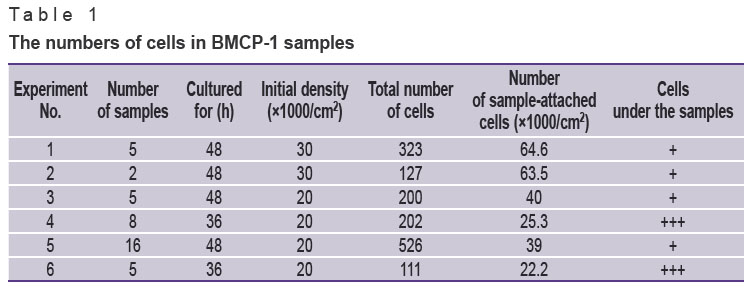

Table 1. The numbers of cells in BMCP-1 samples

---

The data analysis revealed that the final cell number depended on their initial cell density, on the time elapsed after the BMPC formation, on the fixation procedure, and on the transportation conditions. In addition, the number of cells in the tested samples might be influenced by some displacement of the samples inside the wells. In such cases, microscopy revealed that a sizable number of cells remained attached to the well bottom and walls and, apparently, were not be removed by the harvesting procedure (Figure 1).

---

Figure 1. The state of BMCP-1 after transportation: viable MSCs of adipose tissue (arrows) on the well surface next to the G-derm matrix after transportation in a sealed package for 24 h; light microscopy, ×100

---

In all batches, the viability of cells isolated from the surface of G-derm plates was not less than 98%.

Cells spread over the surface of the BMCP-1 were easily detached by trypsinization and counted in a standard hemocytometer to determine the number of viable cells. However, the enzymatic treatment could lead to partial destruction, loss or damage of those cells, thus resulting in a measurement error; that factor should be taken into account when analyzing the obtained data.

Determination of viable cells in the BMCP-attached culture by staining with the vital fluorescent dye — calcein. When visualizing cells from the BMCP-1, it was clearly seen that the cells on the surface of the G-derm plate were spread unevenly, and most of them were present in the form of colonies (Figure 2 (a), (b)). The cells showed a typical fibroblast-like morphology with well-expressed processes. Varying numbers of colonies were detected in different samples, but no monolayer formation was observed. We assume that this pattern of MSC distribution over the G-derm plate reflected the heterogeneous topography of this plate.

---

Figure 2. Visualization of cells contained in BMCP-1: viable MSCs stained with calcein (green staining) on the G-derm surface; fluorescence microscopy, excitation — 477 nm, emission — 525 nm; (a) ×40; (b) ×100

---

Total cell count in the BMCP-attached culture by the number of nuclei stained with Hoechst 3334. Fluorochrome-labeled cell nuclei were well visualized inside the BMCP-2 structure (Figure 3).

---

Figure 3. Crosslinked Z-stack microphotographs of cell nuclei (blue staining) from the bulk of BMCP-2: (a) Z-stack at 530 μm, 24 h of cultivation; (b) Z-stack at 300 μm, 72 h of cultivation; fluorescence microscopy with Hoechst 3334 fluorochrome, excitation — 377 nm, emission — 447 nm; (a) ×40; (b) ×100

---

Quantification of these nuclei demonstrated a statistically significant increase in the number of cells within the BMCP-2 structure during cultivation (Table 2).

---

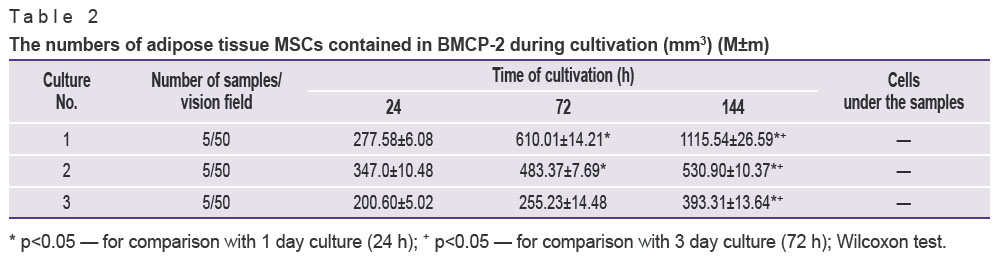

Table 2. The numbers of adipose tissue MSCs contained in BMCP-2 during cultivation (mm3) (M±m)

---

Table 2 shows that the number of cells in BMCP-2 changed similarly in all three series and did not vary between the MSC lines used to form the construct.

As the MSCs become an integral part of the final BMCP-2 product, their isolation requires a complete destruction of the non-cellular component by using the aggressive enzymatic treatment (trypsin, collagenase) with a high risk of cell loss or damage. The developed method [8] though made it possible to conduct a quantitative analysis of the cellular component without cell destruction and with high accuracy of the results.

Cell staining with fluorescent membrane dyes to assess the morphology of MSCs inside the BMCP structure. Three days after the structure formation, cell expansion with “ejection” of processes and single intercellular contacts were registered within the BMCP-2 using phase contrast microscopy (Leica DMI 3000B, inverted microscope, Germany) (Figure 4 (a)). After 144 h (6 days) of BMCP-2 cultivation, we additionally observed the formation of intercellular contacts and an entire cell network (Figure 4 (b)). Staining with the fluorochrome Chromophilic Tracers-DiO DiOC14(3) Hydroxyethanesulfonate (green) confirmed the cell viability at this time period (Figure 4 (c), (d)); the cells were evenly spread throughout the BMCP-2 structure, thus forming a cell network. At ×200 magnification (Figure 4 (e)), fusiform, fibroblast-like cells with pronounced processes and intercellular contacts were well visualized.

---

Figure 4. MSCs in the structure of BMCP-2: (a), (b) phase contrast microscopy; (c)–(e) fluorescence microscopy; MSCs are stained with Lipophilic Tracers-DiO membrane green dye (excitation — 477 nm, emission — 525 nm); (a), (c) 24 h after the formation of BMCP-2: MSCs straighten and form processes; (a) ×100; (c) ×40; (b), (d) 120 h after the formation of BMCP-2: a recently formed cell network is seen (×40); (e) 120 h of cultivation (×100); spindle-shaped cells and intercellular contacts can be seen (arrows)

---

The results indicated that the adipose tissue MSCs preserved their viability and typical fibroblast-like morphology both on the BMCP-1 surface and in the BMCP-2 structure, although the cell distribution patterns differed between these two products.

Mesenchymal stem cells are substrate-dependent and, like other such cells, upon passage and separation from the matrix, they grow as a suspension rather than a monolayer. In this case, the cells change their morphology and become round-shaped. As a result, to assess the morphology of the cellular component of BMCP, which contains substrate-dependent cells, it would be necessary to cultivate them on a plastic surface for at least 24 h after isolation. In this study though, the fluorescence microscopy and the vital dyes made it possible to visualize and characterize the cell component of BMCP using a small fragment of the sample without destroying its structure. In addition, this approach allowed us to evaluate not only the viability, but also the morphology of the cells and their distribution on the surface and/or inside the BMCP structure.

Determination of the functional (secretory) activity of the cellular component of BMCP. In three series of experimentation with BMCP-1, we used three different lines of MSCs with different activities of the VEGF secretion. Nevertheless, in all three series, we observed a significant increase in the levels of VEGF-A in the growth medium. Moreover, the amount of protein determined during the cell growth on the surface of the G-derm plate (as part of BMCP-1) was significantly higher (p<0.05, Wilcoxon test) than that in cells grown on the plastic surface (Table 3).

---

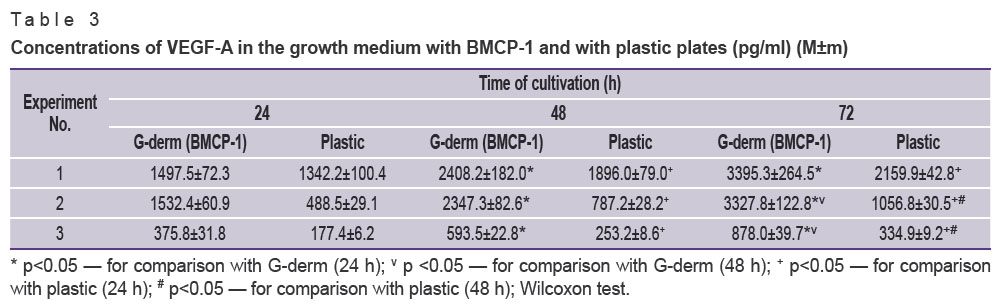

Table 3. Concentrations of VEGF-A in the growth medium with BMCP-1 and with plastic plates (pg/ml) (M±m)

---

The similar experiments with the BMCP-2 demonstrated a gradual increase in VEGF-A in the growth medium starting from the 3^rd day (72 h) in all series of the study (Table 4). In the control series (cell-free scaffolds), no changes in VEGF-A were found.

---

Table 4. Concentrations of VEGF-A in the growth medium with BMCP-2 (pg/ml) (M±m)

---

According to these results, adipose tissue MSCs maintained the functional activity and VEGF-A secretion in both the BMCP-1 and BMCP-2 structures.

VEGF is a key angiogenic factor [9], which, like other growth factors, is synthesized by MSCs both in vitro and in vivo [10, 11]. In addition to stimulating the angiogenesis, this protein triggers the proliferation and migration of endothelial cells and increases the permeability of blood vessels. In different BMCPs, non-cellular components have different physical characteristics (e.g., stiffness), which may affect the ability of MSCs to secrete VEGF [12]. Accordingly, the VEGF-A level in adipose tissue MSCs can serve as a criterium for assessing the quality of a BMCP, specifically, the preservation of the functional activity of MSCs contained in its structure. Using the proposed approach, we were able to evaluate the secretory activity of adipose tissue MSCs held inside the BMCP structure without its destruction and by using a minute volume of the growth medium. It should be noted that the protein concentration in the growth medium can characterize the functional activity of MSCs as part of BMPC after cryopreservation, which is most likely to be required in clinical practice.

Identification of the cell line. Before starting the BMPC forming procedures, we made sure that the phenotype of the MSC lines met the ISCT requirements: the mesenchymal cell markers CD90, CD105, CD73, and CD44 were expressed by more than 95% of cells, and there was no expression of CD45, CD34, CD14, or CD HLA-DR.

We then found that the MSC phenotype changed after the cells were removed from the G-derm plate surface 48 h after the formation of BMCP-1 (Figure 5).

---

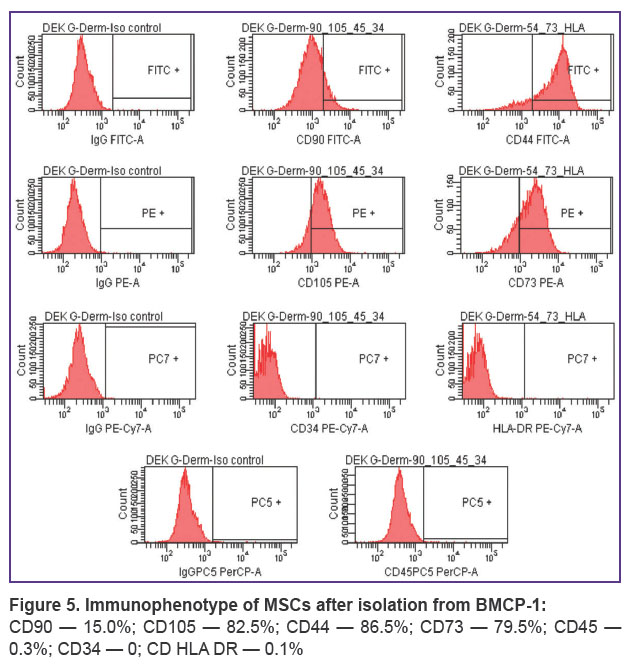

Figure 5. Immunophenotype of MSCs after isolation from BMCP-1: CD90 — 15.0%; CD105 — 82.5%; CD44 — 86.5%; CD73 — 79.5%; CD45 — 0.3%; CD34 — 0; CD HLA DR — 0.1%

---

After the separation from the BMCP-1, a significant decrease in the number of CD90⁺ cells (15–80%) and a slight decrease in the number of CD73⁺ and CD105⁺ cells were found. When cultured on the plastic surface under the standard conditions, cells isolated from BMCP-1 had their phenotype restored with a high proportion of specific markers CD90 — 99%, CD105 — 99%, CD73 — 99%, CD44 — 99% and with a low proportion of CD45 — 0.5%, CD34 — 0, and CD HLA-DR — 0.

MSCs cultured as part of BMCP-2 were isolated using collagenase treatment, which resulted in a significant (from 60 to 80%) loss in CD90⁺ cells but no change in CD73⁺ and CD105⁺ cells (Figure 6).

---

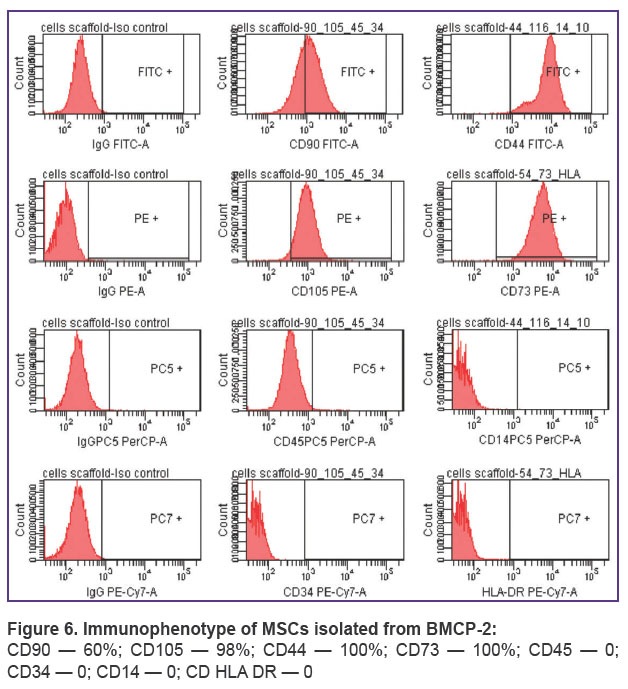

Figure 6. Immunophenotype of MSCs isolated from BMCP-2: CD90 — 60%; CD105 — 98%; CD44 — 100%; CD73 — 100%; CD45 — 0; CD34 — 0; CD14 — 0; CD HLA DR — 0

---

After culturing for 96 h on the plastic, restoration of 95–96% of CD90⁺ cells was noted.

It can be assumed that the trend toward a decrease in the number of the marker-specific MSCs cultured in the medium-floating matrices may represent a response to the changed culture conditions during the transition from a 2D plate culture to an organotypic 3D culture incorporated in the BMCP [13]. This hypothesis is supported by the fact that within 1–3 days after being transferred from BMCP to regular plastic plates, the cells return to their original phenotype.

It should be noted that the development of MSCs as the cellular components of skin replacement BMCPs is one of the priority areas of today’s regenerative medicine: a number of MSC-based products currently undergo preclinical and clinical studies [14, 15]. Within this context, the development of relevant assessment methods for MSCs as parts of various constructs is of growing importance. The present study showed, among other results, that two different BMPs having similar cellular compositions required somewhat different approaches to characterize their cellular components.

Conclusion

In this study, we propose an approach to assessing the quality of biomedical cell products while considering their production and transportation as well as their cellular and non-cellular composition. Specifically, we conclude that for non-transparent and/or multi-component products, it is advisable to choose the quality control methods involving a minimal treatment by proteolytic enzymes.

Research funding. This study was supported by the Ministry of Education and Science of the Russian Federation within the framework of a research program “Development of manufacturing, storage and application technologies for biomedical cell products for wound healing”; the unique project identifier RFMEFI61017X0012.

Conflict of interest. The authors have no conflict of interest.
