Combined Administration of Nitric Oxide and Hydrogen into Extracorporeal Circuit of Cardiopulmonary Bypass as a Method of Organ Protection during Cardiac Surgery

Pichugin V.V., Derugina A.V., Domnin S.E., Shirshin A.S., Fedorov S.A., Buranov S.N., Jourko S.A., Ryazanov M.V., Danilova D.A., Brichkin Yu.D.

Key words: nitric oxide; hydrogen; cardiopulmonary bypass; heart surgery.

The aim is to study the effect of combined introduction of nitric oxide and hydrogen into the extracorporeal circuit of cardiopulmonary bypass (CPB) for antioxidant activity and organ damage during cardiac surgery.

Materials and Methods. The study included 91 patients who underwent heart surgery under CPB. The patients were randomized into 3 groups: group 1 comprised 30 patients (control); group 2 consisted of 33 patients with an isolated supply of nitric oxide (40 ppm) to the extracorporeal circuit; group 3 included 28 patients with a combined supply of nitric oxide (40 ppm) and hydrogen (1.2 ppm) into the extracorporeal circuit. The intensity of lipid peroxidation processes was studied by the content of diene conjugates (DC), triene conjugates (TC), Schiff bases (SB) in blood plasma; erythrocyte aggregation was also examined. The studies were carried out at the following stages: stage 1 (initial) — after induction of anesthesia; stage 2 — before CPB; stage 3 — 5 min after CPB initiation; stage 4 — at the 30th minute of CPB; stage 5 — at the 60th minute of CPB; stage 6 — at the 90th minute of CPB; stage 7 — at CPB termination; stage 8 — at the end of the operation.

Results. The content of DC increased statistically significantly at the 90th minute of CPB to 1.093±0.573 rel. units (M±SD) in patients of group 1; to 0.322±0.047 rel. units in group 2; to 0.287±0.003 rel. units in group 3, while the DC content was statistically significantly lower in patients of groups 2 and 3 compared to group 1. A statistically significant increase in the content of TC compared to the initial value was observed at the 90th minute of CPB in group 1 (up to 0.334±0.114 rel. units), while the content of TC was statistically significantly lower in patients of groups 2 and 3. A statistically significant growth in the content of SB occurred at the 90th minute of CPB in patients of group 1 up to 33.324±15.640 rel. units. This indicator was statistically significantly lower in groups 2 and 3 relative to the patients of group 1. The dynamics of erythrocyte aggregation in patients of group 1 showed statistically significant growth of this indicator from the start of CPB to the end of the operation (from 44.8±1.4 to 73.1±2.2%). The statistically significant difference from the indicator at the beginning of the operation started at the 30th minute of CPB and lasted until the end of the operation. In patients of group 2, it decreased statistically significantly during CPB (from 56.5±2.3% before the CPB initiation to 47.4±1.2% at the CPB termination); in patients of group 3, it was decreasing from the 60th minute of CPB to the end of the operation and was statistically significantly lower than in patients of both groups 1 and 2. No postoperative complications were noted (acute heart failure, acute respiratory failure, multiple organ failure) in patients of groups 2 and 3. A statistically significant decrease in both the duration of mechanical ventilation and stay in the intensive care unit was registered in group 3 compared to group 2.

Conclusion. The combined use of gaseous nitric oxide and hydrogen during CPB allowed a statistically significant decrease in the level of activation of lipid peroxidation and erythrocyte aggregation, which ensured a higher level of organ protection during cardiac surgery, faster activation of patients, and a shorter stay in the intensive care unit.


Introduction

The use of cardiopulmonary bypass (CPB) is associated with the activation of lipid peroxidation (LPO) of biomembranes where oxygen free radicals play an inducing role. The LPO products are capable of damaging the cell energy apparatus, dissociating the respiration-coupled oxidative phosphorylation, changing the activity of the membrane-linked enzymes, increasing the permeability of cellular membranes, impairing the systems of cell regulation and division, i.e. can cause systemic damage to a cell [1–3].

It is known that there are two ways of oxygen utilization in a cell — by oxidase and oxygenase enzymes. In the first case, oxygen is reduced to the water molecule on mitochondrial respiratory chains; in the second case, it forms reactive oxygen species (ROS) which are extremely active, capable of damaging cellular structures either directly or indirectly through activation of the LPO processes. Any extreme impact (for example, surgical intervention) causes the organism to respond first by the increased intensity of metabolism facilitating the adaptation to new conditions. If the load exceeds protection capability, failure occurs with the development of the oxidative stress. Failure of the organism to neutralize the generated ROS results in the oxidative damage to organs and tissues [4, 5].

Extensive surgical intervention, impairing normal oxygen consumption and energy generation, triggers a cascade of pathophysiological reactions, the basis of which is an alteration of the free-radical oxidation processes, i.e. the dynamic balance is shifted towards the stimulation of ROS generation and accumulation of underoxidized toxic products intensifying the damaging effect [6].

Intensification of free radical processes plays an important role in the pathogenesis of intraorgan injuries in the operations under CPB. In the course of surgical intervention, tissues are subject to hypoxia and reoxygenation, which causes activation of the LPO processes and changes in the antioxidative properties of blood [7]. Oxidative injuries of membranes caused by the enhanced ROS generation occupy an important place among ischemic and reperfusion injuries, influence essentially the outcome of the operation, and may occur immediately both after CPB and in the early postoperative period [8].

Nitric oxide possesses antioxidant effect by inhibiting oxidative reactions, increasing the activity of antioxidant enzymes and expression of the genes encoding them. Nitric oxide can slow down lipid peroxidation acting as a scavenger of the oxygen radicals. Therefore, the interaction between superoxide anion and nitric oxide may be a biologically important way to detoxification of potentially dangerous reactive oxygen species [9]. Besides, molecular hydrogen is known to bind free radicals of hydroxyl and peroxynitrite. The action of these radicals on the critically important biomolecules of nucleic acids, lipoproteins of the cell membranes, and cellular organelles leads to the damage of myocardium during operations with CPB [10]. Presently, there are no clinical investigations devoted to the combined application of nitric oxide and hydrogen during the operations with CPB, which determines the significance of the research.

The aim is to study the effect of combined introduction of nitric oxide and hydrogen into the cardiopulmonary bypass circuit for antioxidant activity and organ damage during cardiac surgery.

Materials and Methods

The course of intra- and postoperative period has been analyzed in 91 patients, who undergone operations on the heart under CPB (operations on the heart valves, aortocoronary bypass + correction of valvular pathology). The study was approved by the Ethical Committee of the Specialized Cardiosurgical Clinical Hospital named after Academician B.A. Korolev (Nizhny Novgorod, Russia) and complies with the Declaration of Helsinki (2013). Informed written consent was obtained from each patient.

The patients were randomly divided into 3 groups: group 1 comprised 30 patients (control); group 2 consisted of 33 patients with an isolated supply of nitric oxide (40 ppm) to the extracorporeal circuit during CPB; group 3 included 28 patients with a combined supply of nitric oxide (40 ppm) and hydrogen (1.2 ppm) into the extracorporeal circuit during CPB. The description of patients is presented in Table 1. No statistically significant differences between the groups by gender, age, and severity of the state have been found (p>0.05).

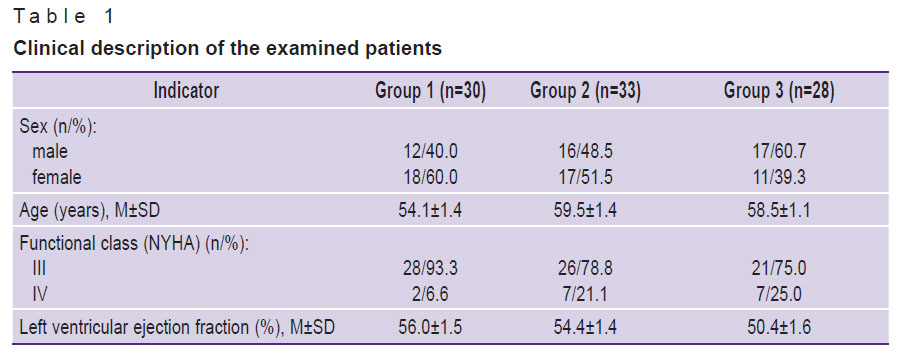

Table 1. Clinical description of the examined patients


All patients have been operated on the heart valves or undergone combined operations on the valves and coronary arteries. Normothermic CPB was used in all operations, and in order to protect the myocardium, a combined crystalloid pharmaco-cold cardioplegia using Custadiol solution (Germany) was applied. The duration of CPB (M±SD) was 100.30±30.25 min in group 1; 124.60±39.90 min in group 2; 117.40±45.05 min in group 3; aortic cross-clamp time was equal to 75.6±23.1, 93.1±31.9, and 89.3±31.8 min, respectively. Statistically significant differences between the groups have not been found.

In patients of group 1 (control), CPB was carried out according to the protocol adopted at the Specialized Cardiosurgical Clinical Hospital named after Academician B.A. Korolev. Gaseous nitric oxide (40 ppm) for patients of group 2 was supplied to the line delivering gas to the oxygenator of the extracorporeal circulation system (ECS). The Tianox apparatus (RFNC VNIIEF, Russia) was used as a generator of gaseous nitric oxide; nitric oxide dosing was implemented by means of an in-line monitor of the generating device. Nitric oxide delivery to the CPB circuit was started when the rated perfusion capacity was reached and continued to CPB termination. Patients of group 3 were supplied with a combination of gaseous nitric oxide (40 ppm) and molecular hydrogen (1.2 ppm) to the line of delivering gases to the ECS oxygenator. The Tianox apparatus was used as a generator of gaseous nitric oxide, hydrogen was generated using the BozonH2/O3 UV control apparatus (Econica Medical Engineering, Ukraine). The in-line monitors of the generating systems were used for dosing the gases. The connection diagram of gas supply to the extracorporeal circuit is presented in the Figure.

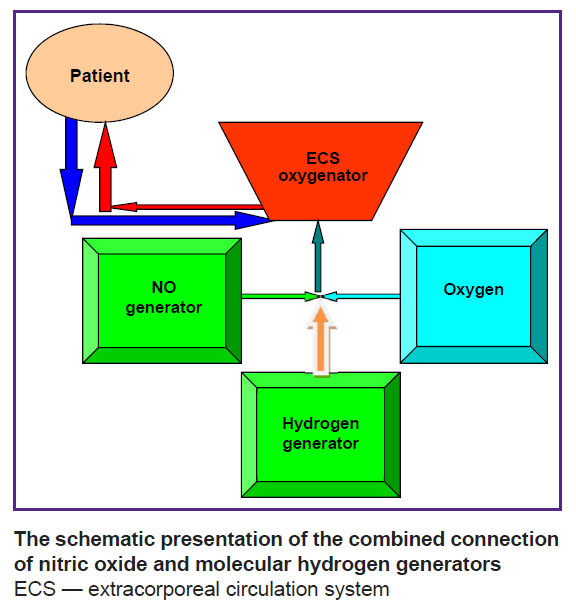

The schematic presentation of the combined connection of nitric oxide and molecular hydrogen generators

ECS — extracorporeal circulation system

Once the rated perfusion flow was reached, 40 ppm of nitric oxide and 1.2 ppm of hydrogen were supplied to the extracorporeal circuit. This protocol of nitric oxide and hydrogen supply was maintained throughout the CPB application. Gas delivery to the extracorporeal circulation was stopped after the recovery of effective cardiac activity 5 min before CPB termination.

The intensity of LPO processes was studied by the content of diene conjugates (DC), triene conjugates (TC), Schiff bases (SB) in blood plasma; erythrocyte aggregation was also examined. The studies were carried out at the following stages: stage 1 (initial) — after induction of anesthesia; stage 2 — before CPB; stage 3 — 5 min after CPB initiation; stage 4 — at the 30th minute of CPB; stage 5 — at the 60th minute of CPB; stage 6 — at the 90th minute of CPB; stage 7 — at CPB termination; stage 8 — at the end of the operation. The content of DC, TC, and SB in plasma was determined using I.A. Volchegorsky’s method (1989). Heptane-isopropanol mixture (1:1) was added to blood plasma, shaken, and supplemented with 1 ml of an aqueous HCL solution (pH2) and 2 ml of heptane. After the resulting mixture was settled and stratified into phases, optical densities (E) were measured on SF-2000 spectrophotometer (OKB Spectr, Russia), evaluating each phase at the following wavelengths: 220 nm (absorption of isolated double bonds), 232 nm (DC absorption), 278 nm (TC absorption), 400 nm (SB absorption). In the process of the study, the preservation of erythrocytes in patients of groups 2 and 3 was determined by the aggregation properties of erythrocytes. Erythrocyte aggregation was examined using optical microscopy technique by counting single erythrocytes and their aggregates [11]. The solution of dextran blue T-2000 in the dose of 20 mg/ml (GE HealthCare, USA) in Tris-HCl buffer (pH 7.4) was used as a stimulator of aggregation. The washed erythrocytes were diluted with the dexran solution (1:10 by volume) and the number of non-aggregated erythrocytes was counted in the Goryaev chamber. A total number of erythrocytes in a sample was calculated in isotonic NaCl solution. The level of aggregation (A) was estimated by the formula:

A=100% – (the number of free (non-aggregated) erythrocytes × total number of erythrocytes–1 × 100%).

Additionally, the course of the postoperative period was studied as a clinical indicator.

Statistical analysis was performed using Microsoft Excel 2003 and Statistica 6.0 software. Calculations of the Fisher’s exact criterion for fourfold tables were done on-line on the https://medstatistic.ru/ site. The character of data distribution was assessed using Kolmogorov–Smirnov and Shapiro–Wilk tests since these tests give mainly similar but sometimes different statistics. For the statistical analysis of the data following the law of normal distribution, we used the ANOVA analysis and Dunnett’s test taking into consideration the effect of multiple comparisons with the control group [12]. The results of all tests were considered statistically significant at p<0.05.

Results

The dynamics of the DC level during the operation is presented in Table 2. Patients of group 1 did not show any statistically significant changes of this indicator before CPB, but its statistically significant rise was observed at the 90th minute of CPB (1.093±0.573 rel. units) with a further decrease by the end of the operation (0.336±0.041 rel. units). The dynamics of the DC level in group 2 also reflected absence of statistically significant changes at all stages of the operation relative to the initial value. Notably that the DC level in group 2 at the 90th minute of CPB was 3 times lower than in patients of group 1. The dynamics of the DC level in patients of group 3 demonstrated absence of statistically significant changes before CPB and also its smooth decrease before perfusion (0.257±0.043 rel. units) and at the end of the operation (0.208±0.050 rel. units). The content of DC at the 90th minute of CPB was statistically significantly lower in patients of group 3 than in group 1.

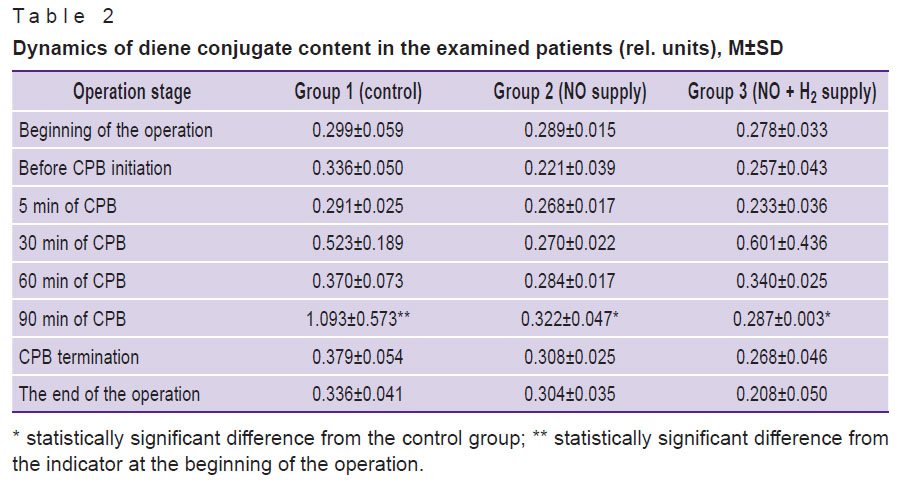

Table 2. Dynamics of diene conjugate content in the examined patients (rel. units), M±SD


The dynamics of the TC level during the operation is presented in Table 3. In patients of group 1, there were no statistically significant changes of this indicator before CPB, but its statistically significant growth (from 0.091±0.013 to 0.334±0.114 rel. units) was observed at the 90th minute of CPB, with a further decrease by the end of the operation (up to 0.143±0.092 rel. units). In patients of group 2, the dynamics of the TC level reflected the absence of statistically significant changes of this parameter during the operation: its concentration prior to CPB was 0.128±0.056 rel. units; then, it raised to 0.131±0.044 rel. units by the 90th minute of CPB and returned to the initial values at the end of the operation (0.080±0.015 rel. units). It should be noted that the TC level was statistically significantly lower at the 90th minute of CPB in patients of group 2 than in group 1. The TC level at the 30th minute in patients of group 3 was statistically significantly higher than in group 1, but by the 90th minute of CPB there was a statistically significant decrease in this indicator (0.110±0.020 rel. units) in comparison with group 1.

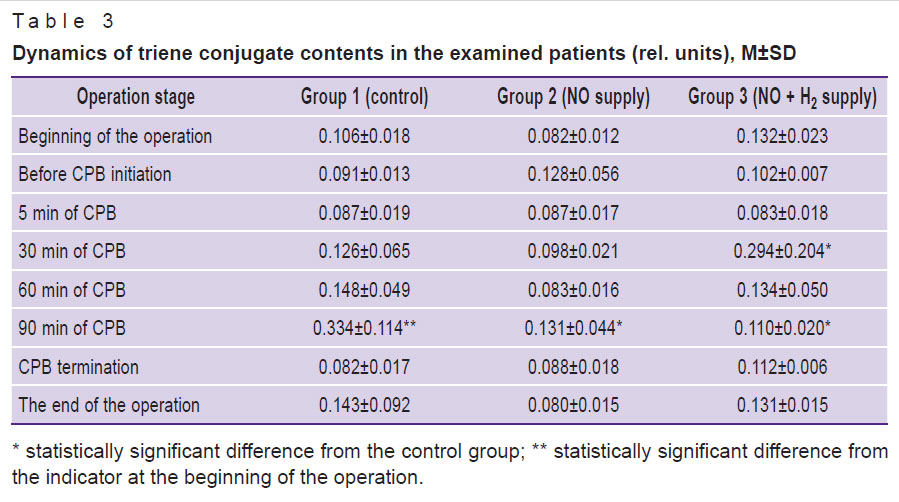

Table 3. Dynamics of triene conjugate contents in the examined patients (rel. units), M±SD


The dynamics of the SB level during the operation is presented in Table 4. In patients of group 1, there were no statistically significant changes of this indicator before CPB and its statistically significant growth (from 15.190±4.715 to 33.324±15.640 rel. units) was noted at the 90th minute of CPB with a further decrease by the end of the operation to the value of 8.204±1.948 rel. units. The dynamics of the SB level in patients of group 2 was characterized by the absence of statistically significant changes of this indicator throughout the operation. At the same time, the SB level was statistically significantly lower (11.483±4.688 rel. units) at the 90th minute of CPB relative to the patients of group 1. The SB level in group 3 was statistically significantly lower than that in group 1 at the 60th, 90th minutes, and further up to the end of the operation.

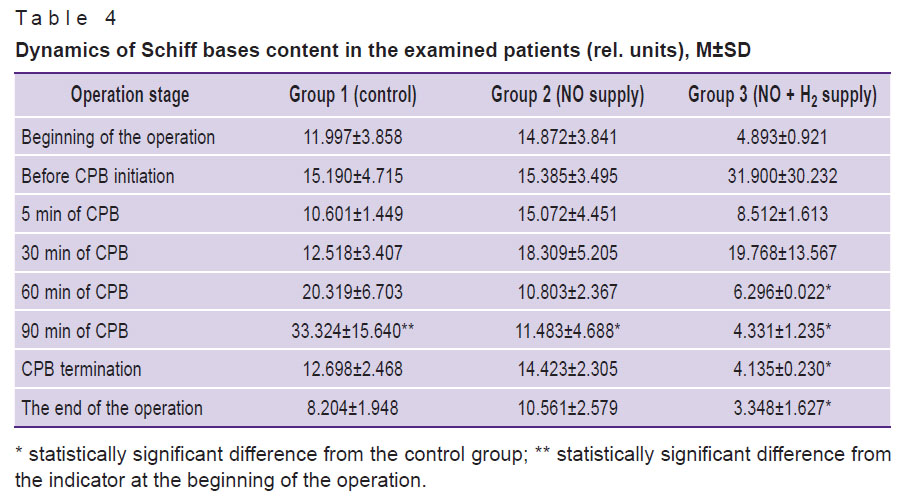

pichugin-table-4.jpg Table 4. Dynamics of Schiff bases content in the examined patients (rel. units), M±SD

Changes of erythrocyte aggregation during the operation are presented in Table 5. In patients of group 1, there were no statistically significant changes in this parameter before CPB, but beginning with the 30th minute of CPB and up to the end of the operation, this indicator was observed to grow from 44.8±1.4 to 73.1±2.2%. Erythrocyte aggregation in patients of group 2 decreased during CPB from 56.5±2.3% before the beginning to 47.4±1.2% at its termination. Erythrocyte aggregation in patients of group 3 was decreasing throughout the operation and was statistically significantly lower than in patients of groups 1 and 2 beginning from the 30th minute of CPB and to the end of the operation. It should be noted that at the beginning of the operation, erythrocyte aggregation in group 3 was statistically significantly higher than in group 1. A statistically significant decrease in erythrocyte aggregation in patients of group 3 provided better microcirculation and oxygen supply to the organs and tissues in the process of CPB and at its termination.

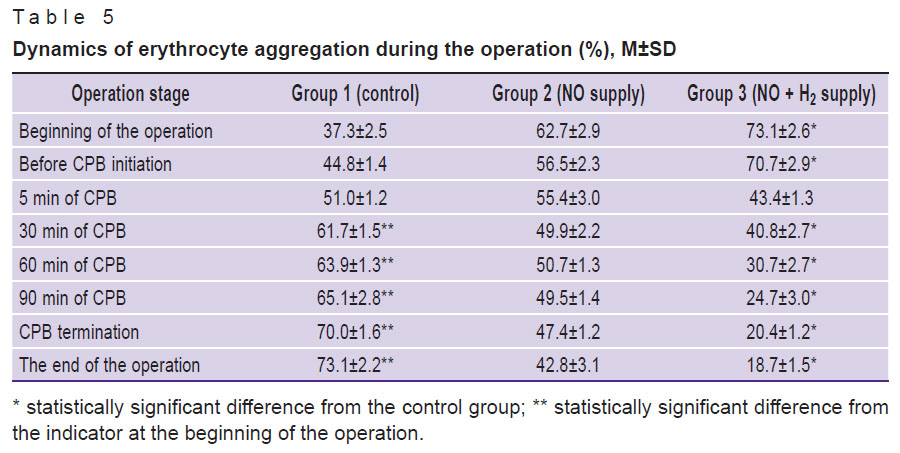

pichugin-table-5.jpg Table 5. Dynamics of erythrocyte aggregation during the operation (%), M±SD

Clinical outcomes are presented in Table 6. Acute cardiac failure rate in patients of groups 2 and 3 was statistically significantly (Fisher’s exact test) lower (p=0.046) relative to group 1. Statistically significant differences in the acute respiratory and multiple organ failures rate have not been detected between the groups 2 and 3 compared to group 1. Besides, no complications in the early postoperative period were observed in patients of group 2 and 3.

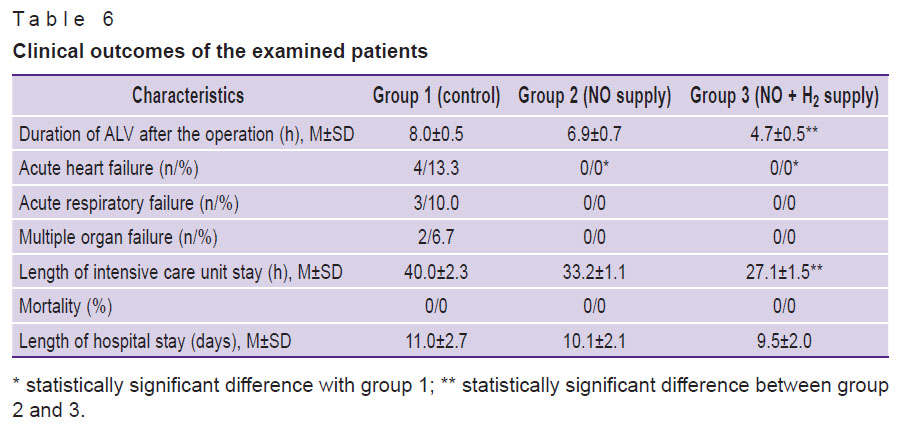

Table 6. Clinical outcomes of the examined patients


As follows from the data given in Table 6, patients of group 3 were noted to have statistically significantly shorter duration of artificial lung ventilation after the operation and, therefore, a shorter stay in the intensive care unit (ICU) in comparison with group 2.

Thus, a combined application of gaseous nitric oxide and hydrogen during CPB allowed us to statistically significantly reduce the level of LPO activation and erythrocyte aggregation during the operation and CPB, which provided a higher level of organ protection in cardiac-surgical intervention, faster patient activation, and a shorter ICU stay.

Discussion

The effect of the isolated application of nitric oxide and its combination with hydrogen has been evaluated in comparison with the control group, which was supported in compliance with standard protocols not including these agents.

The effective use of isolated introduction of gaseous nitric oxide to the CPB circuit has been noted in a number of publications in recent years [13–15]. However, the emphasis was made there on the cardioprotective effect of the preparation during cardiac-surgical intervention, but the influence of nitric oxide on the LPO processes and erythrocyte condition has not been investigated, although a systemic damaging effect of the LPO products on a cell is well known. The data obtained by us in the process of the study demonstrate the reduction of the LPO indicators during CPB caused by the isolated use of gaseous nitric oxide. Nitric oxide also significantly influenced the condition of erythrocytes reducing their aggregation in the course of the operation under CPB.

Previous clinical studies devoted to the isolated application of molecular hydrogen in cardiac surgery are limited to its inhalation application at the stages before or after CPB. The analysis of the results of venous and arterial blood tests has shown that the decrease in LPO product concentration in the postoperative period in the group of patients receiving hydrogen inhalations was associated with a direct antioxidative action of the molecular hydrogen and its possible indirect impact by modulating the concentration of reactive oxygen species being natural signaling messengers important for the regulation of cell activity [10]. Besides, the application of molecular hydrogen has been shown to maintain the ATP concentration and to increase statistically significantly the 2,3-DPG content in arterial blood erythrocytes relative to the control group [16]. Investigations concerning the supply of molecular hydrogen to the CPB circuit, the assessment of its effect on the LPO processes, and the erythrocyte condition have not been performed so far.

The data published by us are a pilot study devoted to a combined application of two gases, nitric oxide and molecular hydrogen delivered simultaneously to the CPB machine circuit during cardiac-surgical interventions. The combined application of these agents has been shown to influence effectively not only the decrease in the LPO processes and the erythrocyte condition but clinical outcomes of the operation as well. Based on the results of this study, a patent application for the invention No.2022130057 “The method of preventing organ damage while conducting intraoperative cardiopulmonary bypass” of November 18, 2022 was filed.

Conclusion

The conducted study has shown that the combined use of gaseous nitric oxide and hydrogen during CPB allowed us to statistically significantly decrease the level of activation of lipid peroxidation and erythrocyte aggregation during the operation, which ensured a higher level of organ protection during cardiac surgery, faster activation of patients, and a shorter stay in the ICU.

Study funding. The work was not supported by any financial sources.

Conflicts of interest. The authors have no conflicts of interest to declare.


References

  1. Charnaia M.A., Morozov Iu.A., Uriuzhnikov V.V., Goncharova A.V., Paliulina M.V. Myocardial metabolism in operations under parallel artificial circulation. Kardiologiya i serdechno-sosudistaya khirurgiya 2012; 5(3): 68–70.
  2. Andrianova M.Yu., Palyulina M.V., Morozov Yu.A., Mil’chakov V.I., Charnaya M.A., Gladysheva V.G. Lipid peroxidation in the early postoperative period during reconstructive operations on the aorta. Vestnik intensivnoj terapii 2007; 1: 76–77.
  3. Zatsepina N.E. Vliyanie iskusstvennogo krovoobrashcheniya na perekisnoe okislenie lipidov. Avtoref. dis. ... kand. med. nauk [Influence of cardiopulmonary bypass on lipid peroxidation. PhD Thesis]. Moscow; 2001.
  4. Bilenko M.V. Ishemicheskie i reperfuzionnye povrezhdeniya organov (molekulyarnye mekhanizmy, puti preduprezhdeniya i lecheniya) [Ischemic and reperfusion injuries of organs (molecular mechanisms, ways of prevention and treatment)]. Moscow: Meditsina; 1989; p. 368.
  5. Garden D.L., Granger D.N. Pathophysiology of ischaemia-reperfusion injury. J Pathology 2000; 190(3): 255–266,  https://doi.org/10.1002/(sici)1096-9896 (200002)190:3255::aid-path5263.0.co;2-6.
  6. Manso C.F. Ischemia, reperfusion and oxygen free radicals. Rev Port Cardiol 1992; 11(11): 997–998.
  7. Prasad K., Kalra J., Bharadwaj B., Chaudhary A.K. Increased oxygen free radical activity in patients on cardiopulmonary bypass undergoing aortocoronary bypass surgery. Am Heart J 1992; 123(1): 37–45, https://doi.org/10.1016/0002-8703(92)90744-g.
  8. Asimakopoulos G., Smith P.L., Ratnatunga C.P., Taylor K.M. Lung injury and acute respiratory distress syndrome after cardiopulmonary bypass. Ann Thorac Surg 1999; 68(3): 1107–1115, https://doi.org/10.1016/s0003-4975(99)00781-x.
  9. Solovieva A.G., Kuznetsova V.L., Peretyagin S.P., Didenko N.V., Dudar A.I. Role of nitric oxide in processes of free radical oxidation. Vestnik Rossijskoj Voenno-medicinskoj akademii 2016; 1: 228–233.
  10. Danilova D.A., Brichkin Yu.D., Medvedev A.P., Pichugin V.V., Fedorov S.A., Taranov E.V., Nazarov E.I., Ryazanov M.V., Bolshukhin G.V., Deryugina A.V. Application of molecular hydrogen in heart surgery under cardiopulmonary bypass. Sovremennye tehnologii v medicine 2021; 13(1): 71, https://doi.org/10.17691/stm2021.13.1.09.
  11. Deryugina A.V., Krylova E.V., Luk’yanova L.D. Effect of ubiquinone-10 and succinic acid on functional characteristics of erythrocytes in rats with epinephrine toxemia. Bull Exp Biol Med 2006; 141: 414–415, https://doi.org/10.1007/s10517-006-0186-0.
  12. Olejnik S., Algina J. Generalized eta and omega squared statistics: measures of effect size for some common research designs. Psychological Methods 2003; 8(4): 434–447, https://doi.org/10.1037/1082-989X.8.4.434.
  13. Checchia P.A., Bronicki R.A., Muenzer J.T., Dixon D., Raithel S., Gandhi S.K., Huddleston C.B. Nitric oxide delivery during cardiopulmonary bypass reduces postoperative morbidity in children — a randomized trial. J Thorac Cardiovasc Surg 2013; 146(3): 530–536, https://doi.org/10.1016/j.jtcvs.2012.09.100.
  14. James C., Millar J., Horton S., Brizard C., Molesworth C., Butt W. Nitric oxide administration during paediatric cardiopulmonary bypass: a randomised controlled trial. Intensive Care Med 2016; 42(11): 1744–1752, https://doi.org/10.1007/s00134-016-4420-6.
  15. Kamenshchikov N.O., Mandel I.A., Podoksenov Y.K., Svirko Y.S., Lomivorotov V.V., Mikheev S.L., Kozlov B.N., Shipulin V.M., Nenakhova A.A., Anfinogenova Y.J. Nitric oxide provides myocardial protection when added to the cardiopulmonary bypass circuit during cardiac surgery: randomized trial. J Thorac Cardiovasc Surg 2019; 157(6): 2328–2336.e1, https://doi.org/10.1016/j.jtcvs.2018.08.117.
  16. Deryugina A.V., Danilova D.A., Brichkin Yu.D., Nazarov E.I., Medvedev A.P., Pichugin V.V., Makarov E.V., Taranov E.V., Fedorov S.A., Ivashchenko M.N. Possibilities of correcting the oxygen transport function of erythrocytes in cardiac surgery patients during operations with cardiopulmonary bypass. Bioradikaly i antioksidanty 2020; 7(3): 155–162.
